WS 410 (CMXGTAMDAXSC) (41DDAXSC793) - Craftsman String Trimmer General Assembly Parts Diagram

String Trimmer

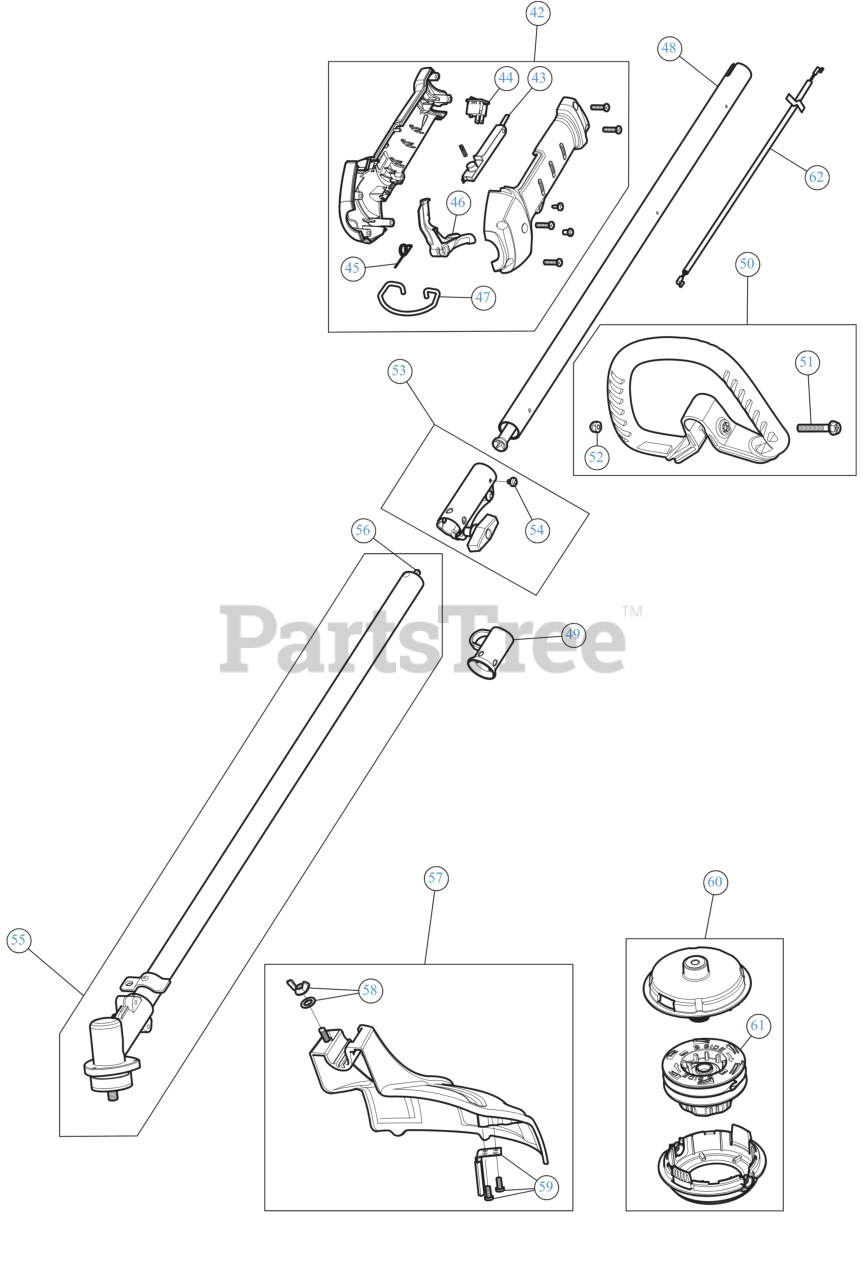

General Assembly Parts Diagram

  • Title

42

MTD 753-09888

THROTTLE GRIP ASM

Note: (Incl. 43 - 47)

$18.99

$

Usually ships in 3-6 days

0

43

MTD 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, only 4 left!

0

44

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

45

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 2 left!

0

46

MTD 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 16

0

47

MTD 732-06186

SHOULDER STRAP CLIP

$3.99

$

Usually ships in 3-6 days

0

48

MTD 753-06676

DRIVE SHAFT ASSEMBLY UP

$15.99

$

Usually ships in 3-6 days

0

49

MTD 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0

50

MTD 753-06039

HANDLE ASSEMBLY

Note: (Incl. 51 & 52)

$11.99

$

Usually ships in 3-6 days

0

51

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

52

MTD 2952

NUT 1/4-20 NYLOC

$2.99

$

In Stock, only 1 left!

0

53

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 54)

$7.49

$

In Stock, only 2 left!

0

54

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 7

0

55

MTD 611P05747

BOOM (W/GEARBOX)

Note: (Incl. 56)

$55.99

$

In Stock, only 1 left!

0

56

MTD 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

57

MTD 841-032093S

GUARD/BLADE ASM

Note: (Incl. 58 & 59)

$12.99

$

In Stock, only 3 left!

0

58

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

59

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

60

MTD 841-013303S

COMPLETE HEAD ASSEMBLY

Note: (Incl. 61)

$15.99

$

In Stock, only 2 left!

0

61

MTD 753-09365

BUMP KNOB

$4.49

$

In Stock, only 4 left!

0

62

MTD 746P04758

THROTTLE CABLE

$7.99

$

In Stock, only 1 left!

0
