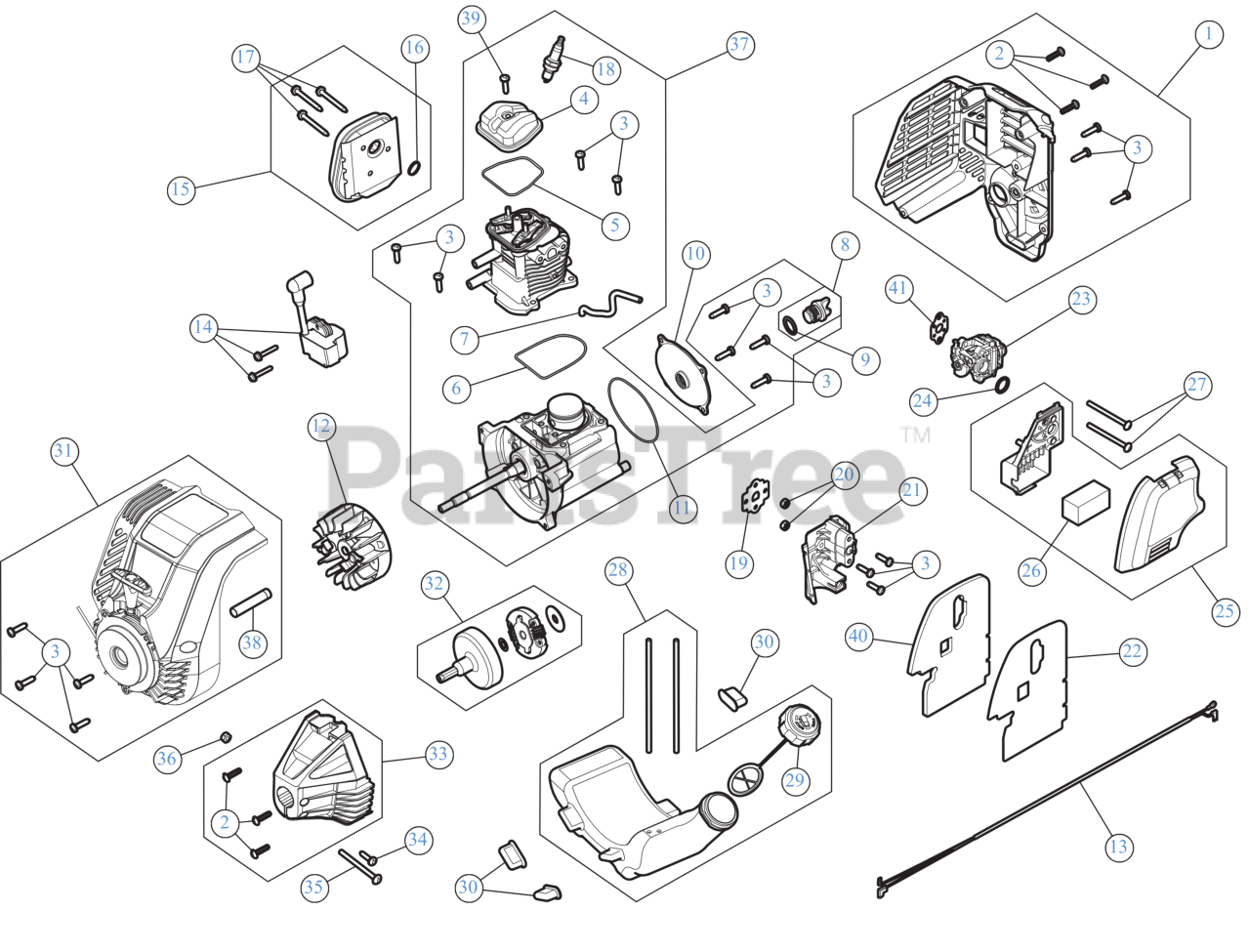

WS 410 (CMXGTAMDAXSC) (41BDAXSC793) - Craftsman String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-09884

REAR ENGINE COVER

Note: (Incl. 2 & 3)

$15.99

$

Usually ships in 3-6 days

0

2

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04604

SCREW M5-0.8 x 19

$4.49

$

In Stock, only 3 left!

0

4

MTD 753-05901

ROCKER COVER

$8.49

$

Usually ships in 3-6 days

0

5

MTD 753-05902

O-RING

$5.49

$

In Stock, only 2 left!

0

6

MTD 753-05910

O-RING CYL AC5

$3.49

$

In Stock, only 1 left!

0

7

MTD 791-182379

HOSE, BREATHER

$4.99

$

In Stock, only 1 left!

0

8

MTD 753-05408

OIL PLUG

Note: (Incl. 9)

$29.99

$

In Stock, only 1 left!

0

9

MTD 791-182290

RING, OIL PLUG (AC

$4.99

$

In Stock, Qty 11

0

10

MTD 841-020721S

CRANKCASE COVER

$13.99

$

In Stock, only 2 left!

0

11

MTD 753-05238

O-RING CRNKCSE CVR

$10.99

$

In Stock, only 1 left!

0

12

MTD 753-06221

FLYWHEEL ASSEMBLY AC3.1

$21.99

$

Usually ships in 3-6 days

0

13

MTD 753-05264

LEAD WIRES

$16.99

$

In Stock, only 1 left!

0

14

MTD 753-09885

MODULE ASM

$49.99

$

In Stock, only 1 left!

0

15

MTD 753-05245

MUFFLER ASSEMBLY

Note: (Incl. 16 & 17)

$92.99

$

Usually ships in 3-6 days

0

16

MTD 753-05244

GASKET/MUFFLER

$5.99

$

In Stock, Qty 8

0

17

MTD 710-04809

SCREW M5 x 44MM

$3.49

$

In Stock, only 1 left!

0

18

MTD 794-00082

SPARK PLUG 4 CYCL

$7.49

$

In Stock, Qty 13

0

19

MTD 753-05247

GASKET/INSULATOR

$

$

Not available

20

MTD 712-04099

NUT 10-32

$6.99

$

Usually ships in 3-6 days

0

21

MTD 841-020801S

CARB INSULATOR

$9.99

$

In Stock, only 1 left!

0

22

MTD 753-06948

GASKET

$4.99

$

In Stock, only 2 left!

0

23

MTD 751-16046-4

CARBURETOR

$38.99

$

In Stock, Qty 7

0

24

MTD 791-181751

O-RING

$4.49

$

In Stock, Qty 20+

0

25

MTD 841-034673S

AIR CLEANER

Note: (Incl. 26)

$7.49

$

In Stock, Qty 18

0

26

MTD 753-05254

AIR FILTER

$5.99

$

In Stock, only 3 left!

0

27

MTD 710-04517

SCREW 10-32X2.5

$5.49

$

In Stock, Qty 20+

0

28

MTD 753-06797

FUEL TANK ASSEMBLY

Note: (Incl. 29)

$21.99

$

In Stock, Qty 10

0

29

MTD 753-1229

FUEL CAP ASSEMBLY 43MM-6 W/O HOLE

$22.99

$

In Stock, only 1 left!

0

30

MTD 753-05259

FUEL TANK PADS

$6.99

$

In Stock, Qty 20+

0

31

MTD 753-09886

STARTER HOUSING

Note: (Incl. 3 & 38)

$37.99

$

In Stock, Qty 5

0

32

MTD 753-06281

CLUTCH ASSEMBLY

$22.99

$

In Stock, Qty 12

0

33

MTD 753-09887

CLUTCH COVER

Note: (Incl. 2)

$9.49

$

Usually ships in 3-6 days

0

34

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 5

0

35

MTD 9689A

SCREW

$11.99

$

Usually ships in 3-6 days

0

36

MTD 712-0161

HEX NUT

$4.49

$

In Stock, only 2 left!

0

37

MTD 841P020761S

SHORT BLOCK

Note: (Incl. 3-9, 11, 18 & 39)

$106.99

$

In Stock, only 1 left!

0

38

MTD 750-04434

SPACER :2.165"

$6.99

$

In Stock, only 4 left!

0

39

MTD 791-181025

SCR, VALVE COVER

$2.99

$

Usually ships in 3-6 days

0

40

MTD 753-06949

HEAT SHIELD

$5.99

$

In Stock, only 1 left!

0

41

MTD 791-181709

CARBURETOR GASKET

$4.99

$

In Stock, Qty 20+

0
