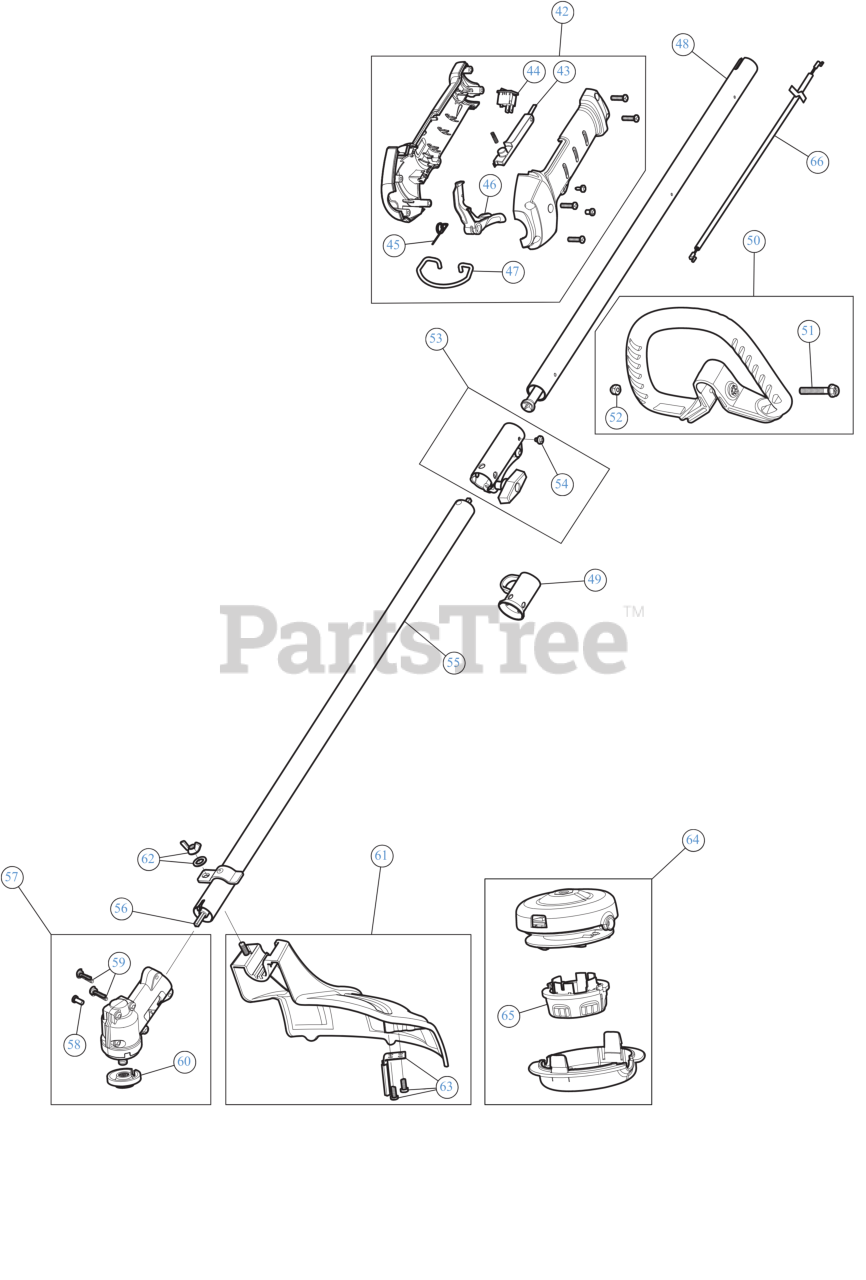

WS 405 (CMXGTAMD30SA) (41AD30SA791) - Craftsman String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title
42

MTD 753-09888

THROTTLE GRIP ASM

Note: (Incl. 43 - 47)

$18.99

$

In Stock, only 3 left!

0

43

MTD 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 14

0

44

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

45

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 3 left!

0

46

MTD 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 20+

0

47

MTD 732-06186

SHOULDER STRAP CLIP

$3.99

$

Usually ships in 3-6 days

0

48

MTD 753-06676

DRIVE SHAFT ASSEMBLY UP

$15.99

$

Usually ships in 3-6 days

0

49

MTD 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0

50

MTD 753-06039

HANDLE ASSEMBLY

Note: (Incl. 51 & 52)

$11.99

$

Usually ships in 3-6 days

0

51

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

52

MTD 2952

NUT 1/4-20 NYLOC

$2.99

$

In Stock, only 1 left!

0

53

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 54)

$7.49

$

In Stock, Qty 6

0

54

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, only 3 left!

0

55

MTD 841-031247S-1

LOWER BOOM ASSEMBLY

$25.99

$

In Stock, only 1 left!

0

56

MTD 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

57

MTD 753-08180

GEARBOX LCBC

Note: (Incl. 58 - 60)

$45.99

$

In Stock, only 3 left!

0

58

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 2 left!

0

59

MTD 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0

60

MTD 748-05052

CUTTING HEAD SPACER

$3.49

$

In Stock, Qty 20+

0

61

MTD 841-032093S

GUARD/BLADE ASM

Note: (Incl. 62 & 63)

$12.99

$

In Stock, Qty 9

0

62

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

63

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

64

MTD 841-034114S

CUTTING HEAD

Note: (Incl. 65)

$18.99

$

In Stock, only 2 left!

0

65

MTD 753-09365

BUMP KNOB

$4.49

$

In Stock, Qty 20+

0

66

MTD 746P04758

THROTTLE CABLE

$7.99

$

In Stock, only 1 left!

0
