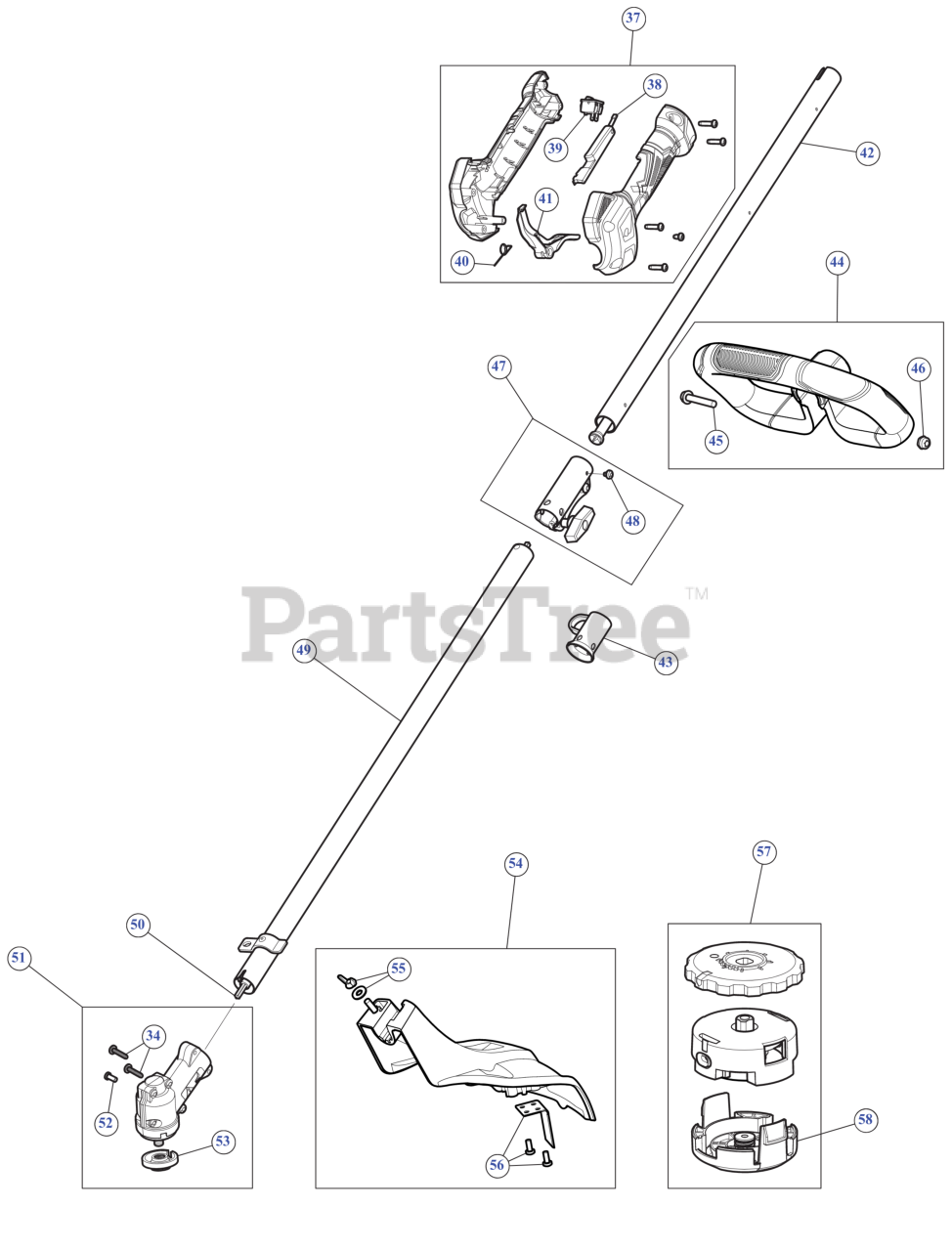

WS 2400 (CMXGTAMDSS27) (41BDSS27793) - Craftsman String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

37

MTD 753-11179

THROTTLE GRIP ASSEMBLY

Note: (Incl. 38 - 41)

$24.99

$

In Stock, only 1 left!

0

38

MTD 731-21872

THROTTLE LOCK LEVER

$2.99

$

Usually ships in 3-6 days

0

39

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 14

0

40

MTD 753-05007

TRIGGER SPRING

$5.49

$

Usually ships in 3-6 days

0

41

MTD 731-21871

THROTTLE TRIGGER

$8.49

$

Usually ships in 3-6 days

0

42

MTD 753-06682

BOOM ASSEMBLY UPR

$18.99

$

In Stock, only 2 left!

0

43

MTD 731-08926

HANGER

$2.99

$

In Stock, Qty 8

0

44

MTD 841-036081S

D HANDLE

Note: (Incl. 45 & 46)

$7.49

$

In Stock, only 1 left!

0

45

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

46

MTD 2952

NUT 1/4-20 NYLOC

$2.99

$

In Stock, only 1 left!

0

47

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 48)

$7.49

$

In Stock, Qty 9

0

48

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

Usually ships in 3-6 days

0

49

MTD 841-031247S-1

LOWER BOOM ASSEMBLY

Note: (Incl. 50)

$25.99

$

In Stock, only 1 left!

0

50

MTD 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

51

MTD 753-08180

GEARBOX LCBC

Note: (Incl. 34, 52 & 53)

$45.99

$

In Stock, only 1 left!

0

52

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

53

MTD 748-05052

CUTTING HEAD SPACER

$3.49

$

In Stock, Qty 10

0

54

MTD 841P032580S

GUARD/BLADE ASSEMBLY

Note: (Incl. 55 & 56)

$12.99

$

Usually ships in 3-6 days

0

55

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

56

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

Usually ships in 3-6 days

0

57

MTD 841-036276S

CUTTING HEAD

Note: (Incl. 58)

$16.99

$

Usually ships in 3-6 days

0

58

MTD 753-11344

CAP

$5.49

$

Usually ships in 3-6 days

0
