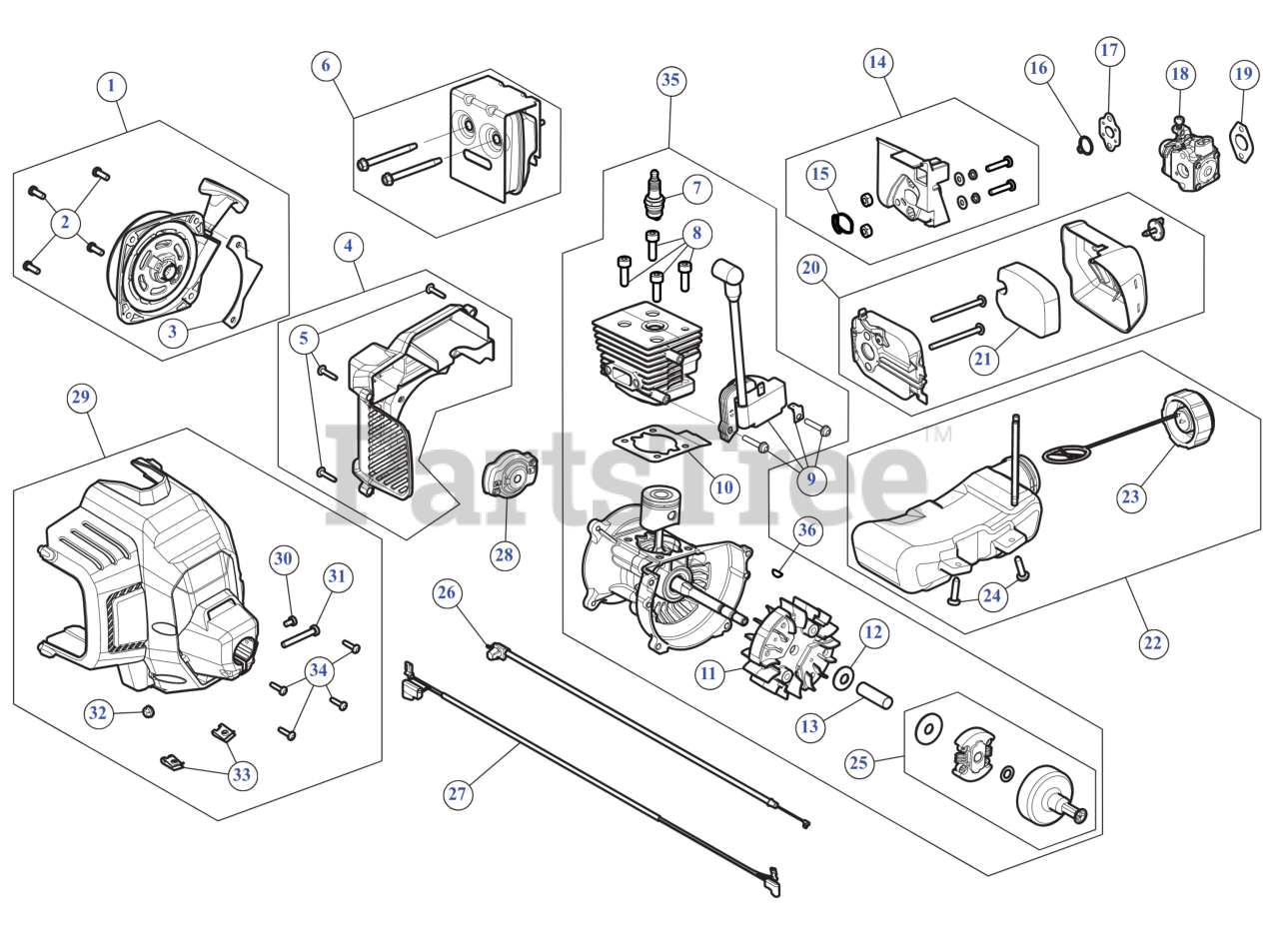

Engine Assembly Parts Diagram

  • Title

1

MTD 753-11177

STARTER ASSEMBLY

Note: (Incl. 2 & 3)

$20.99

$

In Stock, Qty 20+

0

2

MTD 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

MTD 753-06244

STARTER GUARD

Note: (Incl. 2)

$3.99

$

In Stock, only 1 left!

0

4

MTD 753-11178

REAR ENGINE COVER

Note: (Incl. 5)

$7.99

$

Usually ships in 3-6 days

0

5

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

6

MTD 753-08745

MUFFLER ASSEMBLY

$26.99

$

Usually ships in 3-6 days

0

7

MTD 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

8

MTD 710-04715

SCREW 1/4 x 20 x .8125

$6.99

$

Usually ships in 3-6 days

0

9

MTD 753-06763

MODULE 27CC DIG

$27.99

$

In Stock, only 2 left!

0

10

MTD 753-06827

GASKET CYL

$3.49

$

In Stock, only 1 left!

0

11

MTD 753-06246

FLYWHEEL ASSEMBLY 27CC

$21.99

$

In Stock, only 1 left!

0

12

MTD 753-06247

BELL WASHER

$3.49

$

In Stock, only 1 left!

0

13

MTD 753-06248

SPACER

$3.49

$

Usually ships in 3-6 days

0

14

MTD 753-06189

INTAKE ASSEMBLY

Note: (Incl. 15)

$7.99

$

In Stock, only 1 left!

0

15

MTD 753-06184

O-RING

$3.49

$

In Stock, only 1 left!

0

16

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

17

MTD 791-181709

CARBURETOR GASKET

$4.99

$

In Stock, Qty 20+

0

18

MTD 753-06190

CARBURETOR

$35.99

$

In Stock, Qty 20+

0

19

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

20

MTD 753-10925

AIR CLEANER

Note: (Incl. 21)

$9.99

$

In Stock, Qty 7

0

21

MTD 753-06954

AIR FILTER

$2.99

$

In Stock, Qty 20+

0

22

MTD 753-06250

FUEL TANK ASSEMBLY

Note: (Incl. 23 & 24)

$21.99

$

In Stock, Qty 12

0

23

MTD 753-06857

FUEL CAP

$7.99

$

In Stock, Qty 5

0

24

MTD 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, only 1 left!

0

25

MTD 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 10

0

26

MTD 753-06825

THROTTLE CABLE

$6.49

$

Usually ships in 3-6 days

0

27

MTD 753-05877

LEAD WIRES

$9.99

$

Usually ships in 3-6 days

0

28

MTD 753-06091

PAWL ASSEMBLY AC5

$9.49

$

In Stock, Qty 5

0

29

MTD 753-11176

CLUTCH COVER

Note: (Incl. 30 - 34)

$21.99

$

In Stock, only 1 left!

0

30

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 5

0

31

MTD 9689A

SCREW

$11.99

$

Usually ships in 3-6 days

0

32

MTD 712-0161

HEX NUT

$4.49

$

In Stock, only 2 left!

0

33

MTD 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 1 left!

0

34

MTD 791-182195

SCREW #10-24X11/16 T-25

$7.49

$

In Stock, only 1 left!

0

35

MTD 753-11180

SHORTBLOCK

Note: (Incl. 7 - 13, 25 & 36)

$72.99

$

Usually ships in 3-6 days

0

36

MTD 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

In Stock, only 1 left!

0
