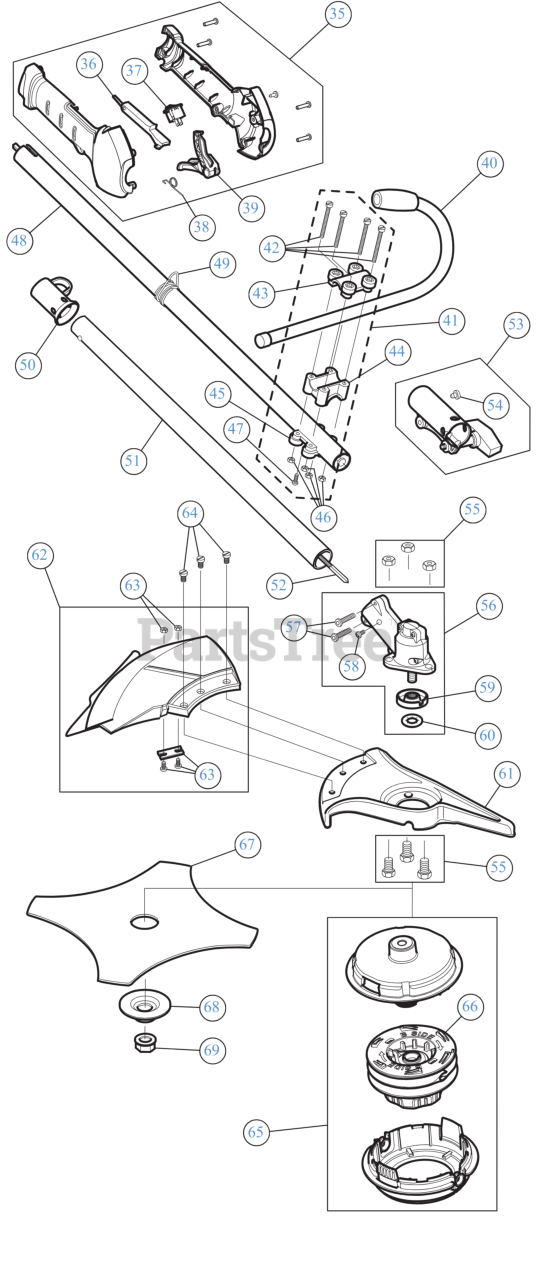

WS 235 (CMXGTAMD27BC) (41BD27BC791) - Craftsman String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

35

MTD 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 36 - 39)

$30.99

$

In Stock, only 1 left!

0

36

MTD 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 14

0

37

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

38

MTD 753-05007

TRIGGER SPRING

$5.49

$

In Stock, only 2 left!

0

39

MTD 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 20+

0

40

MTD 791-181099

HANDLE ASSEMBLY-JAY

$

$

Not available

41

MTD 791-683295

HANDLE BRACKET ASSEMBLY

Note: (Incl. 42 - 47)

$45.99

$

Usually ships in 3-6 days

0

42

MTD 791-181811

CLAMP SCREW

$4.99

$

Usually ships in 3-6 days

0

43

MTD 791-181812

HANDLE UPPER CLAMP

$8.99

$

Usually ships in 3-6 days

0

44

MTD 791-181813

HANDLE MIDDLE CLAMP

$12.99

$

Usually ships in 3-6 days

0

45

MTD 791-181814

HANDLE LOWER CLAMP

$8.99

$

Usually ships in 3-6 days

0

46

MTD 791-181815

NUT-CLAMP

$4.49

$

Usually ships in 3-6 days

0

47

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

48

MTD 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

49

MTD 791-610327

CLAMP-SHOULDER STR

$32.99

$

Usually ships in 3-6 days

0

50

MTD 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0

51

MTD 791-160226

ASSEMBLY, LOWER DRIVE S

$70.99

$

In Stock, only 2 left!

0

52

MTD 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

53

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 54)

$7.49

$

In Stock, Qty 8

0

54

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 6

0

55

MTD 791-182200

SCREW SET-GUARD MT

$6.99

$

In Stock, only 2 left!

0

56

MTD 753-07006

GEARBOX ASSEMBLY
(Superseded to 753-11244)

Note: (Incl. 57 - 60)

$22.99

$

Usually ships in 3-6 days

0

57

MTD 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0

58

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

59

MTD 791-182196

SPACER-GEARBOX

$22.99

$

In Stock, only 1 left!

0

60

MTD 753-04348

PALNUT:3/8" DIAM

$6.99

$

In Stock, only 1 left!

0

61

MTD 791-147492

SHIELD-BLADE CAST

$126.99

$

Usually ships in 3-6 days

0

62

MTD 753-1191

SHIELD ASSEMBLY WITH BLADE

Note: (Incl. 63)

$64.99

$

In Stock, only 1 left!

0

63

MTD 791-682061

BLADE ASSEMBLY

$14.99

$

In Stock, only 1 left!

0

64

MTD 791-683304

SCREW-GUARD MTG PK

$11.99

$

In Stock, only 1 left!

0

65

MTD 841-035873S

HEAD ASSEMBLY .105 (LIB RED)

Note: (Incl. 66)

$20.99

$

In Stock, only 1 left!

0

66

MTD 753-09365

BUMP KNOB

$4.49

$

In Stock, Qty 20+

0

67

MTD 791-145873B

BLADE 4-TOOTH

$42.99

$

In Stock, only 3 left!

0

68

MTD 791-147490

WASHER-BLADE CLAMP BRUSH CUT

$11.99

$

In Stock, only 4 left!

0

69

MTD 712-04105

BLADE LOCK NUT

$10.99

$

Usually ships in 3-6 days

0

MTD 791-180014B

KIT, BLADE RETAINING ST SHAFT

Note: (Incl. 68 and 69)

$12.99

$

In Stock, only 1 left!

0

MTD 791-613226

TOOL-LOCKING ROD

$14.99

$

In Stock, only 1 left!

0

MTD 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0
