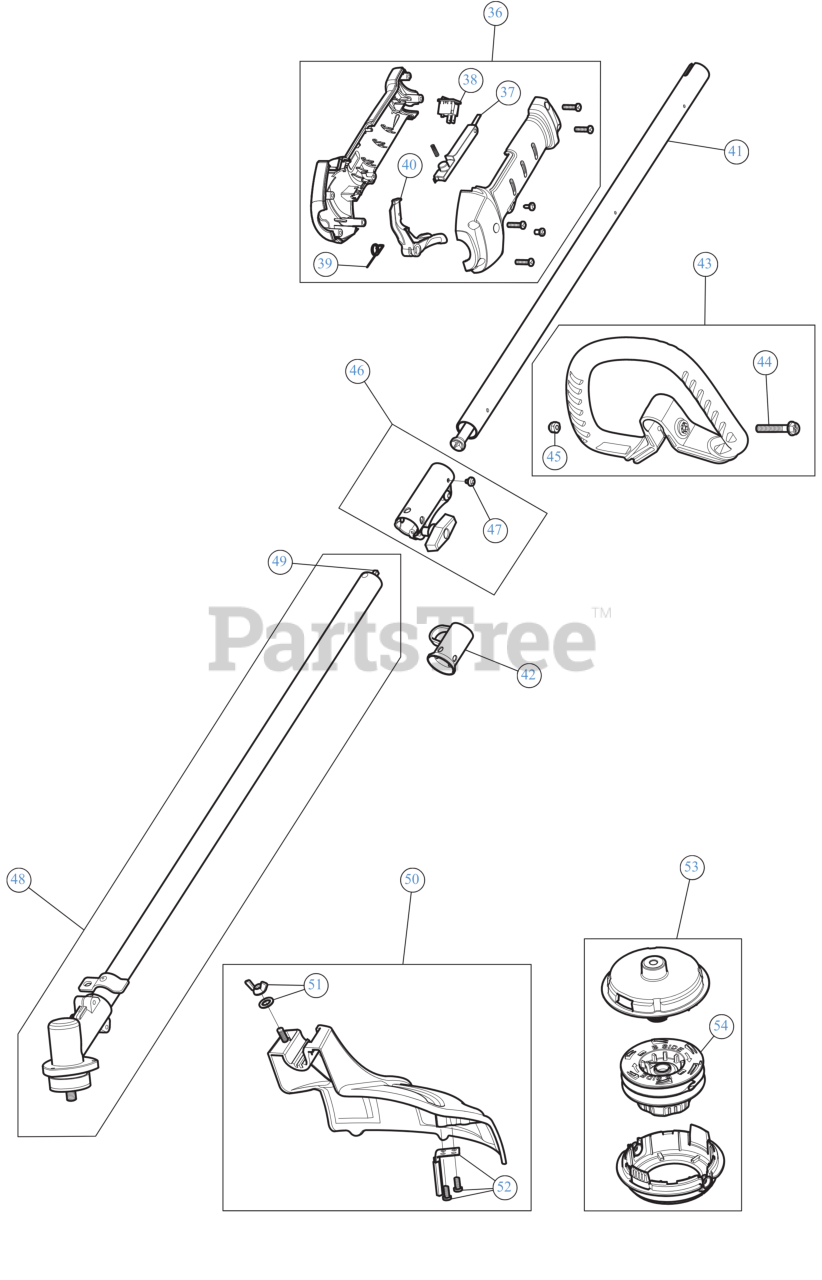

WS 230 (CMXGTAMD27SC) (41CD27SC793) - Craftsman String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

36

MTD 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 37 - 40)

$30.99

$

In Stock, only 1 left!

0

37

MTD 753-08378

THROTTLE LVR LKOUT
(Superseded to 731-08433C-10)

$3.49

$

In Stock, Qty 14

0

38

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

39

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 2 left!

0

40

MTD 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 20+

0

41

MTD 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

42

MTD 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0

43

MTD 753-06039

HANDLE ASSEMBLY

Note: (Incl. 44 & 45)

$11.99

$

Usually ships in 3-6 days

0

44

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

45

MTD 2952

NUT 1/4-20 NYLOC

$2.99

$

In Stock, only 1 left!

0

46

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 47)

$7.49

$

In Stock, Qty 8

0

47

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 6

0

48

MTD 611P05748

BOOM (W/GEARBOX)

Note: (Incl. 49)

$54.99

$

Usually ships in 3-6 days

0

49

MTD 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

50

MTD 841-032093S

GUARD/BLADE ASM

Note: (Incl. 51 & 52)

$12.99

$

In Stock, Qty 9

0

51

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

Usually ships in 3-6 days

0

52

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

53

MTD 841-013303S

COMPLETE HEAD ASSEMBLY

Note: (Incl. 54)

$15.99

$

In Stock, only 1 left!

0

54

MTD 753-09365

BUMP KNOB

$4.49

$

In Stock, Qty 20+
