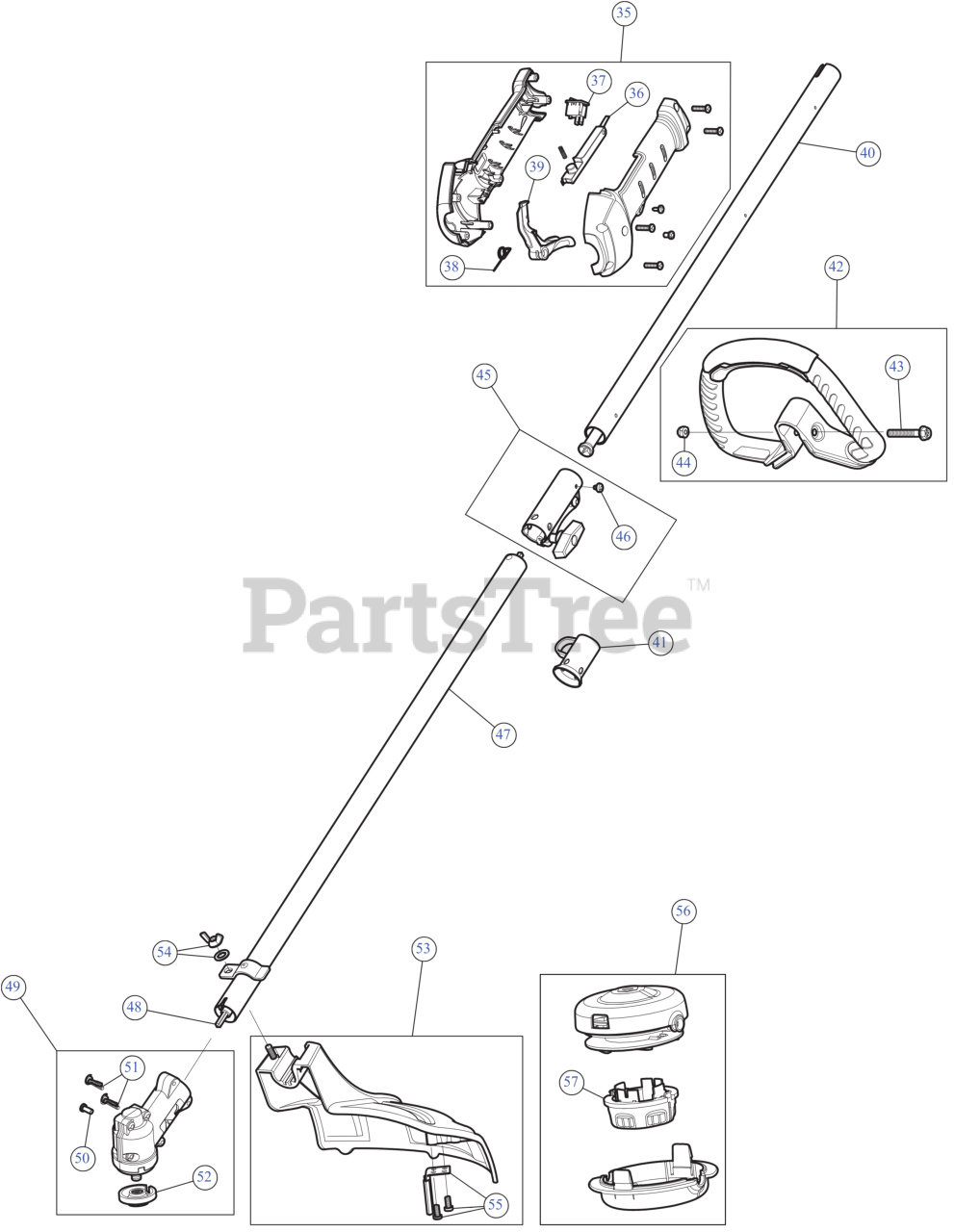

WS 225 (CMXGTAMA27SC) (41AD27SC791) - Craftsman String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

35

MTD 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 36 - 39)

$30.99

$

Usually ships in 3-6 days

0

36

MTD 753-08378

THROTTLE LVR LKOUT
(Superseded to 731-08433C-10)

$3.49

$

In Stock, only 4 left!

0

37

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

38

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 2 left!

0

39

MTD 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 16

0

40

MTD 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

41

MTD 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0

42

MTD 753-06039

HANDLE ASSEMBLY

Note: (Incl. 43 & 44)

$11.99

$

Usually ships in 3-6 days

0

43

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

Usually ships in 3-6 days

0

44

MTD 712-0324

NYLON LOCK NUT

$3.99

$

In Stock, Qty 16

0

45

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 46)

$7.49

$

In Stock, only 2 left!

0

46

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 7

0

47

MTD 753-08356

BOOM ASSEMBLY LOWER

$24.99

$

Usually ships in 3-6 days

0

48

MTD 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

49

MTD 753-08180

GEARBOX LCBC

Note: (Incl. 50 - 52)

$45.99

$

In Stock, Qty 5

0

50

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

Usually ships in 3-6 days

0

51

MTD 791-182195

SCREW #

$7.49

$

In Stock, only 1 left!

0

52

MTD 748-05052

CUTTING HEAD SPACER

$3.49

$

In Stock, Qty 20+

0

53

MTD 841-032093S

GUARD/BLADE ASM

Note: (Incl. 54 & 55)

$12.99

$

In Stock, only 3 left!

0

54

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

55

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

56

MTD 841-034114S

CUTTING HEAD

Note: (Incl. 57)

$18.99

$

In Stock, only 1 left!

0

57

MTD 753-06395

WASHER

$2.99

$

Usually ships in 3-6 days

0
