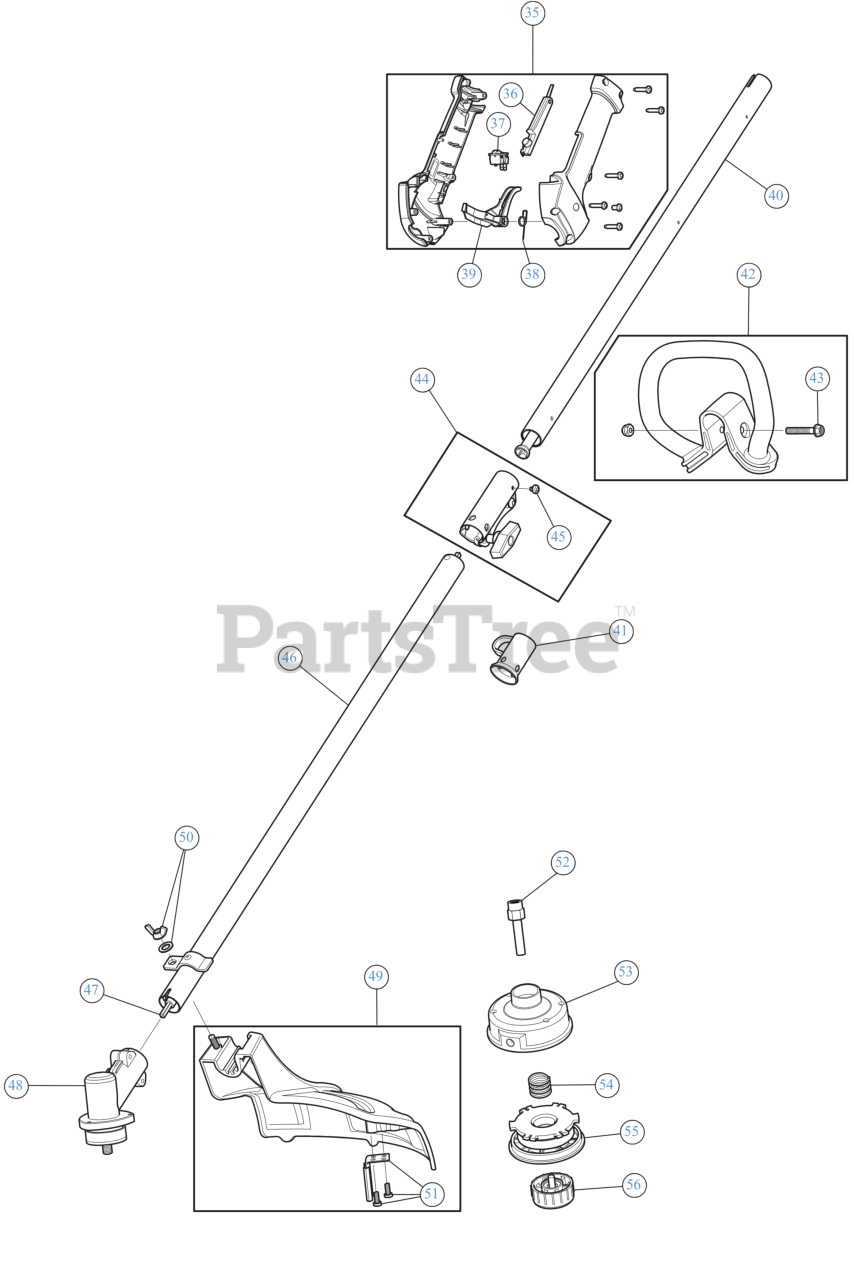

WS 205 (CMXGTAMDAZ25) (41BDAZ25791) - Craftsman String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

35

MTD 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 36 - 39)

$30.99

$

Usually ships in 3-6 days

0

36

MTD 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 14

0

37

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

38

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 2 left!

0

39

MTD 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 20+

0

40

MTD 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

41

MTD 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0

42

MTD 753-08042

D-HANDLE

Note: (Incl. 43)

$4.99

$

In Stock, Qty 7

0

43

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

44

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 45)

$7.49

$

In Stock, only 1 left!

0

45

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 6

0

46

MTD 753-08748

LOWER BOOM ASSEMBLY

$18.99

$

Usually ships in 3-6 days

0

47

MTD 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

48

MTD 697P01008

GEARBOX

$36.99

$

Usually ships in 3-6 days

0

49

MTD 841-032093S

GUARD/BLADE ASM

Note: (Incl. 50 & 51)

$12.99

$

In Stock, only 2 left!

0

50

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

51

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

52

MTD 711-06397

SHAFT ADAPTER

$9.49

$

In Stock, only 1 left!

0

53

MTD 753-04284

REEL:OTR W/RET

$28.99

$

In Stock, only 1 left!

0

54

MTD 791-610317B

SPRING-SPOOL

$10.99

$

In Stock, Qty 8

0

55

MTD 731-10724-49

INNER REEL

$9.49

$

Usually ships in 3-6 days

0

56

MTD 841-050911S

BUMP KNOB (BLACK)

$2.99

$

Usually ships in 3-6 days

0
