WS 1236 A - Weed Eater Lawn Tractor (1991) MOWER LIFT Parts Diagram

Lawn Tractor

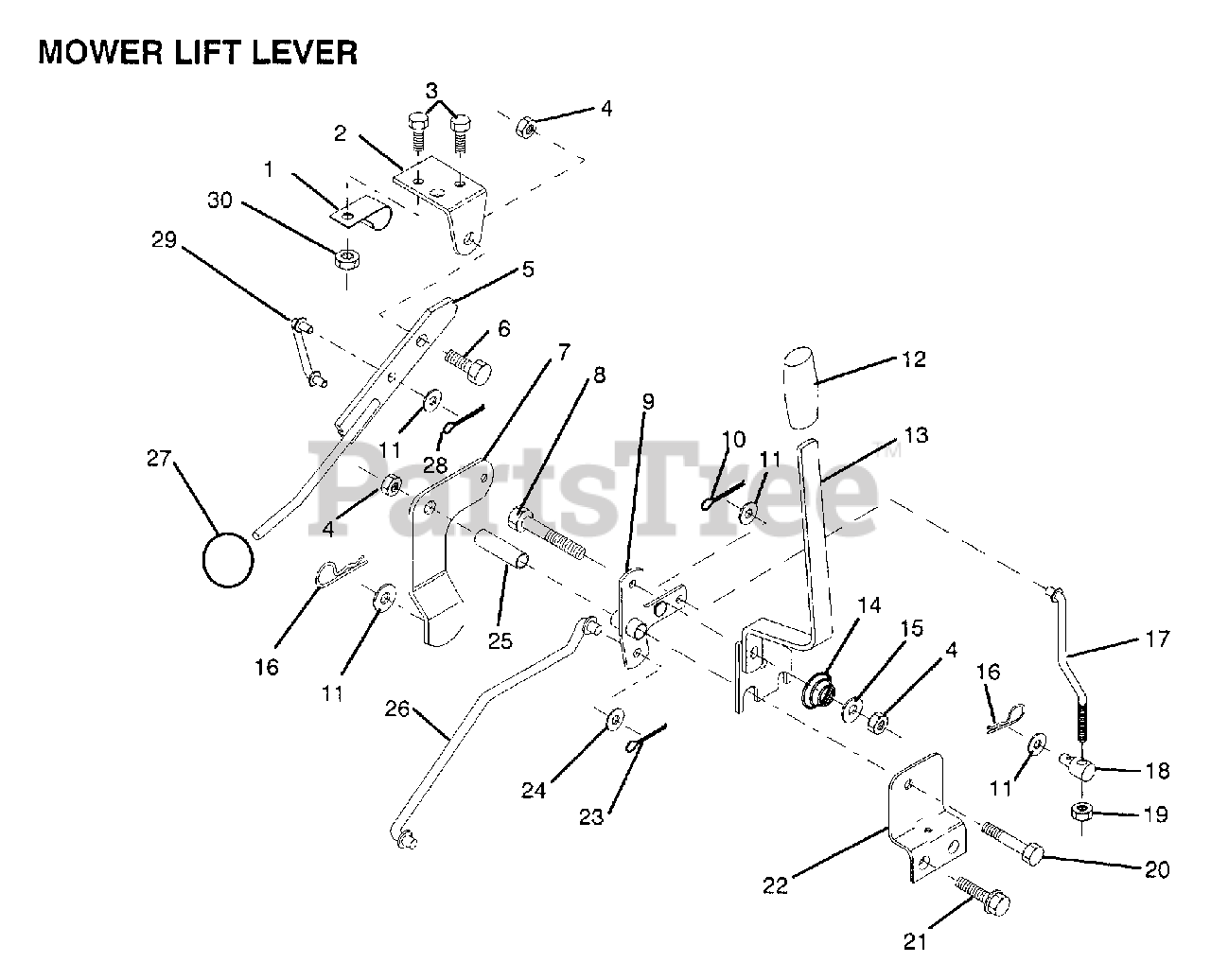

MOWER LIFT Parts Diagram

  • Title
1

Electrolux/AYP 126470X

"CLIP,INSULATOR"
(Superseded to 532126470)

$3.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 122018X

BRKT CLUTCH
(Superseded to 532122018)

$

$

Not available

3

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 123417X

CLUTCH LEVER AS
(Superseded to 532123417)

$

$

Not available

6

Electrolux/AYP 106451X

"BOLT, SHOULDER LT"
(Superseded to 532106451)

$2.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 123491X

CLUTCH ARM ASS'Y
(Superseded to 532123491)

$

$

Not available

8

Electrolux/AYP 74760636

BOLT
(Superseded to 874760636)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 121930X

"BELLCRANK,LIFT"
(Superseded to 532121930)

$11.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 122027X

GRIP HANDLE
(Superseded to 532122027)

$

$

Not available

13

Electrolux/AYP 127028

"HDLE,LIFT T"
(Superseded to 532127028)

$

$

Not available

14

Electrolux/AYP 123496X

SPRING COMPRESSIO
(Superseded to 532123496)

$2.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 19131212

WASHER T
(Superseded to 819131212)

$

$

Not available

16

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

17

Electrolux/AYP 123654X

LINK FRT LIFT
(Superseded to 532123654)

$

$

Not available

18

Electrolux/AYP 7078J

SUB= 142028

$

$

Not available

19

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 121929X

"BRKT,MOWER HGT"
(Superseded to 532121929)

$

$

Not available

23

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 121933X

TUBE SPACER
(Superseded to 532121933)

$

$

Not available

26

Electrolux/AYP 121934X

"ROD,MOWER LIFT "
(Superseded to 141470)

$

$

Not available

27

Electrolux/AYP 106932X

KNOB T(3/8 HOLE)
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 123671X

"LINK,MOWER LIFT"
(Superseded to 532123671)

$10.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0
