WP20 X ACF6 (WZBE) - Honda Water Pump, Made in Japan (SN: WZBE-1000001 - WZBE-1399999) RECOIL STARTER Parts Diagram

Water Pump, Made in Japan

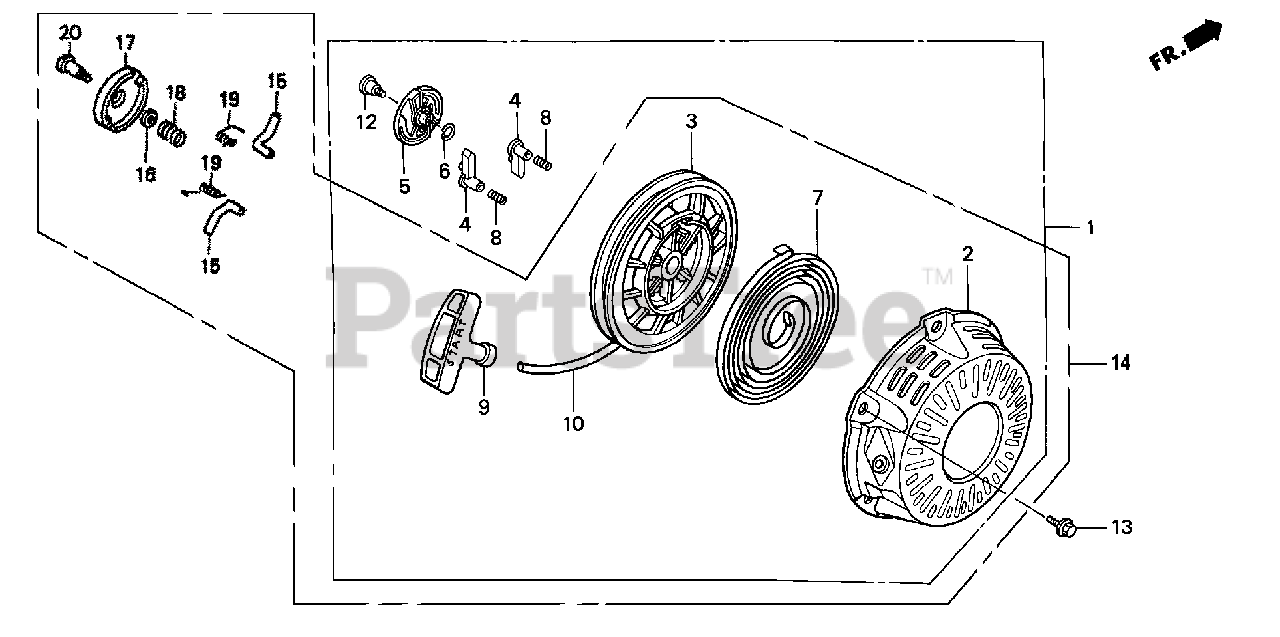

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZH8-013YA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

$126.99

$

In Stock, only 2 left!

0

1

Honda 28400-ZH8-013ZA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use up to Engine SN 4142243.

$

$

Not available

2

Honda 28410-ZH8-003YA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

Note: Use from Engine SN 4142244.

$124.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZH8-003ZA

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)
(Superseded to 28410-ZH8-003YA)

Note: Use up to Engine SN 4142243.

$124.99

$

Usually ships in 3-6 days

0

3

Honda 28420-ZH8-013

SEE PART DETAILS - PRI; REEL, RECOIL STARTER

$47.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZH8-013

SEE PART DETAILS - PRI; RATCHET, STARTER

$9.49

$

In Stock, only 1 left!

0

5

Honda 28433-ZH8-003

GUIDE, RATCHET

$13.99

$

Usually ships in 3-6 days

0

6

Honda 28441-ZH8-003

SPRING, FRICTION

$6.49

$

In Stock, only 1 left!

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

$19.99

$

In Stock, Qty 8

0

8

Honda 28443-ZH8-003

SPRING, RETURN

$6.49

$

In Stock, only 1 left!

0

9

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; KNOB, RECOIL STARTER
(Superseded to 28461-ZH8-013)

$8.99

$

In Stock, Qty 7

0

10

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55")

$12.99

$

In Stock, only 3 left!

0

12

Honda 90003-ZH8-003

SCREW, SETTING

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90008-ZE2-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0
