WP20 X ACF6 (WZBE) - Honda Water Pump, Made in Japan (SN: WZBE-1000001 - WZBE-1399999) CRANKCASE COVER Parts Diagram

Water Pump, Made in Japan

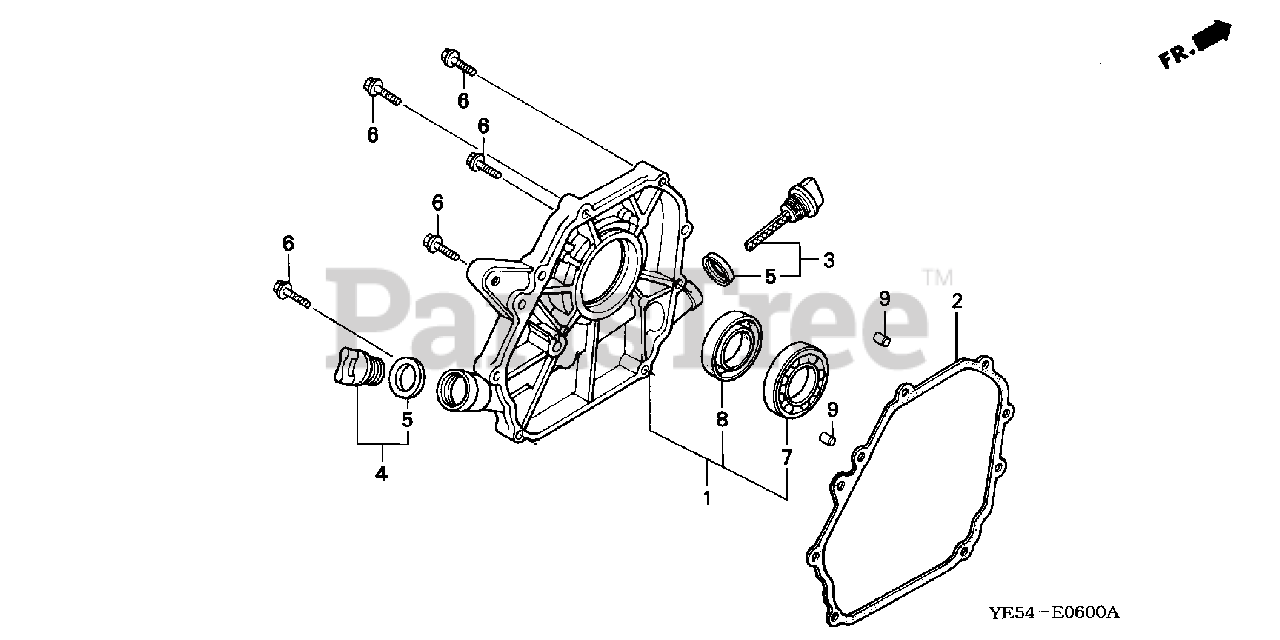

CRANKCASE COVER Parts Diagram

  • Title
1

Honda 11300-ZE0-634

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$107.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZH7-800

SEE PART DETAILS - PRI; GASKET, CASE COVER

$9.99

$

In Stock, Qty 11

0

3

Honda 15600-ZE1-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER
(Superseded to 15600-Z0T-810)

$1.49

$

In Stock, Qty 7

0

4

Honda 15600-ZG4-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

$6.99

$

In Stock, only 1 left!

0

5

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 3 left!

0

6

Honda 90015-883-000

BOLT, FLANGE (6X28)

$3.99

$

In Stock, Qty 8

0

7

Honda 91001-878-003

BEARING, RADIAL BALL (62/22)

$38.99

$

In Stock, only 2 left!

0

8

Honda 91203-ZE0-003

SEE PART DETAILS - SUP; OIL SEAL (22X41X6)
(Superseded to 91203-ZE0-013)

Note: Use up to Engine SN 4223185.

$10.99

$

In Stock, Qty 12

0

8

Honda 91203-ZE0-013

SEE PART DETAILS - PRI; OIL SEAL (22X41X6)

$10.99

$

In Stock, Qty 12

0

9

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0
