WP2.0 (WP20-3001) - Kohler 2" PRO Water Pump Water Pump Parts Diagram

2" PRO Water Pump

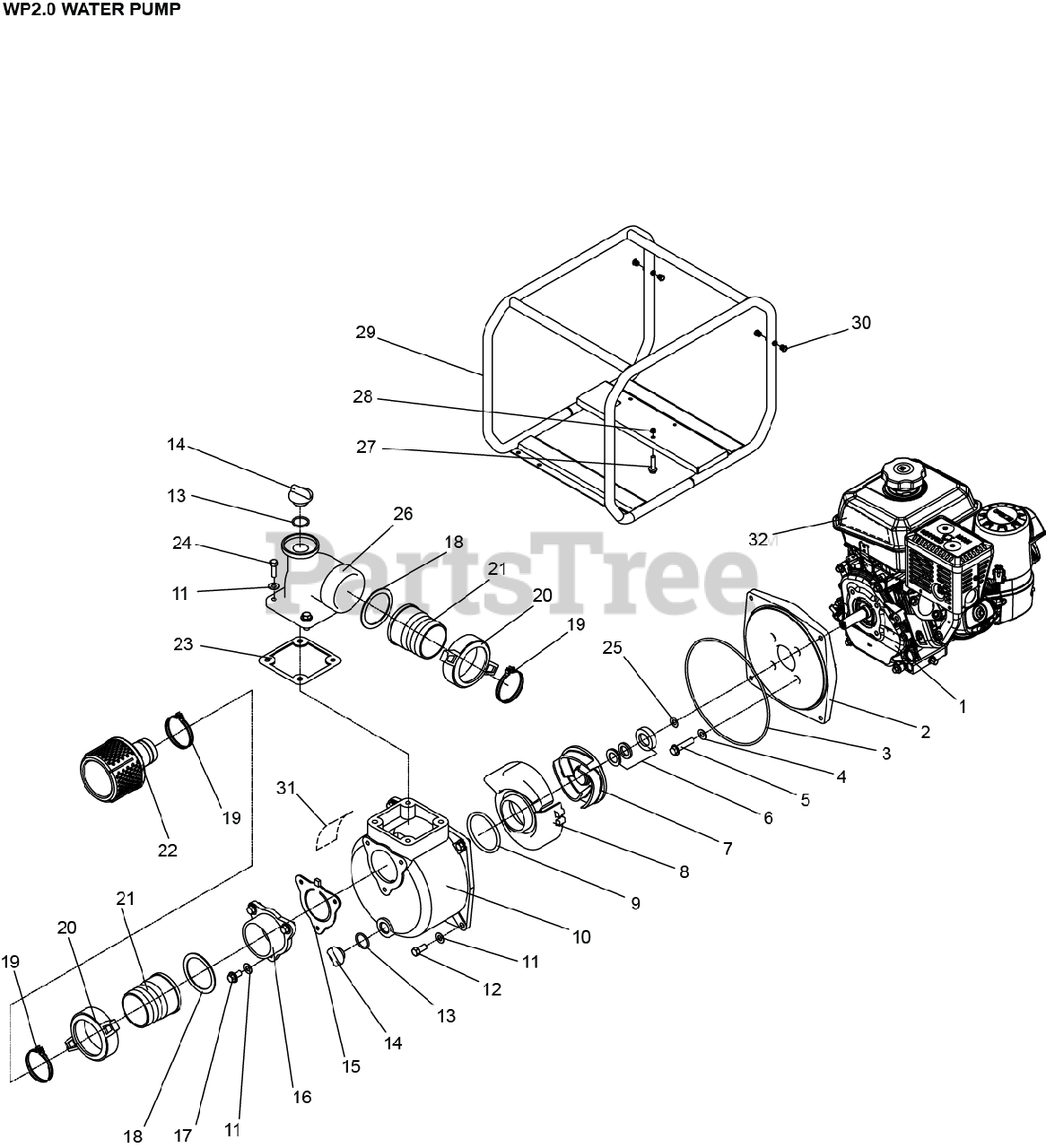

Water Pump Parts Diagram

  • Title

1

Kohler CH270-3013

CH270 E3 MARKETING BASIC

$

$

Not available

2

Kohler 35 029 01-S

ADAPTER, PUMP COVER WP2.0

$73.99

$

Usually ships in 2-5 days

0

3

Kohler 35 153 01-S

O-RING 196 WP2.0

$5.49

$

Usually ships in 2-5 days

0

4

Kohler 35 468 01-S

WASHER 8 TP3.0

$2.99

$

Usually ships in 2-5 days

0

5

Kohler 35 211 01-S

BOLT 5/16-24UNF-2A (L=60)

$

$

Not available

6

Kohler 35 032 01-S

SEAL, MECHANICAL WP3.0

$21.99

$

Usually ships in 2-5 days

0

7

Kohler 35 393 01-S

PUMP ASSEMBLY, IMPELLER WP2.0

$71.99

$

Usually ships in 2-5 days

0

8

Kohler 35 081 01-S

HOUSING, DIFFUSOR WP2.0

$41.99

$

Usually ships in 2-5 days

0

9

Kohler 35 153 03-S

O-RING 65 WP2.0

$3.49

$

Usually ships in 2-5 days

0

10

Kohler 35 208 01-S

BODY, PUMP WP2.0

$213.99

$

Usually ships in 2-5 days

0

11

Kohler 35 468 02-S

WASHER 8

$2.99

$

Usually ships in 2-5 days

0

12

Kohler 35 211 02-S

BOLT M8X22

$2.99

$

Usually ships in 2-5 days

0

13

Kohler 35 153 05-S

O-RING 30*3.1 TP3.0

$2.99

$

In Stock, only 1 left!

0

14

Kohler 35 139 01-S

PLUG TP3.0

$2.99

$

In Stock, only 1 left!

0

15

Kohler 35 041 05-S

GASKET WP2.0

$3.99

$

Usually ships in 2-5 days

0

16

Kohler 35 295 01-S

FLANGE, SUCTION WP2.0

$22.99

$

Usually ships in 2-5 days

0

17

Kohler 35 211 04-S

BOLT M8X16

$2.99

$

Usually ships in 2-5 days

0

18

Kohler 35 041 01-S

GASKET, RUBBER PACKING WP2.0

$5.49

$

Usually ships in 2-5 days

0

19

Kohler 35 237 01-S

CLAMP WP2.0

$3.99

$

Usually ships in 2-5 days

0

20

Kohler 35 100 02-S

NUT, JOINT GRIP WP2.0

$11.99

$

Usually ships in 2-5 days

0

21

Kohler 35 294 01-S

FITTING, PIPE JOINT WP2.0

$11.99

$

Usually ships in 2-5 days

0

22

Kohler 35 050 01-S

FILTER NET WP2.0

$12.99

$

Usually ships in 2-5 days

0

23

Kohler 35 041 03-S

GASKET, RUBBER PAD WP2.0

$5.49

$

Usually ships in 2-5 days

0

24

Kohler 35 211 06-S

BOLT M8X25

$2.99

$

Usually ships in 2-5 days

0

25

Kohler 35 422 01-S

SHIM, ADJUSTING

$

$

Not available

26

Kohler 35 054 01-S

ELBOW OUTLET SEAT WP2.0

$3.99

$

Usually ships in 2-5 days

0

27

Kohler 35 211 07-S

BOLT M8X40 GB 5789

$2.99

$

Usually ships in 2-5 days

0

28

Kohler 35 100 01-S

NUT M8

$2.99

$

Usually ships in 2-5 days

0

29

Kohler 35 301 01-S

FRAME ASSEMBLY WP3.0

$179.99

$

Usually ships in 2-5 days

0

30

Kohler 37 139 01-S

PLUG, END CAP

$2.99

$

Usually ships in 2-5 days

0

31

PERFORMANCE LABEL

$

$

Not available

32

BRAND LABEL

$

$

Not available
