WP RT5 H - Winston Pro Tiller (1999) HANDLE ASSEMBLY Parts Diagram

Tiller

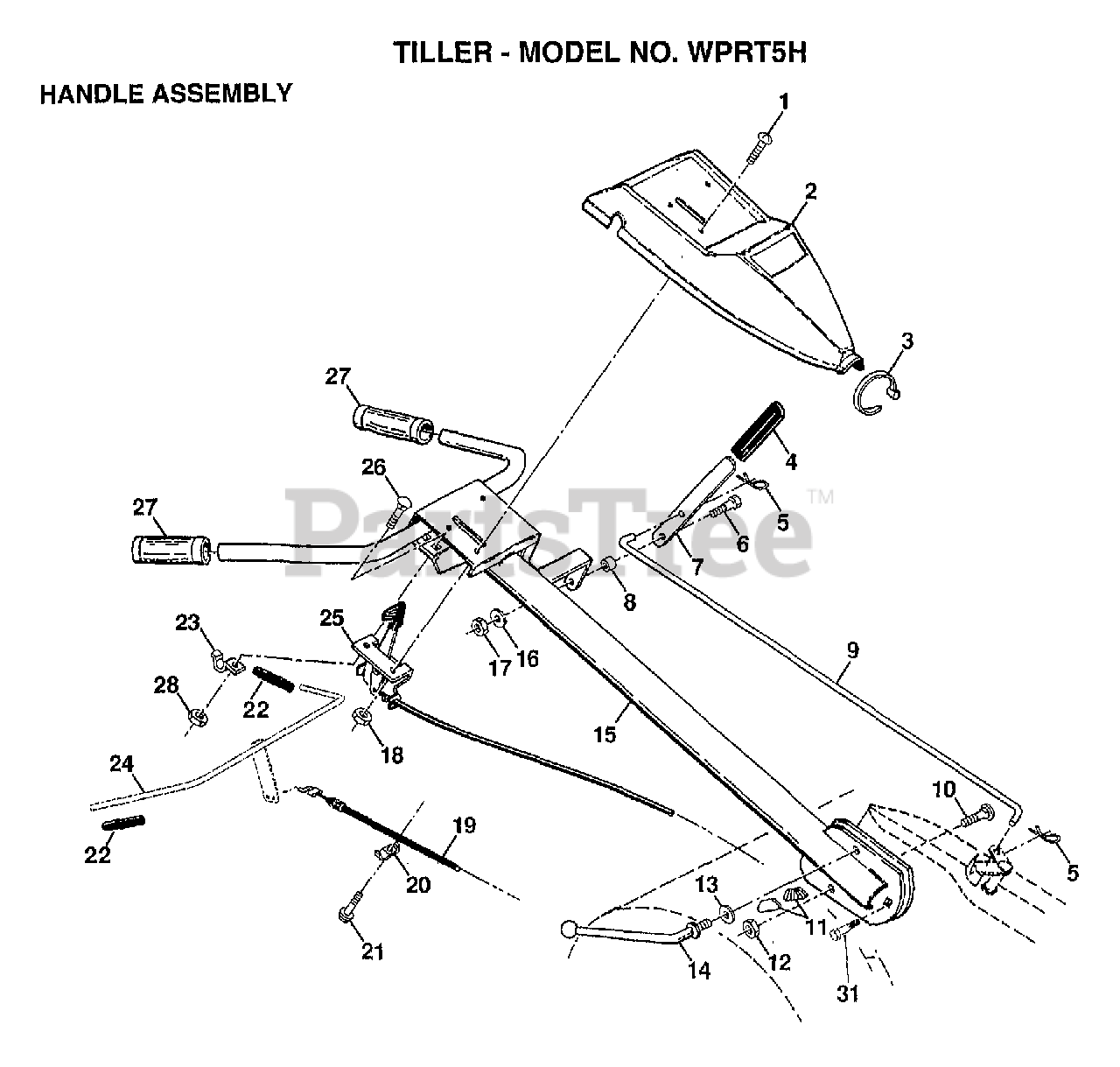

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 71191008

SCREW.PNHD.10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 126951X

"PANEL,CONT TI"
(Superseded to 532126951)

$

$

Not available

3

Electrolux/AYP 104164X

TIE CABLE CRT
(Superseded to 532104164)

$6.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 8206H

GRIP T
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

6

Electrolux/AYP 81328

SHOULDER BOLT ST
(Superseded to 532081328)

$6.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 109335X

SHIFT HANDLE CRT
(Superseded to 532109335)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 109313X

GROMMET CRT
(Superseded to 532109313)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 109337X

SHIFT ROD CRT
(Superseded to 532109337)

$37.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 109229X

LOCK CRT
(Superseded to 532109229)

$7.49

$

In Stock, only 3 left!

0

12

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 19131611

WASHER CRT
(Superseded to 596140201)

$3.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 109228X

LEVER LOCK CRT
(Superseded to 532109228)

$13.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 150256X505

SUB= 150256X431

$

$

Not available

16

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

$2.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 159231

CABLE.CLUTCH
(Superseded to 532159231)

$31.99

$

In Stock, Qty 6

0

20

Electrolux/AYP 9484R

CONDIUT CLIP T
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

21

Electrolux/AYP 86777

SUB= 750097
(Superseded to 532086777)

$

$

Not available

22

Electrolux/AYP 102604X

GRIP BAR CRT
(Superseded to 532102604)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 102744X

SUB= 102744X431

$

$

Not available

24

Electrolux/AYP 159228

BAR ASM CONTROL

$11.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 127012X

"CONT,THROTTLE"
(Superseded to 532175769)

$37.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 72140404

BOLT
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 9266R

SUB= 624A78

$

$

Not available

28

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

31

Electrolux/AYP 150696

BOLT PIVOT
(Superseded to 532150696)

$7.49

$

In Stock, only 3 left!

0
