WP-3000 - Echo Water Pump (SN: F7299 - F9999) Intake, Exhaust, Air Cleaner Parts Diagram

Water Pump

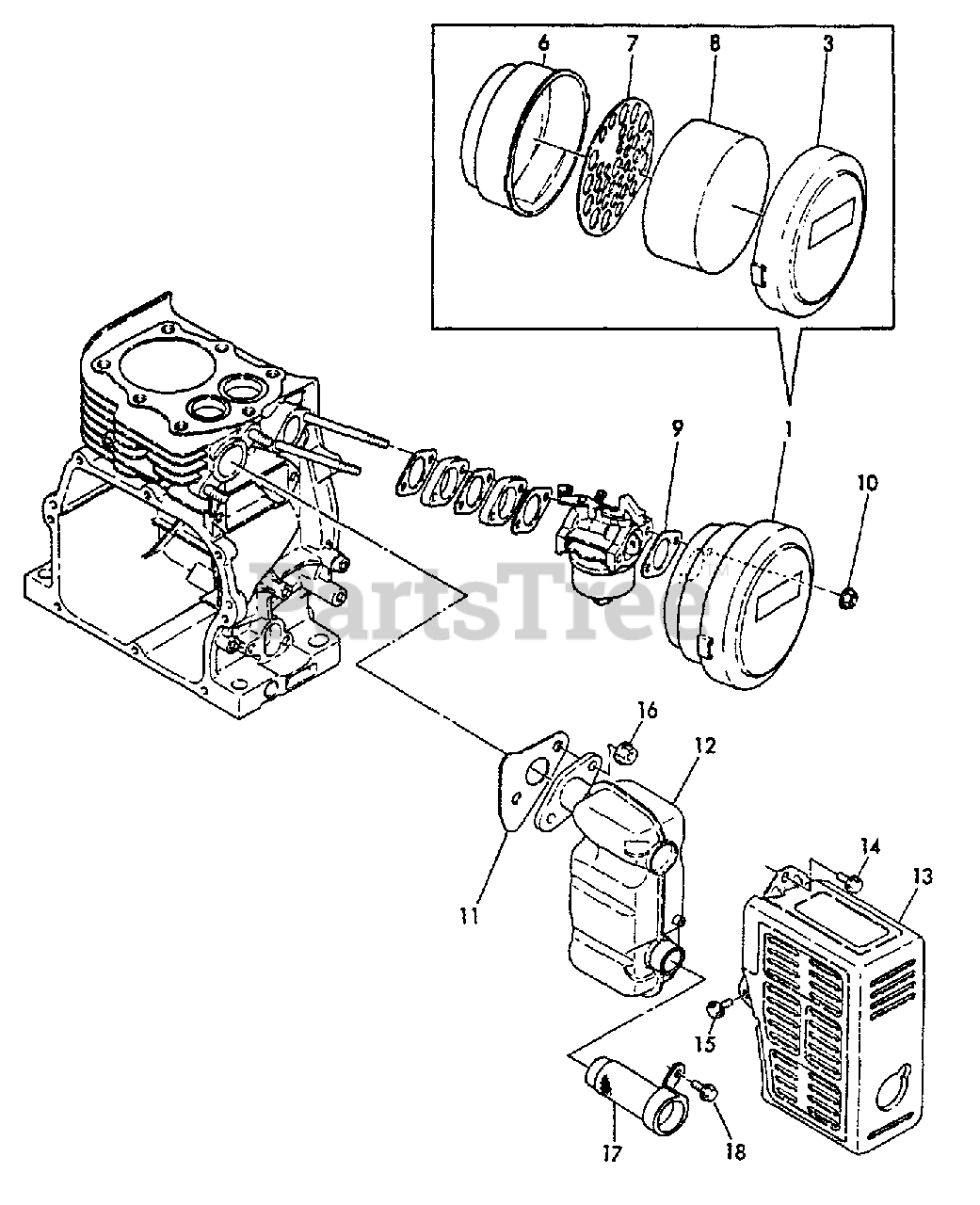

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title
1

Echo Y76071012571

AIR CLEANER ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y76071012540

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16071012540

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16071012550

PLATE, ELEMENT
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16026012570

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16061056150

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

10

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16071013200

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16074013500

MUFFLER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16074013820

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

14

Echo Y26106060122

BOLT - 6X12 -- PLATED
(Superseded to Discontinued)

$

$

Not available

15

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available

16

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16077013650

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

18

Echo Y26106060102

BOLT - 6X10 -- PLATED
(Superseded to Discontinued)

$

$

Not available
