WP 3-65 (073011-0) - Briggs & Stratton Water Pump Main Unit Parts Diagram

Water Pump

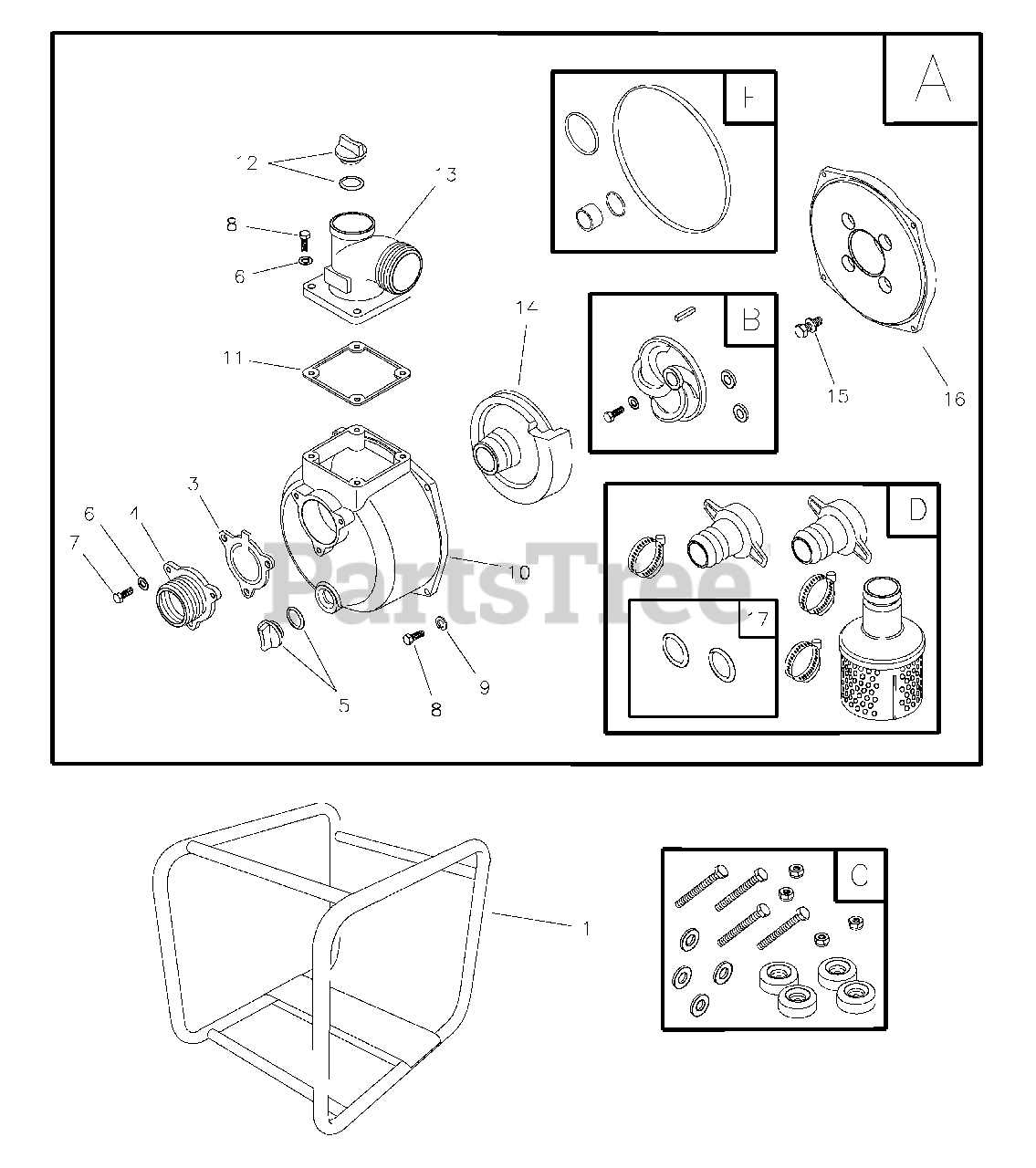

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 865159GS

Cradle

$142.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 197755GS

Valve, Check

$19.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 197757GS

Flange, Inlet, 3" BSP

$35.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 198057GS

Assy, Plug

$

$

Not available

6

-----

Washer, Flat, 3/8 M10

Note: (Purchase locally)

$

$

Not available

7

-----

HHCS, M10 - 1.5 x 20

Note: (Purchase locally)

$

$

Not available

8

-----

HHCS, M10 - 1.5 x 25

Note: (Purchase locally)

$

$

Not available

9

-----

Washer, Lock M10

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 197753GS

Housing, Pump
(Superseded to 704466)

$75.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 197759GS

Gasket, Out

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 198155GS

Assy, Plug

$7.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 197761GS

Flange, Out, 3" BSP
(Superseded to 704464)

$64.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 197748GS

Volute, 3"

$29.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 198048GS

Assy, Fastener

$7.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 197739GS

Adapter, Engine
(Superseded to 704463)

$54.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 197765GS

Gasket, 3"

$9.49

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 198062GS

Assy, Housing Pump

Note: Service kits include all parts shown within the box.

$384.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 198156GS

Kit, Impeller

Note: Service kits include all parts shown within the box.

$22.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 197887GS

Kit, Vibration Mount

Note: Service kits include all parts shown within the box.

$15.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 198157GS

Kit, Coupler, 3" BSP
(Superseded to 705413)

Note: Service kits include all parts shown within the box.

$161.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 198158GS

Kit, Seal

Note: Service kits include all parts shown within the box.

$50.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton MS10408

Manual, Operator’s 073011

Note: Parts Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 198302GS

Decal, Recoil

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198301GS

Decal, Air Cleaner

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198296GS

Decal, Fuel Tank

Note: Parts Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198303GS

Decal, Caution

Note: Parts Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198305GS

Label, Warning

Note: Parts Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

--

-----

Engine

Note: Parts Not Illustrated Contact Engine Manufacturer

$

$

Not available
