WP-2000 - Echo Water Pump (SN: A0000 - A1009) THROTTLE, GOVERNOR LEVER Parts Diagram

Water Pump

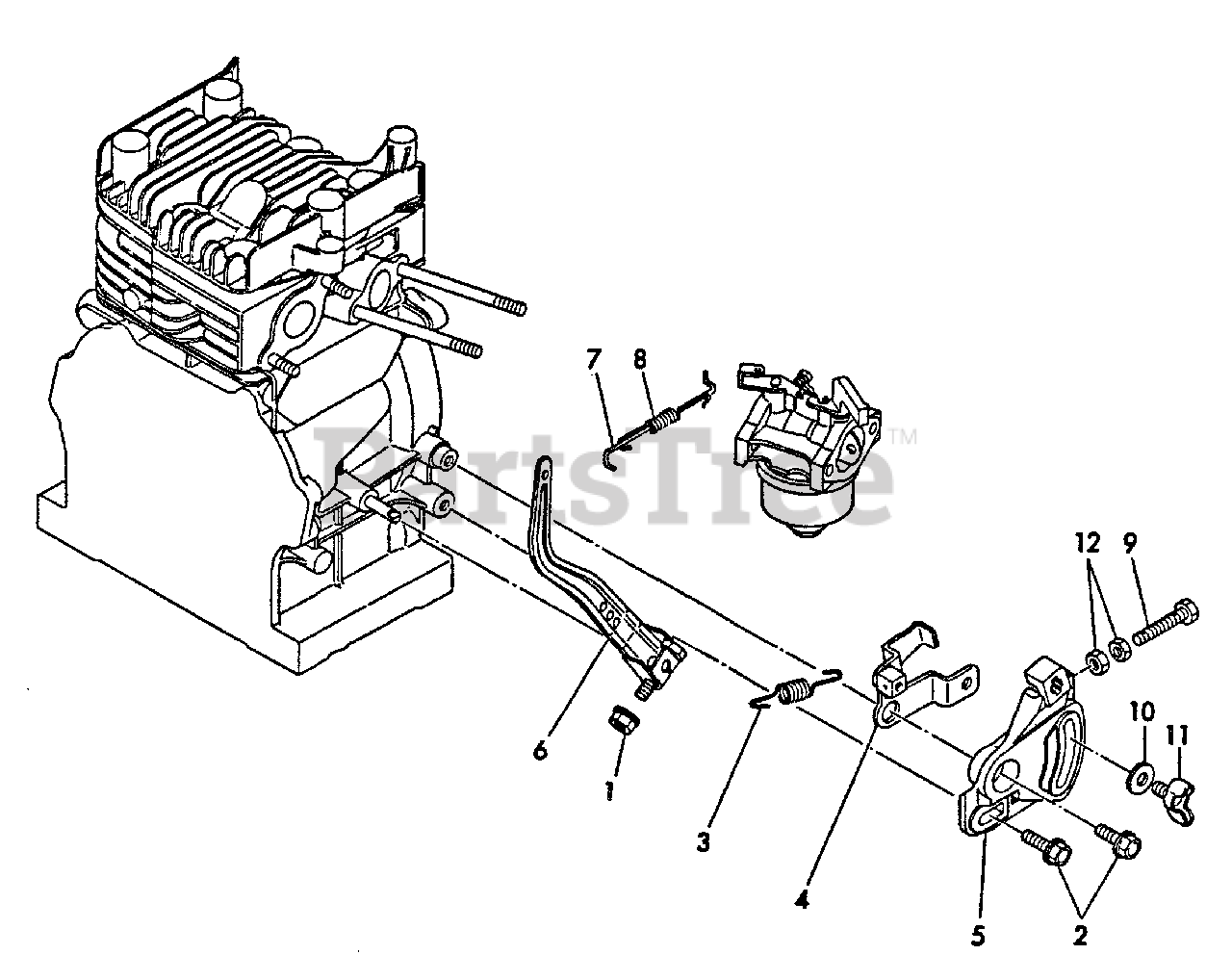

THROTTLE, GOVERNOR LEVER Parts Diagram

  • Title
1

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

2

Echo Y26476060202

BOLT - 6X20
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16061066011

SPRING, REGULATOR
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16073066050

HANDLE, REGULATOR
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16061066100

BRACKET, REGULATOR
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16061066151

LEVER, GOVERNOR
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16061066201

LINK, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

8

Echo Y16071066220

SPRING
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16061166440

BOLT
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16012076940

WASHER
(Superseded to Discontinued)

$

$

Not available

11

Echo Y26645060152

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26757060002

LOCKNUT - 6 -- PLATED
(Superseded to Discontinued)

$

$

Not available
