WP-2000 - Echo Water Pump (SN: A0000 - A1009) Fuel Tank Parts Diagram

Water Pump

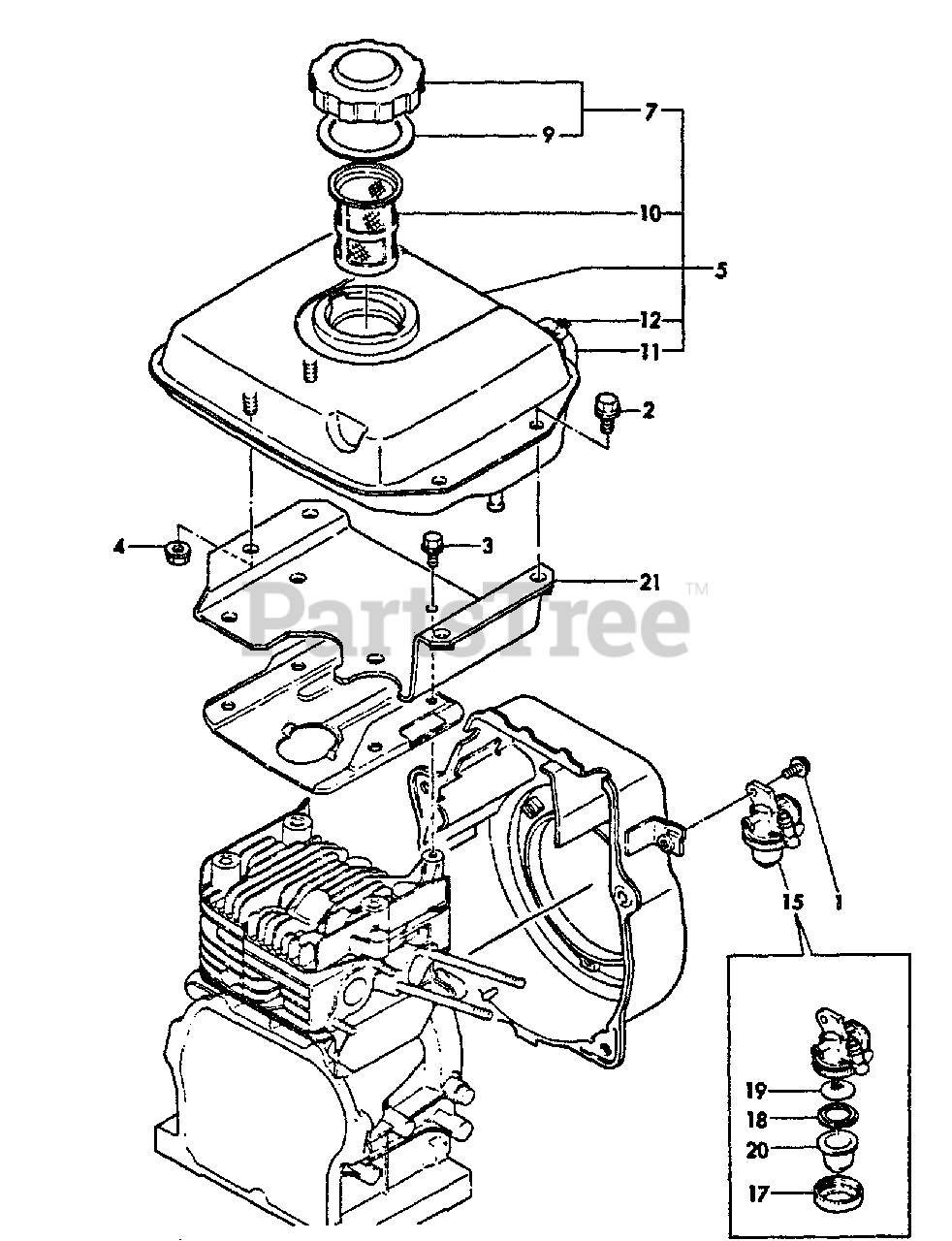

Fuel Tank Parts Diagram

  • Title

1

Echo Y26106060122

BOLT - 6X12 -- PLATED
(Superseded to Discontinued)

$

$

Not available

2

Echo Y26106080142

BOLT - 8X14 -- PLATED
(Superseded to Discontinued)

$

$

Not available

3

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available

4

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

5

Echo Y76064155700

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16071055060

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16039355050

GASKET
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16071055100

STRAINER, FUEL
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16026055150

GAUGE, LEVEL
(Superseded to Discontinued)

$

$

Not available

12

Echo Y12472259050

CLAMP, HOSE - 9
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16071055301

FUEL COCK ASSY
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16071055360

RETAINER
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16071055370

GASKET
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16071055380

STRAINER, FUEL
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16071055390

BOWL, STRAINER
(Superseded to Discontinued)

$

$

Not available

21

Echo Y16064155760

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available
