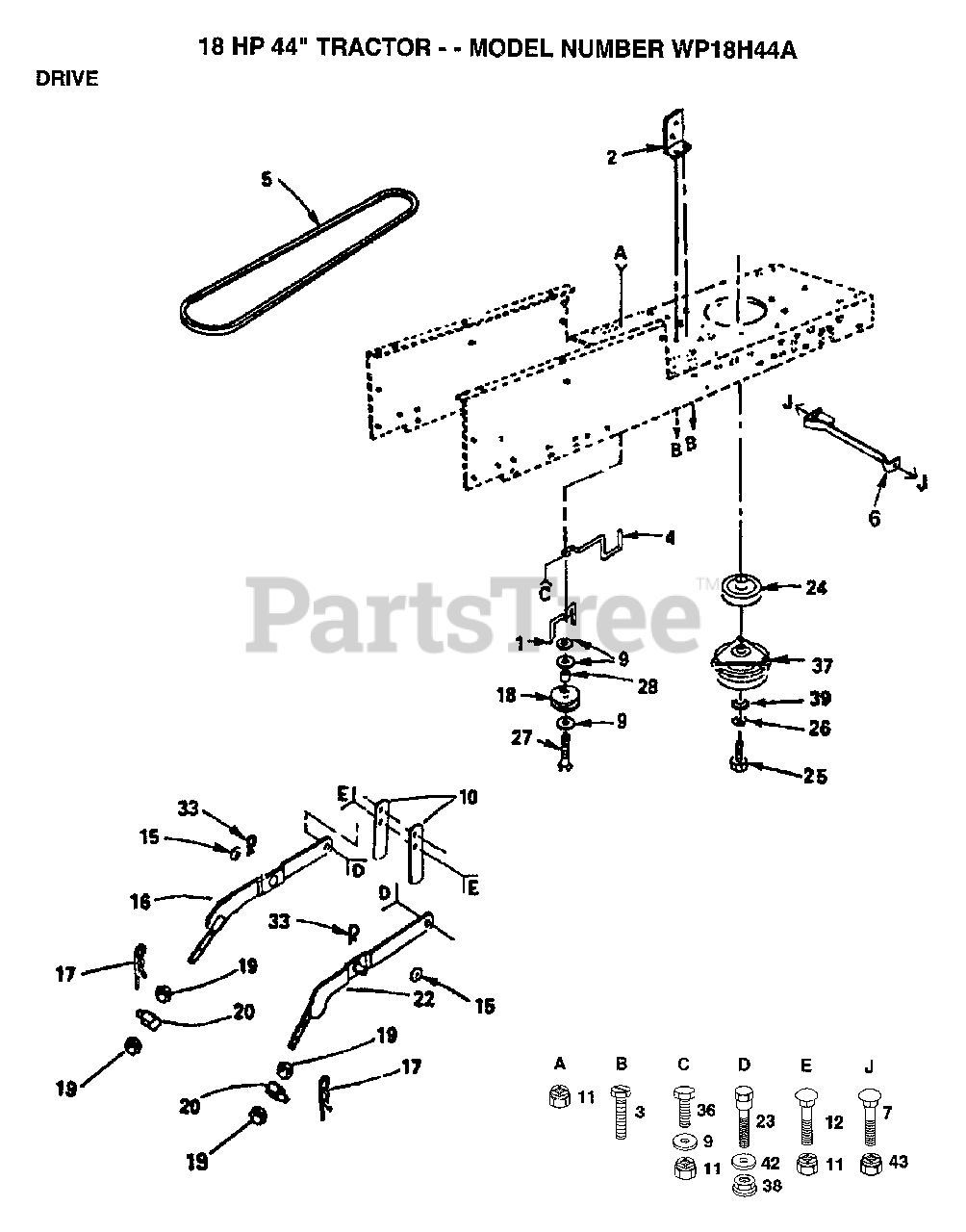

WP 18H44 A - Winston Pro Lawn Tractor (1992) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 109070X

BELT KEEPER LT
(Superseded to 532109070)

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 108236X

BRACKET LT
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

4

Electrolux/AYP 129921

KEEPER.BELT.ENG.L
(Superseded to 532129921)

$

$

Not available

5

Electrolux/AYP 123461X

SUB= TH4H810
(Superseded to 532123461)

$

$

Not available

6

Electrolux/AYP 109169X

SUB= 109172X

$

$

Not available

7

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 121252X

UPSTOP
(Superseded to 532121252)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12

Murray 72140608

SUB= 72110608

$

$

Not available

15

Electrolux/AYP 19171516

WASHER T

$2.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 121599X

LH SUSP ARM ASM
(Superseded to 532121599)

$

$

Not available

17

Electrolux/AYP 9135R

SPRING H
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 123674X

PULLEY.IDLER.FLAT
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 73220800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

20

Electrolux/AYP 106308X

SUB= 130171

$

$

Not available

22

Electrolux/AYP 121598X

RH SUSP ARM ASM
(Superseded to 532121598)

$

$

Not available

23

Electrolux/AYP 105848X

"BOLT, SHOULDER LT"
(Superseded to 532105848)

$

$

Not available

24

Electrolux/AYP 109841X

SUB= 136905

$

$

Not available

25

Electrolux/AYP 71170768

SUB= 150280

$

$

Not available

26

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 126112X

SUB= 142600

$

$

Not available

38

Electrolux/AYP 73980600

NUT SPECIAL T
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 126197X

WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

42

Electrolux/AYP 110739X

WASHER T
(Superseded to 532110739)

$4.99

$

Usually ships in 3-10 days

0

43

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
