WP 18 H44A - Winston Pro Yard Tractor (1992-02) Transaxle And Rear Wheel Parts Diagram

Yard Tractor

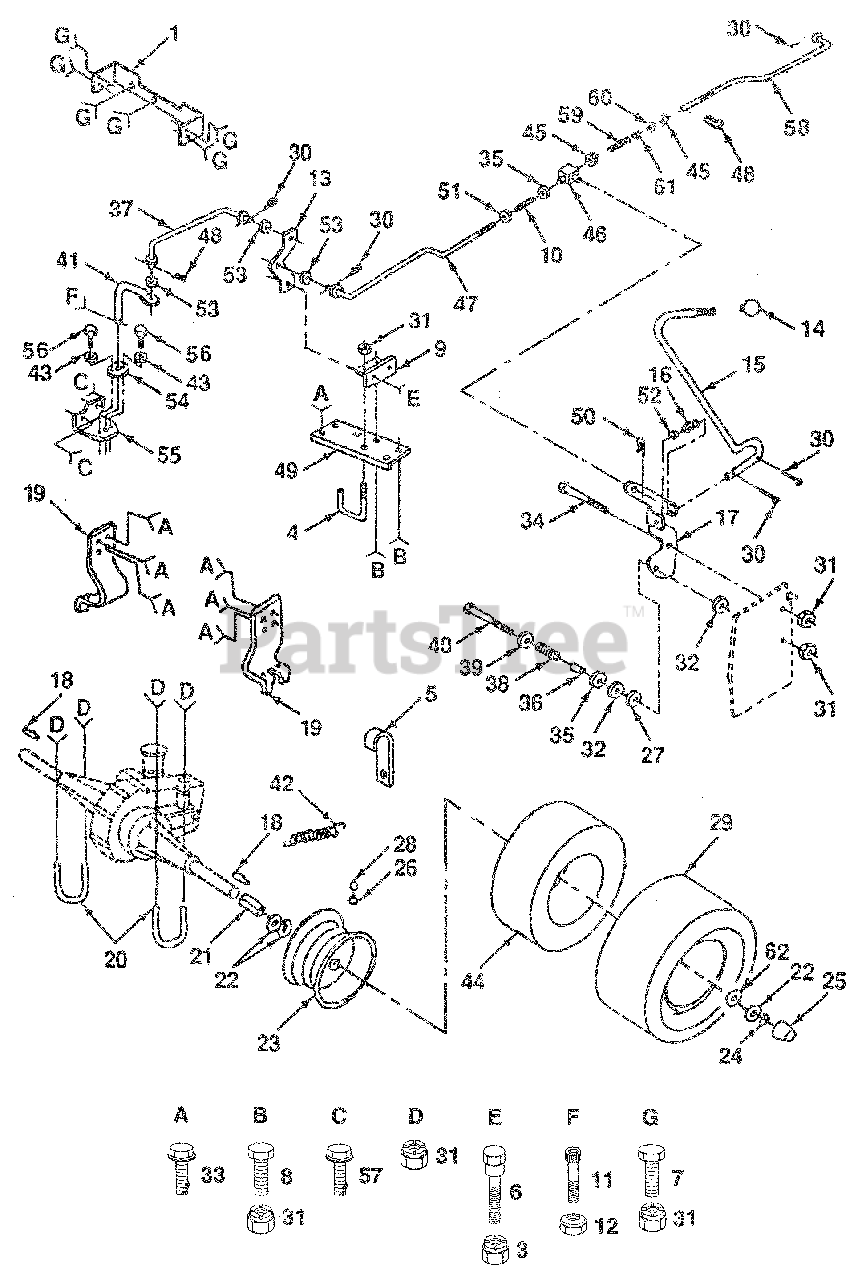

Transaxle And Rear Wheel Parts Diagram

  • Title

1

Husqvarna 121187X

Bracket, Mounting, Hydro Transaxle, Agri-Fab, Hydro, Model

$

$

Currently unavailable

2

Husqvarna 121431X

Number 121431X

$

$

Not available

3

Husqvarna 73680500

Nut, Crownlock 5/16-18

$

$

Not available

4

Husqvarna 121190X

Keeper, Centerspan

$

$

Currently unavailable

5

Husqvarna 2751R

Clip, Fuel Line

$

$

Not available

6

Husqvarna 100536K

Bolt, Shoulder 5/16-18

$

$

Currently unavailable

7

Husqvarna 74780812

Bolt, Hex Fin 3/8-16 UNC x 3/4

$

$

Currently unavailable

8

Husqvarna 74760616

Bolt, Hex Fin 3/8-16 UNC x 1

$

$

Not available

9

Husqvarna 121206X

Bracket, Bellcrank, Pivot

$

$

Currently unavailable

10

Husqvarna 102670X

Spring, Compression

$

$

Currently unavailable

11

Husqvarna 74581014

Screw, Hex Socket Head #10-24 UNC

$

$

Currently unavailable

12

Husqvarna 69180

lockout #10-24
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 121204X

Bellcrank

$

$

Currently unavailable

14

Husqvarna 121274X

Knob, Control
(Superseded to 532121274)

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 110845X

Rod, Control
(Superseded to 532110845)

$8.99

$

Usually ships in 3-10 days

0

16

Husqvarna 121631X

Spring, Torsion

$

$

Currently unavailable

17

Husqvarna 108196X

Bracket, Control Rod

$

$

Currently unavailable

18

Husqvarna 123583X

Key, Square 2.5 x .1845/. 1865
(Superseded to 532123583)

$4.99

$

In Stock, only 3 left!

0

19

Husqvarna 126649X

Bracket, Transaxle

$

$

Not available

20

Husqvarna 121189X

U-Bolt 3/8-16 x 2-7/8

$

$

Currently unavailable

21

Husqvarna 121199X

Spacer, Split

$

$

Not available

22

Husqvarna 121749X

Washer 25/32 x 1-1/4 x 16 Gauge
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 106108X361

Rim, Rear

$

$

Not available

24

Husqvarna 12000001

E-Ring
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 104757X

Cap, Axle

$

$

Not available

26

Husqvarna 65139

Stem, Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

27

Husqvarna 108972X

Washer, Phenolic

$

$

Currently unavailable

28

Husqvarna 59192

Cap, Valve
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

29

Husqvarna 122082X

Tire, Rear

$

$

Not available

30

Husqvarna 76020412

Pin, Cotter 1/8 x 3/4

$

$

Not available

31

Husqvarna 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 108200X

Spacer, Nylon 1-1/2 x .65 ID x .185 THK

$

$

Currently unavailable

33

Husqvarna 17490612

Screw, Hex Washer Head, Thd., Roll, 3/8-16 x 3/4

$

$

Not available

34

Husqvarna 108518X

Bolt, Shoulder 3/8-16 x 1-3/8

$

$

Currently unavailable

35

Husqvarna 19212016

Washer 21/32 x 1-1/4 x 16 Gauge
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 108201X

Spacer 13/32 x 5/8 x 2-1/2

$

$

Currently unavailable

37

Husqvarna 121202X

Link, Control

$

$

Currently unavailable

38

Husqvarna 108844X

Spring, Compression

$

$

Currently unavailable

39

Husqvarna 19132012

Washer 13/32 x 1-1/4 x 12 Gauge
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 74760648

Bolt, Hex 3/8-16 x 3
(Superseded to 583614301)

$

$

Not available

41

Husqvarna 121209X

Arm Assembly, Pump Control

$

$

Currently unavailable

42

Husqvarna 110422X

Spring, Brake Return

$

$

Not available

43

Husqvarna 19070816

Washer 7/32 x 1/2 x 16 Gauge
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

44

Husqvarna 7152J

Tube, Tire
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

45

Husqvarna 73800600

Lockout, Hex w/Washer Insert 3/8-16 UNC

$

$

Not available

46

Husqvarna 108212X

Trunnion
(Superseded to 532108212)

$18.99

$

Usually ships in 3-10 days

0

47

Husqvarna 121750X

Rod, Control, Adjustable
(Superseded to 532121750)

$47.99

$

Usually ships in 3-10 days

0

48

Husqvarna 4497H

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

49

Husqvarna 123186X

Bracket, Chassis Reinforcement, Hydro

$

$

Currently unavailable

50

Husqvarna 4921H

Spring, Retainer
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 19131212

Washer 13/32 x 3/4 x 12 Gauge

$2.99

$

Usually ships in 3-10 days

0

52

Husqvarna 19151516

Washer 15/32 x 15/16 x 16 Gauge

$

$

Not available

53

Husqvarna 110739X

Washer, Spring
(Superseded to 532110739)

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 121217X

Guide, Control

$

$

Currently unavailable

55

Husqvarna 121216X

Bracket, Control Guide

$

$

Currently unavailable

56

Husqvarna 17021010

Screw Tap Hex #10-24 x .625

$

$

Not available

57

Husqvarna 17490512

Screw, Thdrol 5/16 -18 x 3/4

$

$

Not available

58

Husqvarna 132654

Rod, Brake

$

$

Not available

59

Husqvarna 106888X

Spring, Brake Rod

$

$

Not available

60

Husqvarna 19131316

Washer 13/32 x 13/16x16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

61

Husqvarna 73350600

Nut, Hex, Jam 3/8-16 UNC

$

$

Not available

62

Husqvarna 121748X

Washer 25/32 x 1 -5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0
