WP 18 H44A - Winston Pro Yard Tractor (1992-02) Steering And Front Axle Parts Diagram

Yard Tractor

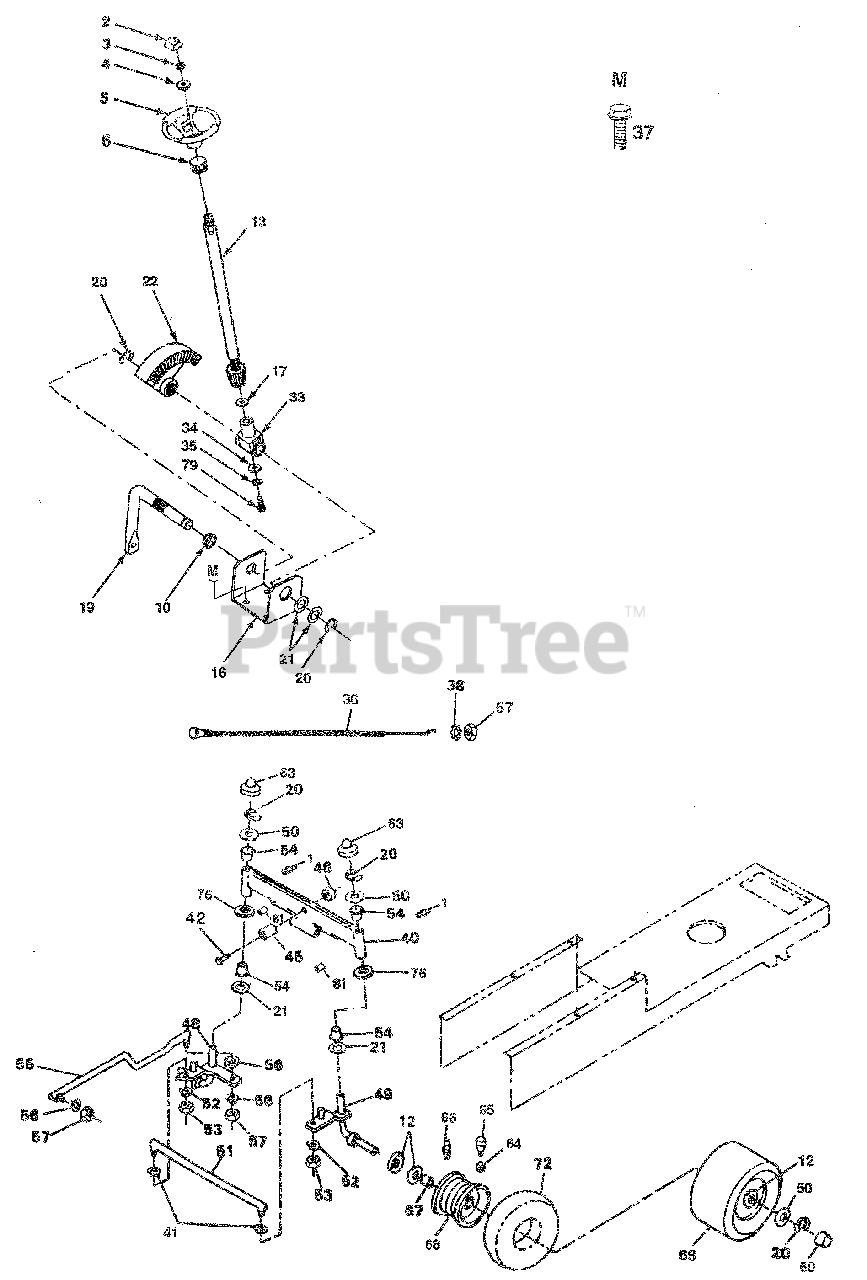

Steering And Front Axle Parts Diagram

  • Title

1

Husqvarna 8855M

Fitting, Grease

$

$

Currently unavailable

2

Husqvarna 126805X

Insert, Wheel, Steering

$

$

Not available

3

Husqvarna 73940800

lockout, Top 1/2-20 UNF
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

4

Husqvarna 100712K

Washer

$

$

Not available

5

Husqvarna 121472X

Wheel, Steering
(Superseded to 583665601)

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 100711L

Adapter, Wheel, Steering

$

$

Not available

10

Husqvarna 109816X

Nyliner, Snap In
(Superseded to 532109816)

$6.49

$

In Stock, only 2 left!

0

12

Husqvarna 121749X

Washer 25/32 x 1-1/4 x 16 Gauge
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 128782

Shaft, Steering

$

$

Not available

16

Husqvarna 124036X

Bracket, Steering
(Superseded to 532124036)

$

$

Not available

17

Husqvarna 57079

Washer, Thrust
(Superseded to 532057079)

$6.49

$

In Stock, Qty 12

0

19

Husqvarna 127501

Shaft, Pitman

$

$

Currently unavailable

20

Husqvarna 12000029

Ring, Klip
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 6266H

Bearing, Thrust
(Superseded to 532006266)

$7.49

$

In Stock, Qty 14

0

22

Husqvarna 124034X

Gear, Sector

$

$

Not available

33

Husqvarna 124035X

Support, Shaft

$

$

Not available

34

Husqvarna 126684X

Washer, Shim 1/4 x 5/8 x .062

$

$

Not available

35

Husqvarna 10040400

Washer, Lock Hvy. Helical 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

36

Husqvarna 132781

Control, Choke
(Superseded to 532132781)

$

$

Not available

37

Husqvarna 17490612

Screw, Hex Wsh. Thd. Roll. 3/8-16 x 3/4

$

$

Not available

38

Husqvarna 11050600

Washer, Lock, Int/Ext. Tooth 3/8

$

$

Not available

40

Husqvarna 108075X

Axle, Front

$

$

Currently unavailable

41

Husqvarna 19111216

Washer 11/32 x 3/4 x 16 Gauge

$0.99

$

Usually ships in 3-10 days

0

42

Husqvarna 74011056

Bolt 5/8-11 x 3-1/2
(Superseded to 874011056)

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 110438X

Bearing, Spacer, Axle, Front

$

$

Currently unavailable

46

Husqvarna 73601000

Locknut, Hex with Washer Insert 5/8-16

$

$

Not available

48

Husqvarna 135227

Spindle, LH

$

$

Currently unavailable

49

Husqvarna 135228

Spindle, RH

$

$

Currently unavailable

50

Husqvarna 121748X

Washer 25/32 x 1-5/8 x 16 Gauge
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

51

Husqvarna 130467

Rod, Tie

$

$

Currently unavailable

52

Husqvarna 10040500

Washer, Lock, Heavy Helical Spring
(Superseded to 810040500)

$3.99

$

In Stock, only 4 left!

0

53

Husqvarna 73810500

Nut, Hex, Nylon 5/16-24 UNF

$2.99

$

Usually ships in 3-10 days

0

54

Husqvarna 3366R

Bearing
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 130468

Link, Drag
(Superseded to 532130468)

$93.99

$

In Stock, only 1 left!

0

56

Husqvarna 10040600

Washer, Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 73610600

Nut, Hex 3/8-24

$

$

Not available

60

Husqvarna 104757X

Cap, Axle, Front

$

$

Not available

63

Husqvarna 121232X

Cap, Spindle
(Superseded to 532121232)

$4.99

$

In Stock, Qty 8

0

64

Husqvarna 59192

Cap, Valve
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

65

Husqvarna 65139

Stem, Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

86

Husqvarna 278H

Fitting, Grease
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

67

Husqvarna 9040H

Bearing
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

68

Husqvarna 106732X361

Rim, Front

$

$

Not available

69

Husqvarna 106222X

Tire, Front

$

$

Not available

72

Husqvarna 59904

Tube, Tire, Front
(Superseded to 532059904)

$37.99

$

In Stock, Qty 9

0

76

Husqvarna 19272018

Washer 27/32 x 1-1/4 x 16 Gauge

$

$

Currently unavailable

79

Husqvarna 71070410

Screw, Socket Hex 1/4-20 x 5/8

$

$

Not available

81

Husqvarna 132624

Pin, Axle

$

$

Currently unavailable
