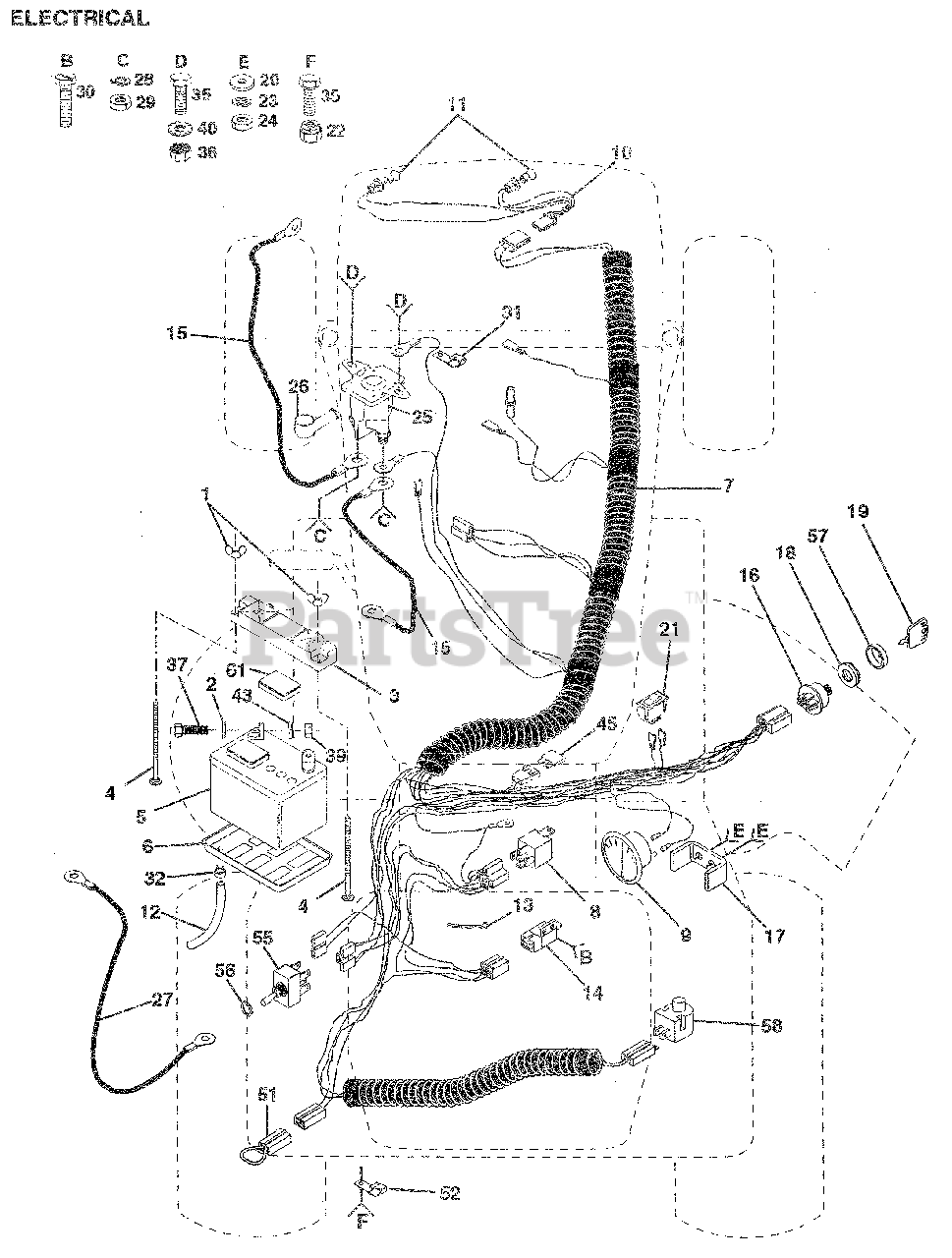

WP 18 H44A - Winston Pro Yard Tractor (1992-02) Electrical Parts Diagram

Yard Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 123198X

Wing Nut 1/4-20

$

$

Not available

2

Husqvarna 19091018

Washer 9/32 x 5/8 x 16 Ga

$

$

Currently unavailable

3

Husqvarna 102476X

Guard, Terminal

$

$

Not available

4

Husqvarna 72240480

Battery Bolt 1/4-20 x 7-1/2

Note: (Bolt, Carriage, Rd. Hd. Sq, Neck)

$

$

Currently unavailable

5

Husqvarna 121537X

Battery

$

$

Not available

6

Husqvarna 7603J

Battery Tray
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 136236

Harness, Ignition
(Superseded to 582951101)

Note: (includes item 8)

$122.99

$

Usually ships in 3-10 days

0

8

Husqvarna 109748X

Relay
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0

9

Husqvarna 9433R

Ammeter
(Superseded to 532124900)

$45.99

$

Usually ships in 3-10 days

0

10

Husqvarna 127441X

Harness, Light Socket

$

$

Currently unavailable

11

Husqvarna 7662J

Bulb, Light

$

$

Not available

12

Husqvarna 100541K

Tube, Battery Tray

$

$

Not available

13

Husqvarna 7192J

Cable Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 109553X

Switch, Interlock, Clutch

$

$

Not available

15

Husqvarna 4206J

Cable, Battery

Note: (Battery to Solenoid)

$

$

Not available

16

Husqvarna 102972X

Ignition Switch

$

$

Currently unavailable

17

Husqvarna 131708

Bracket, Ammeter

$

$

Not available

18

Husqvarna 14211X

Nut, Ignition

$

$

Currently unavailable

19

Husqvarna 122147X

Key
(Superseded to 532122147)

$

$

Not available

20

Husqvarna 19070818

Washer 7/32 x 1/2 x 18 Gauge

$

$

Not available

21

Husqvarna 110712X

Switch, Light
(Superseded to 532110712)

$9.49

$

In Stock, only 2 left!

0

22

Husqvarna 73680400

Nut, Crownlock 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

23

Husqvarna 10101000

Washer, Lock

$

$

Not available

24

Husqvarna 73911000

Nut

$

$

Not available

25

Husqvarna 109081X

Solenoid

$

$

Not available

26

Husqvarna 131568

Terminal Cover

$

$

Currently unavailable

27

Husqvarna 4207J

Cable, Battery
(Superseded to 532004207)

Note: (Battery to Ground)

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 10090400

Washer, Lock

$

$

Not available

29

Husqvarna 73350400

Nut, Hex Jam 1/4 x 20 UNC

$2.49

$

Usually ships in 3-10 days

0

30

Husqvarna 17021008

Screw, Tap, Hex Hd. #10-24 UNC

$

$

Not available

31

Husqvarna 2751R

Clip, Fuel Line

$

$

Not available

32

Husqvarna 109598X

Clamp, Hose

$

$

Not available

35

Husqvarna 74780408

BoIt.Hex 1/4-20 x 1/2 Gr. 5

$1.49

$

Usually ships in 3-10 days

0

36

Husqvarna 73510400

Nut, Keps, Hex 1/4-20

$

$

Not available

37

Husqvarna 74780412

Bolt, Hex i/4-20 x 3/4

$

$

Not available

39

Husqvarna 73220400

Nut, Hex 1/4-20

$

$

Not available

40

Husqvarna 11050400

Washer, Lock 1/4 Ext. Tooth

$2.49

$

Usually ships in 3-10 days

0

43

Husqvarna 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

45

Husqvarna 108824X

Fuse, 30 Amp.
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 102501X

Loop, Wire Tiller Attachment

$

$

Currently unavailable

52

Husqvarna 235R

Clip, Insulated
(Superseded to 583730001)

$2.99

$

Usually ships in 3-10 days

0

55

Husqvarna 126016X

Switch PTO

$

$

Not available

56

Husqvarna 4022J

Nut, Hex

$

$

Not available

57

Husqvarna 123620X

Coyer Serv Key

$

$

Not available

58

Husqvarna 121305X

Switch, Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

61

Husqvarna 121264X

Caps, Battery Set

$

$

Not available
