WP 18 H44A - Winston Pro Yard Tractor (1992-02) Agri-Fab Transaxle - - Model Number 121431X Parts Diagram

Yard Tractor

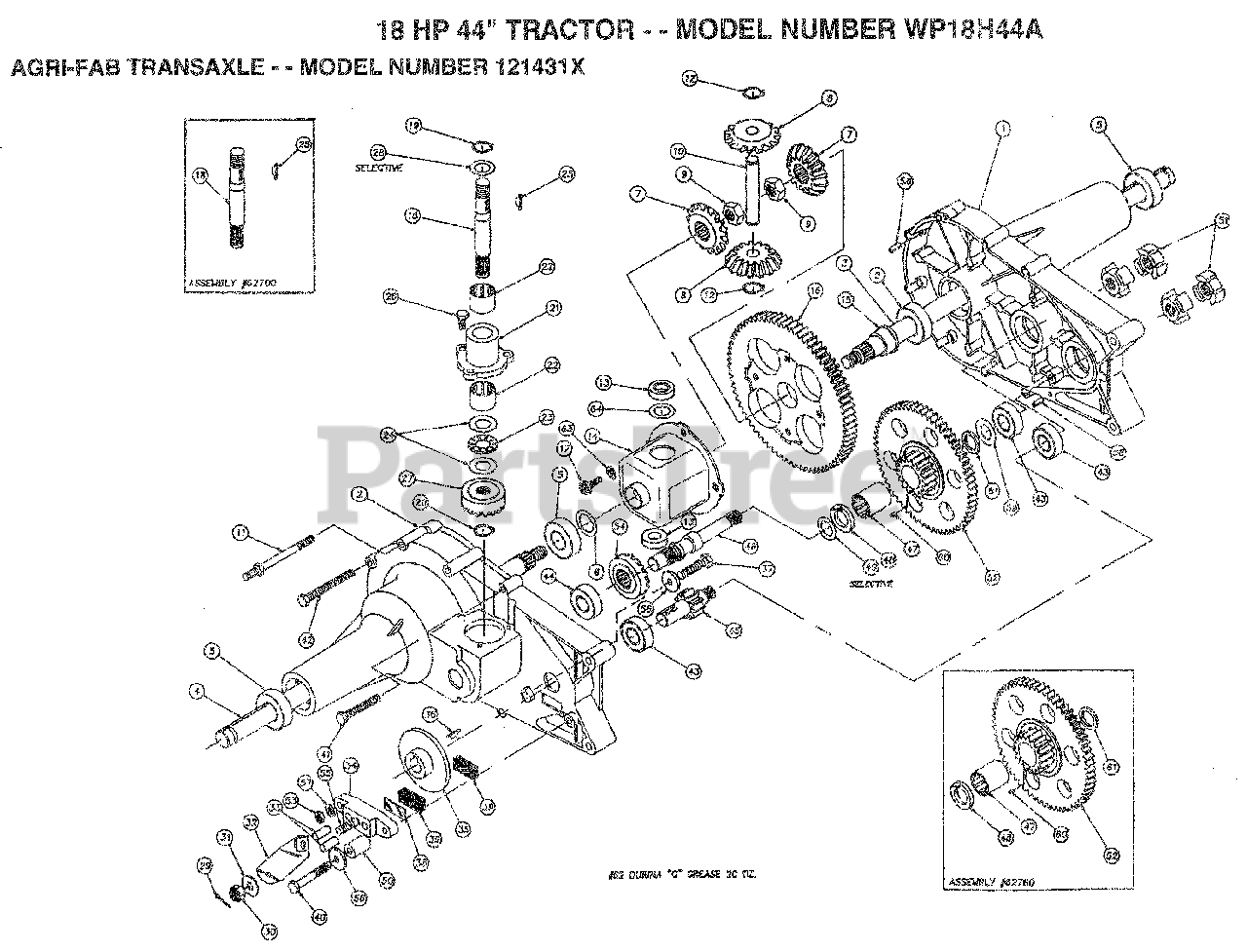

Agri-Fab Transaxle - - Model Number 121431X Parts Diagram

  • Title

1

Husqvarna 122614X

Housing, Half L.H.
(Superseded to 532122614)

$

$

Not available

2

Husqvarna 122615X

Housing, Half R.H.
(Superseded to 532122615)

$

$

Not available

3

Husqvarna 122616X

Axle L.H.

$

$

Not available

4

Husqvarna 122620X

Axle R.H,

$

$

Not available

5

Husqvarna 122621X

Bearing, Ball
(Superseded to 532122621)

$

$

Not available

6

Husqvarna 122822X

Washer, Flat 3/4 x 1-1/8 x .030
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

7

Husqvarna 122623X

Gear, Miter
(Superseded to 532122623)

$

$

Not available

8

Husqvarna 122624X

Gear, Miter
(Superseded to 532122624)

$

$

Not available

9

Husqvarna 122625X

Nut, Hex Jam w/Patch 1/2-20
(Superseded to 584282101)

$

$

Not available

10

Husqvarna 122626X

Shaft, Cross

$

$

Not available

11

Husqvarna 122688X

Screw, Stud
(Superseded to 532122688)

$

$

Not available

12

Husqvarna 122629X

Snap, Ring
(Superseded to 532122629)

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 122631X

Bearing, Thrust
(Superseded to 532122631)

$

$

Not available

14

Husqvarna 122833X

Housing Assembly, Differential

$

$

Currently unavailable

15

Husqvarna 122834X

Bearing, Flange

$

$

Currently unavailable

16

Husqvarna 122640X

Gear, Differential 72 Tooth

$

$

Not available

17

Husqvarna 122641X

Bolt, Torx Head 1/4-28 x 5/8"

$

$

Not available

18

Husqvarna 122642X

Shaft, Input

$

$

Not available

19

Husqvarna 122643X

Snap, Ring

$

$

Not available

20

Husqvarna 122844X

Retaining Ring 7/16"

$

$

Currently unavailable

21

Husqvarna 122845X

Housing, Input Bearing

$

$

Currently unavailable

22

Husqvarna 122646X

Bearing, Needle

$

$

Not available

23

Husqvarna 122847X

Bearing, Thrust

$

$

Currently unavailable

24

Husqvarna 122648X

Washer, Flat 6/8 x 1-1/8 x ,030
(Superseded to 532122648)

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 122849X

Key, Hi-Pro 3/32 x 5/8

$

$

Currently unavailable

28

Husqvarna 122850X

Screw, Hex W/Patch 1/4-20 x 3/4

$

$

Currently unavailable

27

Husqvarna 122651X

Gear, Input Pinion 17 Tooth
(Superseded to 532122651)

$

$

Not available

28

Husqvarna 123061X

Washer, Flat .62 x 1 x ,05

$

$

Not available

Husqvarna 122678X

Washer, Fiat ,62 x 1,125 x .060

$

$

Not available

Husqvarna 122854X

Washer, Flat .82 x 1 x .040

$

$

Currently unavailable

29

Husqvarna 122656X

Pin, Cotter

$

$

Not available

30

Husqvarna 122858X

Nut, Castle 5/18-24

$

$

Currently unavailable

31

Husqvarna 122659X

Washer, Fiat .343 x .88 x .062

$

$

Not available

32

Husqvarna 122660X

Arm, Brake Actuator
(Superseded to 532122660)

$12.99

$

Usually ships in 3-10 days

0

33

Husqvarna 122682X

Pin, Brake Actuating

$

$

Not available

34

Husqvarna 122663X

Brake, Yoke

$2.99

$

Usually ships in 3-10 days

0

35

Husqvarna 122684X

Disc, Brake

$

$

Not available

38

Husqvarna 123065X

Key, Hi-Pro 3/16 x 5/8"

$

$

Not available

37

Husqvarna 122666X

Screw, Hex 1/4-20 x 1.50

$

$

Not available

38

Husqvarna 122687X

Plate, Puck
(Superseded to 532122687)

$

$

Not available

39

Husqvarna 122688X

Puck, Brake
(Superseded to 532122688)

$

$

Not available

40

Husqvarna 123068X

Screw, Hex w/Patch 1/4-20 x 2.00

$

$

Currently unavailable

41

Husqvarna 122670X

Screw, Hex Self-Tap 1/4-20 x 2.00
(Superseded to 532122670)

$

$

Not available

42

Husqvarna 122871X

Screw, Hex Self-Tap 1/4-20 x 3.00

$

$

Currently unavailable

43

Husqvarna 126982X

Bearing, Ball

$

$

Not available

44

Husqvarna 122673X

Bearing, Bail
(Superseded to 532122673)

$

$

Not available

45

Husqvarna 122674X

Shaft, Pinion W/11 Tooth Gear
(Superseded to 532122674)

$

$

Not available

46

Husqvarna 122675X

Shaft, Drive

$

$

Not available

47

Husqvarna 123059X

Bearing, Needle
(Superseded to 532123059)

$

$

Not available

48

Husqvarna 123060X

Bronze Thrust Brg. 5/8 x 1-1/4 x 7/64
(Superseded to 532123060)

$

$

Not available

49

Husqvarna 122654X

Washer, Fiat .62 x 1.0 x ,040
(Superseded to 532122654)

$

$

Not available

Husqvarna 123061X

Washer, Flat ,62 x 1.0 x .050

$

$

Not available

50

Husqvarna 122689X

Spacer

$

$

Not available

51

Husqvarna 121839X

Coupling
(Superseded to 532121839)

$18.99

$

Usually ships in 3-10 days

0

52

Husqvarna 126975X

Gear, 60 and 17 Tooth

$

$

Not available

53

Husqvarna 122882X

Nut, Hex 1/4-20

$

$

Currently unavailable

54

Husqvarna 122683X

Gear, Drive Pinion 17 Tooth

$

$

Not available

55

Husqvarna 122684X

Bolt, Square Head

$

$

Not available

56

Husqvarna 122885X

Washer 15/16 x.265 x . 125

$

$

Currently unavailable

57

Husqvarna 122686X

Washer, Spring Lock 1/4"

$

$

Not available

58

Husqvarna 122687X

Pin, Roll 3/16" x 1/2"
(Superseded to 532122687)

$

$

Not available

59

Husqvarna 122652X

Washer, Flat .62 x 1,0 x .030
(Superseded to 532122652)

$

$

Not available

80

Husqvarna 123062X

Pin, Dowel 3/32 x 1/4

$2.49

$

Usually ships in 3-10 days

0

81

Husqvarna 123063X

Seal, Grease

$

$

Not available

62

Husqvarna 126976X

Shell, Durina-O Grease (20 oz.)

$

$

Not available

63

Husqvarna 126977X

Washer, Head Spring Lock 1/4"

$

$

Not available

64

Husqvarna 128978X

Washer, Fiat .50 x 1.0 x .020

$

$

Currently unavailable

Husqvarna 126979X

Washer, Fiat .50 x 1.0 x .030

$

$

Not available

65

Husqvarna 126980X

Assembly, Gear, Reduction

$

$

Currently unavailable

86

Husqvarna 126981X

Assembly, Shaft, Input

$

$

Not available

Husqvarna 121431X

Transaxle Assembly Complete

$

$

Not available
