WP-1500 - Echo Water Pump (SN: 02432 - 99999) Ignition, Starter, Stop Switch, Fan Housing Parts Diagram

Water Pump

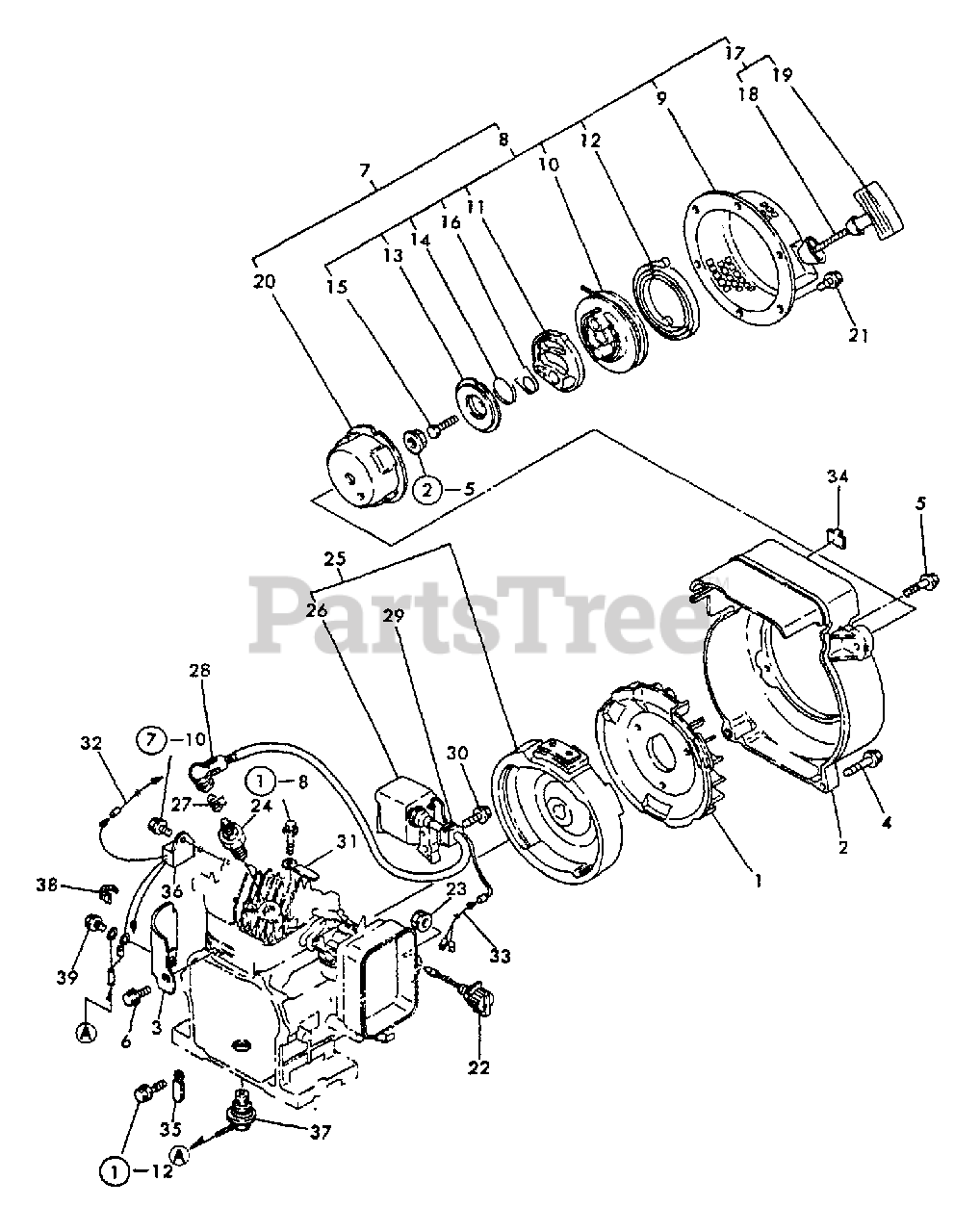

Ignition, Starter, Stop Switch, Fan Housing Parts Diagram

  • Title

1

Echo Y16066445010

FAN
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16066445110

COVER, FAN
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16066445210

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

4

Echo Y26476060252

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available

5

Echo Y26476060302

BOLT - 6X30
(Superseded to Discontinued)

$

$

Not available

6

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16066476050

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16066476260

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16066476510

STARTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16066476520

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16066476530

RATCHET
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16066776540

SPRING
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16066476580

PLATE, FRICTION
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16066776560

SPRING, FRICTION
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16066776570

BOLT
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16066776550

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16066476610

ROPE ASSY
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16066476620

ROPE
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16066476630

GRIP, STARTER
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16066476590

PULLEY, STARTER
(Superseded to Discontinued)

$

$

Not available

21

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0

22

Echo Y16061177250

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

23

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

24

Echo 16052078010

SPARK PLUG -- BPM-4A
(Superseded to Discontinued)

$

$

Not available

25

Echo Y16066778060

FLYWHEEL MAGNETO ASSY
(Superseded to Discontinued)

$

$

Not available

26

Echo Y16066778510

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

27

Echo Y16070078050

TERMINAL, SPARK PLUG CAP
(Superseded to Discontinued)

$

$

Not available

28

Echo Y16052078050

CAP, SPARK PLUG

$

$

Currently unavailable

29

Echo Y16070078720

GROMMET
(Superseded to Discontinued)

$

$

Not available

30

Echo Y26476060252

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available

31

Echo Y16071078710

CLAMP
(Superseded to Discontinued)

$

$

Not available

32

Echo Y16066478200

WIRE
(Superseded to Discontinued)

$

$

Not available

33

Echo Y16067178200

WIRE
(Superseded to Discontinued)

$

$

Not available

34

Echo Y16056078700

CLAMP
(Superseded to Discontinued)

$

$

Not available

35

Echo Y16071078710

CLAMP
(Superseded to Discontinued)

$

$

Not available

36

Echo Y16064178810

SENSOR, OIL
(Superseded to Discontinued)

$

$

Not available

37

Echo Y16077078820

SENSOR, OIL LEVEL
(Superseded to Discontinued)

$

$

Not available

38

Echo Y16037078950

CLAMP
(Superseded to Discontinued)

$

$

Not available

39

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0
