WP 14542 F - Winston Pro Lawn Tractor (1999) STEERING ASSEMBLY Parts Diagram

Lawn Tractor

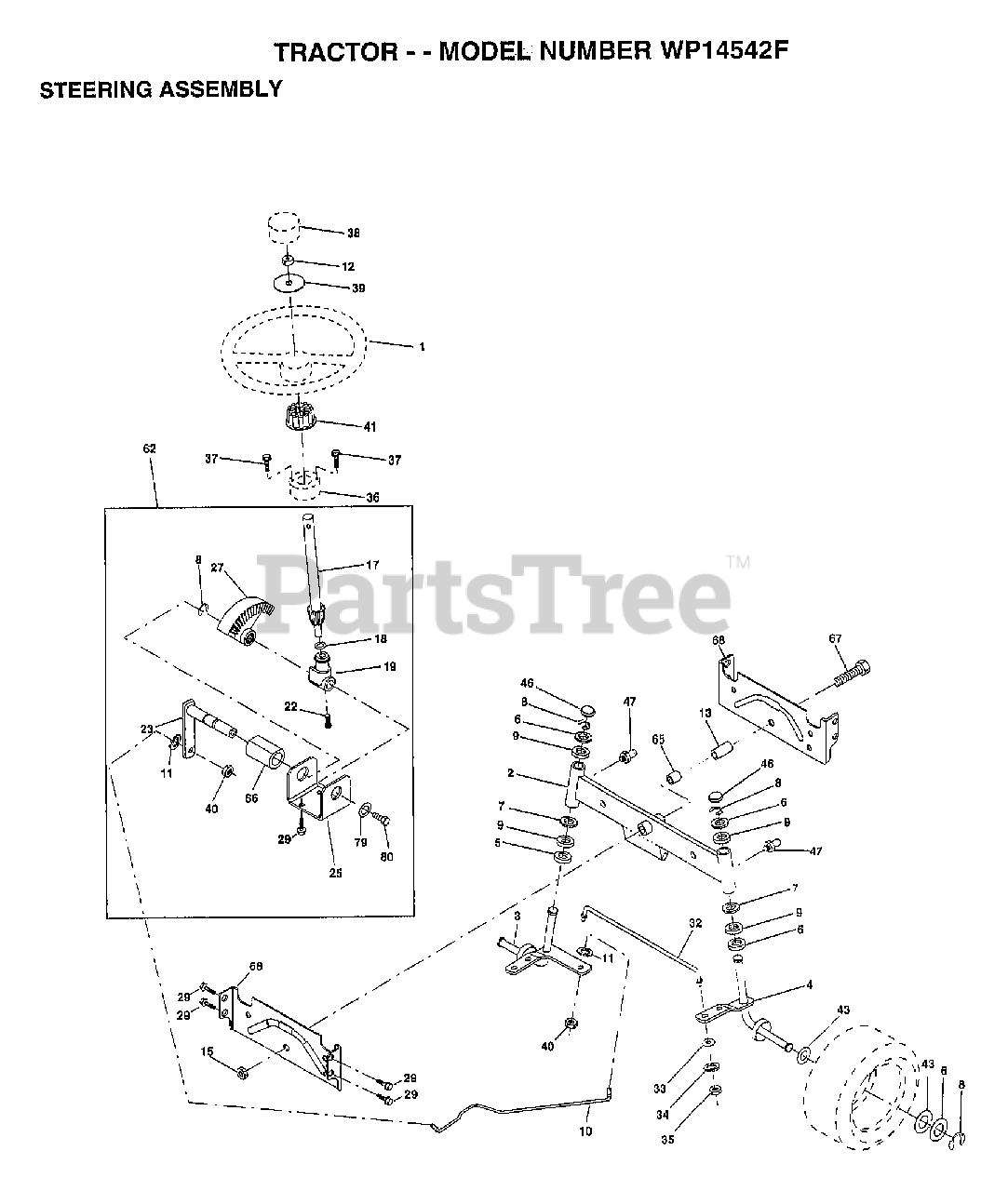

STEERING ASSEMBLY Parts Diagram

  • Title

1

Electrolux/AYP 121472X

SUB= 150546

$

$

Not available

2

Electrolux/AYP 154427

AXLE ASM
(Superseded to 532418168)

$46.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 156483

SPINDLE.ASM.LH
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 157473

"SPINDLE ASM,RH"
(Superseded to 532157473)

$26.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

6

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19272016

WASHER
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 156438

DRAGLINK-STAMPED
(Superseded to 532156438)

$93.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 73940800

SUB= 73360800
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

13

Electrolux/AYP 154779

BEARING AXLE
(Superseded to 532154779)

$10.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 156543

SHAFT ASM STEERNG
(Superseded to 532156543)

$66.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 57079

THRUST WASHER
(Superseded to 532057079)

$6.49

$

In Stock, Qty 11

0

19

Electrolux/AYP 160395

SUPPORT.SHAFT.STEER
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

22

Electrolux/AYP 165857

SCREW.HX.WSH.HD
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

23

Electrolux/AYP 165851

SHAFT.ASM.PITMAN
(Superseded to 532165851)

$22.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 154406

BRKT-STEERING
(Superseded to 532154406)

$8.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 136874

GEAR SECTOR
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

32

Electrolux/AYP 139929

ROD.TIE.19.75
(Superseded to 532171888)

$68.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 145207

BUSHING.STRG.3/4
(Superseded to 532145207)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 152927

"SCREW-TT,10-32 FL"
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 126805X

"INSERT,STR WHEEL"
(Superseded to 532126805)

$

$

Not available

39

Electrolux/AYP 100712K

WASHER
(Superseded to 532100712)

$

$

Not available

40

Electrolux/AYP 7810H

GRIPCO NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 100711L

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

43

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

47

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

62

Electrolux/AYP 167905

KIT.STEER.ASM.LT
(Superseded to 532167905)

$159.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 154780

SPACER AXLE
(Superseded to 532154780)

$9.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 154404

"BEARING-ARM,PITMA"
(Superseded to 532154404)

$6.49

$

In Stock, only 3 left!

0

67

Electrolux/AYP 74781044

BOLT
(Superseded to 874781044)

$

$

Not available

68

Electrolux/AYP 154429

BRACE AXLE
(Superseded to 532154429)

$21.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 74950612

BOLT.HX.NYLON3/8-16X3/
(Superseded to 874950612)

$6.49

$

In Stock, only 3 left!

0
