WP 12R38 B - Winston Pro Lawn Tractor (1993) 12 HP 38" SEAT Parts Diagram

Lawn Tractor

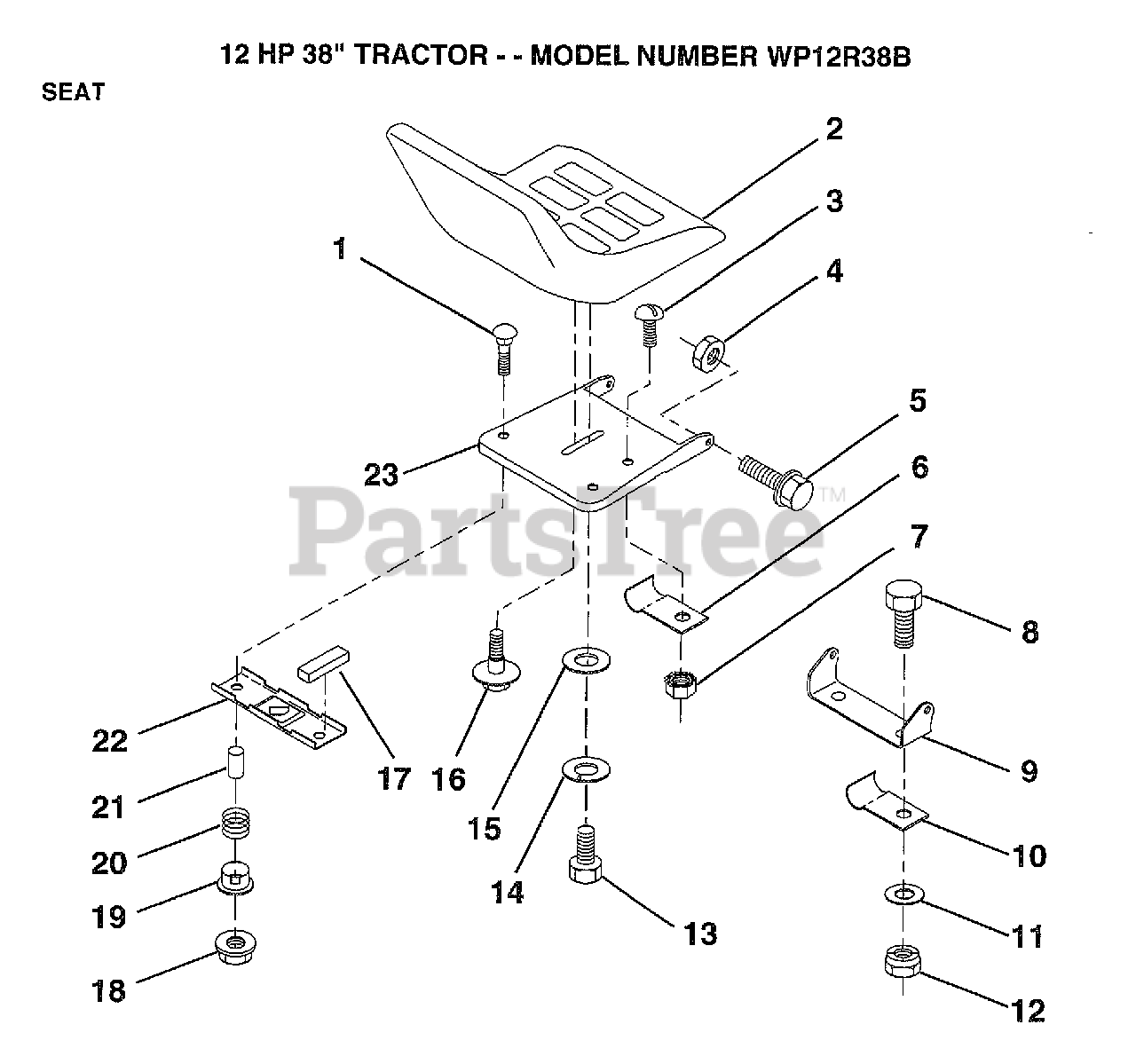

12 HP 38" SEAT Parts Diagram

  • Title
1

Electrolux/AYP 72050411

SUB= 872050411

$

$

Not available

2

Electrolux/AYP 127427

SUB= 140119

$

$

Not available

3

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

4

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

$

$

Not available

7

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

9

$

$

Not available

10

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 19133210

WASHER
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 74780814

BOLT
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040800

LOCKWASHER
(Superseded to 810040800)

$6.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 127018X

"BOLT,SHOULDER"
(Superseded to 532127018)

$7.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

18

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

19

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 121250X

SPRING
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 134300

SPLIT SPACER
(Superseded to 532134300)

$7.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 131451

SUB= 155925

$

$

Not available
