WP 1036 A - Winston Pro Lawn Tractor (1992) WHEELS AND TIRES Parts Diagram

Lawn Tractor

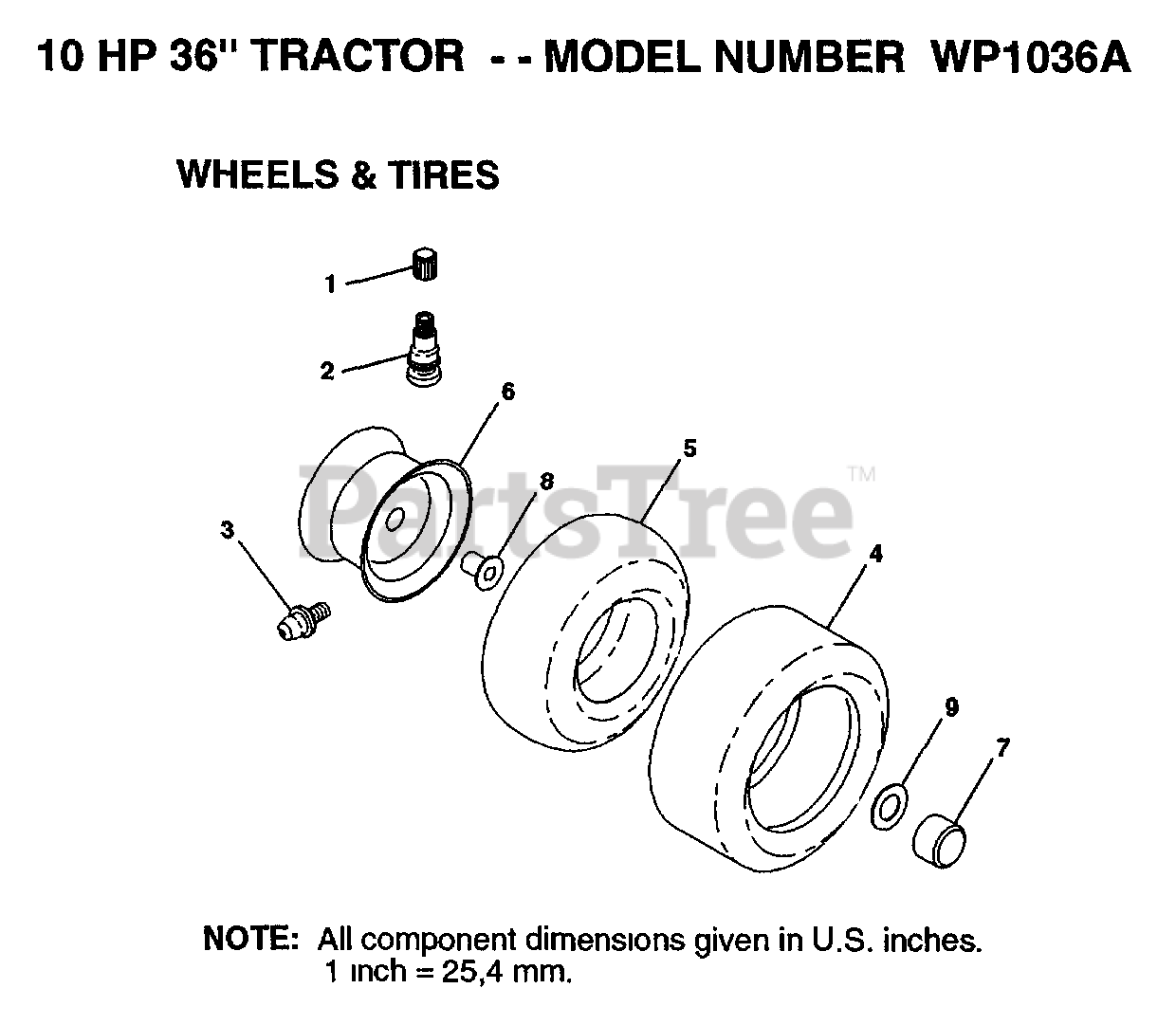

WHEELS AND TIRES Parts Diagram

  • Title
1

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

2

Electrolux/AYP 62139

STEM, VALVE

$

$

Not available

3

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 124142X

SUB= 123410X
(Superseded to 532124142)

$

$

Not available

Electrolux/AYP 124143X

SUB= 122075X
(Superseded to 532124143)

$

$

Not available

5

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 7

0

Electrolux/AYP 8134H

TUBE.16X6.5/7.5-8
(Superseded to 532008134)

$66.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 122394X311

SUB= 137237X427

$

$

Not available

Electrolux/AYP 123412X311

SUB= 123412X427

$

$

Not available

7

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0
