WP 1036 A - Winston Pro Lawn Tractor (1992) ENGINE AND THROTTLE Parts Diagram

Lawn Tractor

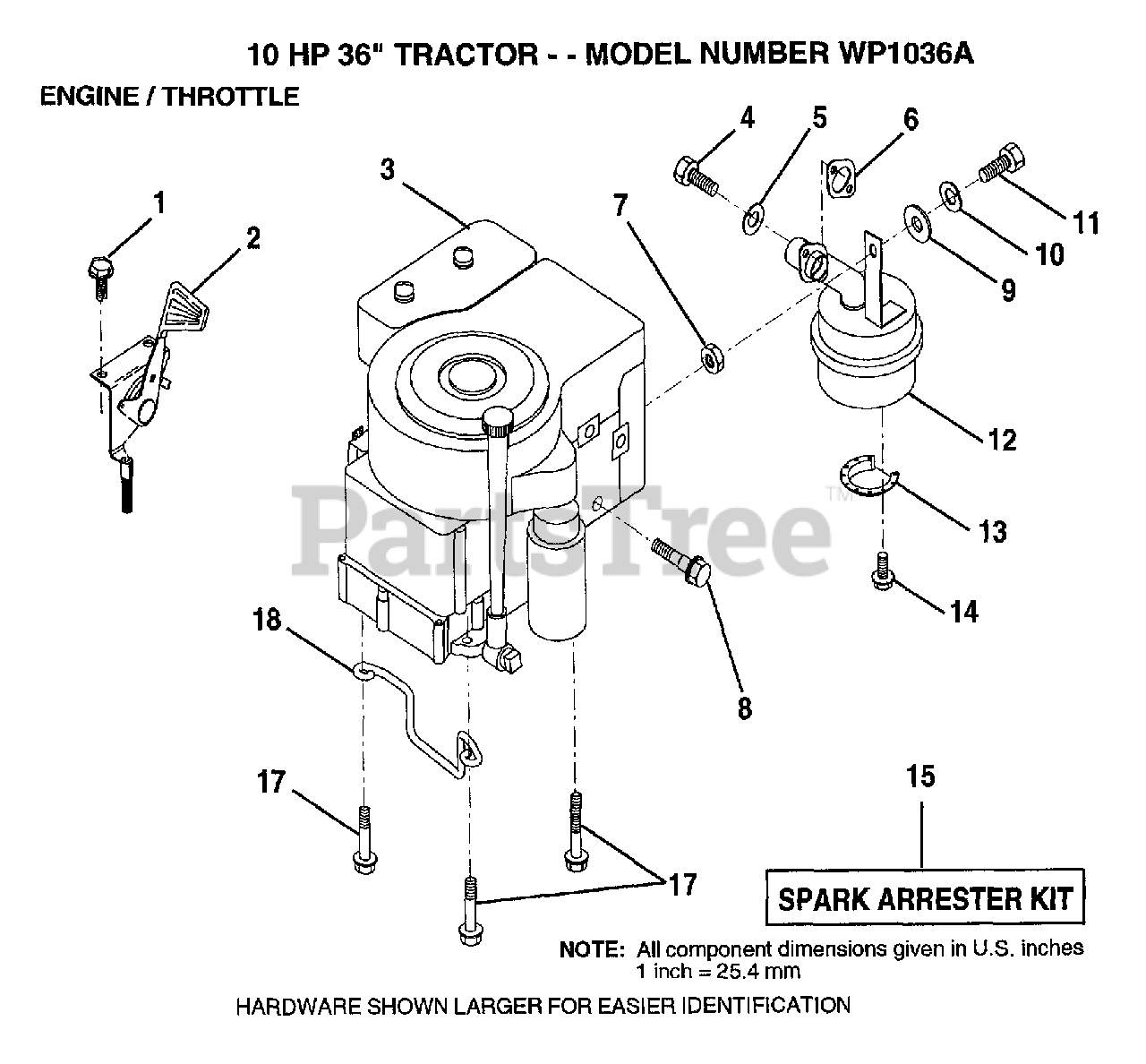

ENGINE AND THROTTLE Parts Diagram

  • Title
1

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 132521

THROTTLE CONTROL
(Superseded to 532132752)

$

$

Not available

3

REFER TO IMAGE

$

$

Not available

4

Electrolux/AYP 71070512

SCREW
(Superseded to 596134201)

$3.99

$

In Stock, Qty 17

0

5

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

6

$

$

Not available

7

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 121094X

BOLT T
(Superseded to 532121094)

$2.99

$

Usually ships in 3-10 days

0

$

$

Not available

10

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

12

Electrolux/AYP 124097X

MUFFLER
(Superseded to 532124097)

$

$

Not available

13

Electrolux/AYP 101326L

DEFLECTOR.222573
(Superseded to 532101326)

$

$

Not available

14

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

15

Electrolux/AYP 121851X

SUB= 532137180

$

$

Not available

17

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 126636X

"KEEPER,DR BELT GR"
(Superseded to 532126636)

$8.99

$

Usually ships in 3-10 days

0
