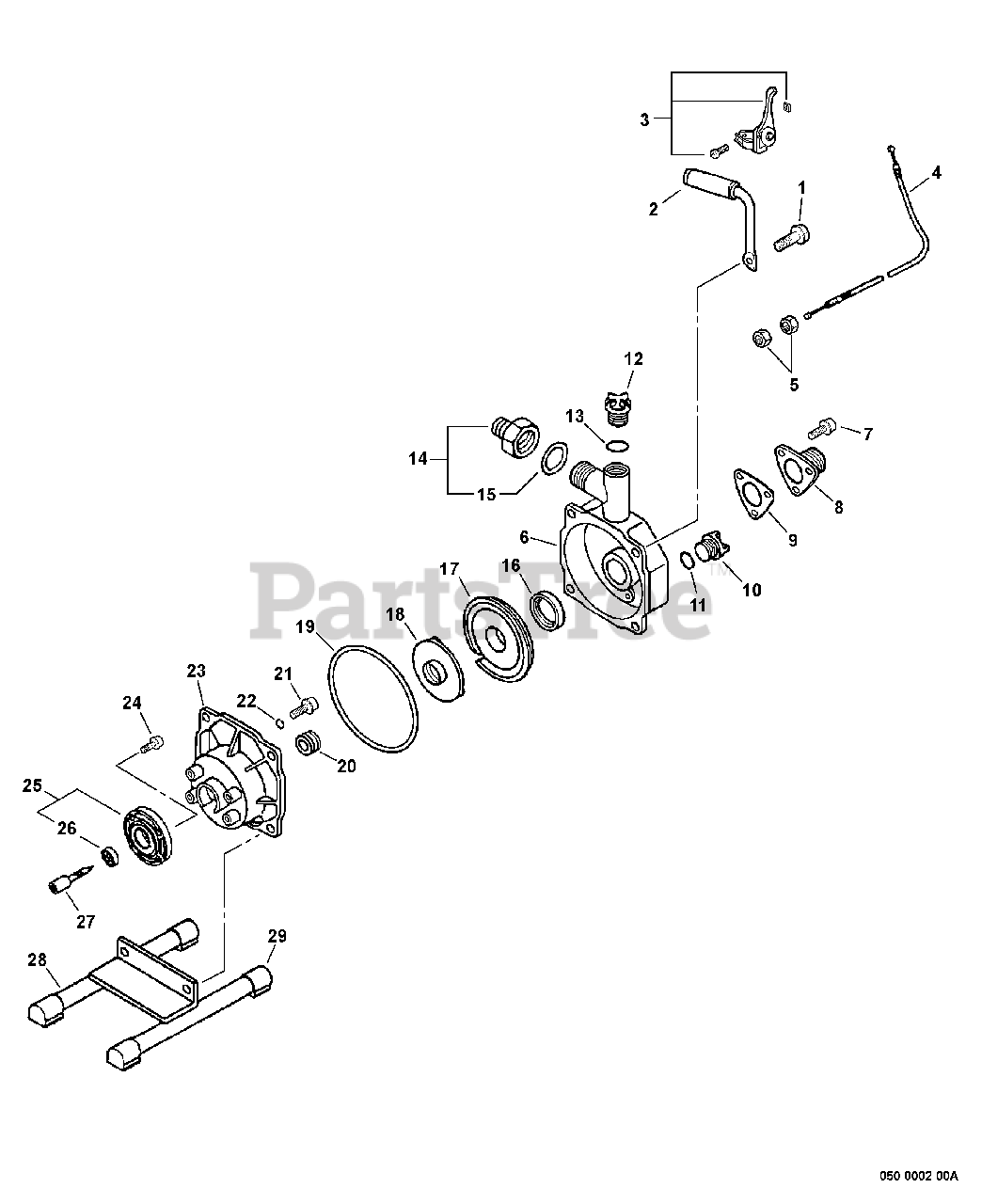

WP-1000 - Echo Water Pump (Type 1E) (USA SN: 501001 - 599999) (CAN SN: 01001-99999) Pump S/N: 512973 - 599999, Canada: 14736 - 99999 Parts Diagram

Water Pump (Type 1E)

Pump S/N: 512973 - 599999, Canada: 14736 - 99999 Parts Diagram

  • Title
1

Echo 9103208030

BOLT - 8X35 -- TAPPING
(Superseded to Discontinued)

$

$

Not available

2

$35.99

$

Usually ships in 2-4 days

0

3

Echo 17800012020

THROTTLE CONTROL KIT

$29.99

$

In Stock, only 1 left!

0

4

Echo 17800112620

CABLE, THROTTLE

$12.99

$

In Stock, Qty 5

0

5

$0.99

$

In Stock, Qty 8

0

6

Echo E203000030

CASE, PUMP

$94.99

$

Usually ships in 2-4 days

0

7

Echo 90011706020

BOLT - 6X20

$1.99

$

Usually ships in 2-4 days

0

8

Echo E262000000

CASE, CHECK VALVE

$13.99

$

Usually ships in 2-4 days

0

9

Echo E263000020

VALVE, CHECK

$22.99

$

In Stock, only 1 left!

0

10

$14.99

$

In Stock, only 1 left!

0

11

Echo 90072000024

O-RING - 24

$2.99

$

Usually ships in 2-4 days

0

12

$13.99

$

In Stock, only 1 left!

0

13

$6.49

$

Usually ships in 2-4 days

0

14

Echo 38200512621

NIPPLE - 1 X 3/4"

Note: Includes ITEM 15

$22.99

$

Usually ships in 2-4 days

0

15

$1.49

$

Usually ships in 2-4 days

0

16

$6.49

$

Usually ships in 2-4 days

0

17

Echo E203000020

CASE, IMPELLER

$112.99

$

In Stock, only 1 left!

0

18

Echo E204000030

IMPELLER

$69.99

$

Usually ships in 2-4 days

0

19

$14.99

$

Usually ships in 2-4 days

0

$71.99

$

Usually ships in 2-4 days

0

21

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, Qty 15

0

22

$1.99

$

Usually ships in 2-4 days

0

23

Echo E205000020

CASE, PUMP

$92.99

$

In Stock, only 1 left!

0

24

Echo 10020912620

PUMP ADAPTOR ASSY

Note: Includes ITEM 25

$187.99

$

Usually ships in 2-4 days

0

25

Echo 90081436201

BEARING, BALL - 6201

$12.99

$

In Stock, only 1 left!

0

26

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, Qty 15

0

27

Echo 40011212620

SHAFT, PUMP

$174.99

$

Usually ships in 2-4 days

0

28

Echo E202000080

FRAME, PUMP

$93.99

$

Usually ships in 2-4 days

0

29

$4.99

$

In Stock, Qty 6

0
