WP-1000 - Echo Water Pump (Type 1E) (SN: W15204001001 - W15204999999) Fuel System S/N: W15204003802 - W15204999999 Parts Diagram

Water Pump (Type 1E)

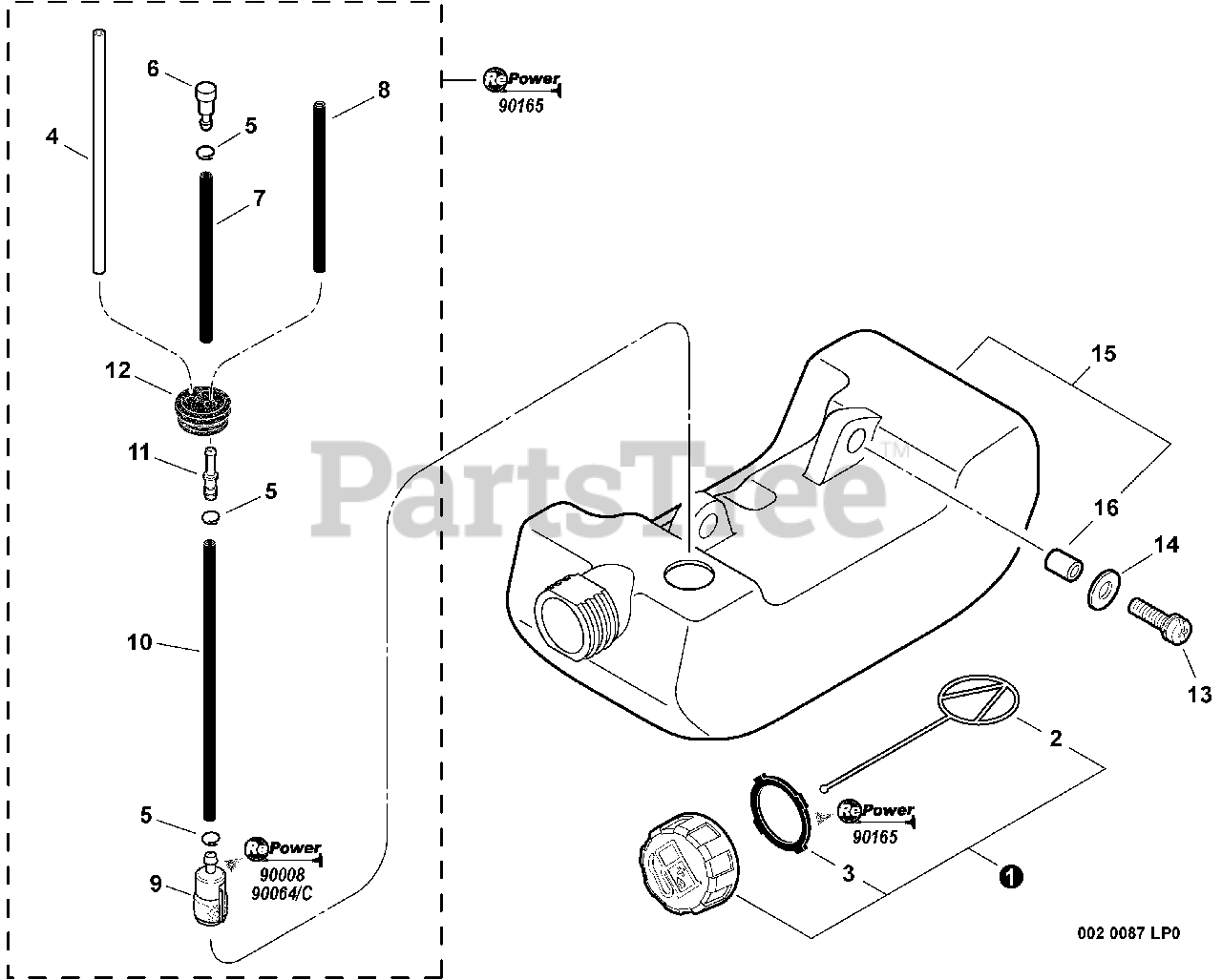

Fuel System S/N: W15204003802 - W15204999999 Parts Diagram

  • Title

1

Echo P021040030

CAP ASSY - ORANGE

Note: Includes ITEMS 2-3

$5.99

$

In Stock, Qty 20+

0

2

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

4

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

5

Echo V490001240

CLIP - 6

$0.99

$

Usually ships in 2-4 days

0

6

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

7

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

8

Echo V471003691

PIPE - 3X5X74 -- BLACK
(Superseded to V471005620)

Note: RePower BULK OPTION: N/A

$3.49

$

In Stock, only 1 left!

0

9

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

10

Echo 13201052830

PIPE - 3X5X110 -- BLACK
(Superseded to Discontinued)

Note: RePower BULK OPTION: 90014

$

$

Not available

11

Echo V186000520

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

12

Echo 13211546730

GROMMET

$1.99

$

In Stock, Qty 19

0

13

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

14

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo A350002080

TANK, FUEL

Note: Includes ITEM 16

$15.99

$

Usually ships in 2-4 days

0

16

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

17

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 7

0

18

Echo 90064

RePower TUNE-UP KIT
(Superseded to 90157)

$

$

Not available

18

Echo 90064C

RePower TUNE-UP KIT
(Superseded to 90157)

Note: CANADA MODELS

$

$

Not available

19

Echo 90165

RePower FUEL SYSTEM KIT

$

$

Currently unavailable
