WP-1000 - Echo Water Pump (Type 1E) (SN: W15103001001 - W15103999999) Intake Parts Diagram

Water Pump (Type 1E)

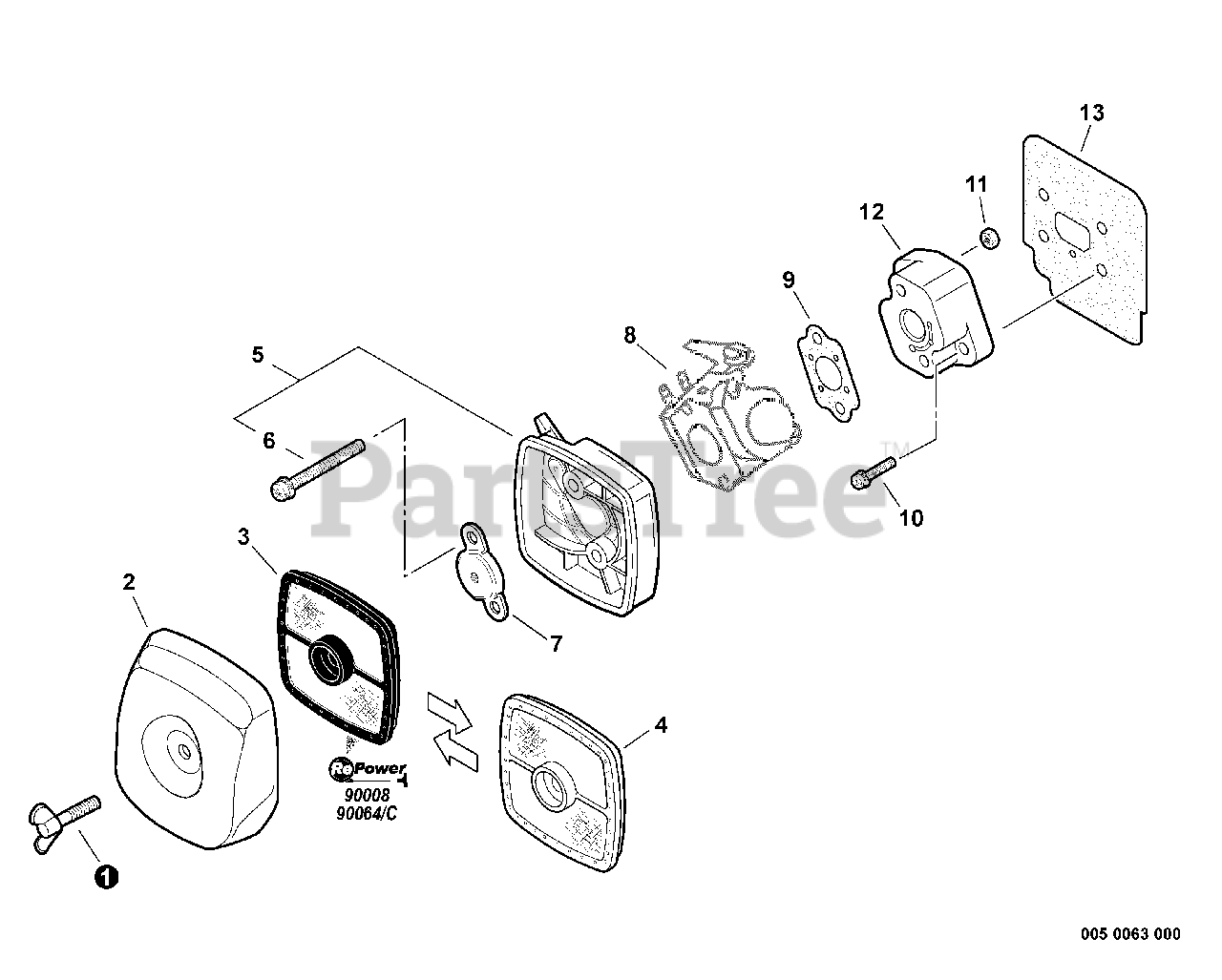

Intake Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

2

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: OPTIONAL

$7.49

$

In Stock, Qty 20+

0

3

Echo A226001410

FILTER, AIR - DOUBLE LAYER

Note: Included In RePower KIT

$7.49

$

In Stock, Qty 20+

0

5

Echo P021002921

AIR FILTER CASE KIT - GRAY

Note: Includes ITEM 5

$12.99

$

In Stock, Qty 7

0

5

Echo P021010350

AIR FILTER CASE KIT - BLACK

Note: Includes ITEM 5

$18.99

$

Usually ships in 2-4 days

0

6

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

7

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

8

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

9

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

10

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

11

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

Usually ships in 2-4 days

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 13001042032

GASKET, INTAKE

$2.49

$

In Stock, Qty 11

0

14

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

15

Echo 90064

RePower TUNE-UP KIT
(Superseded to 90157)

$

$

Not available

9

Echo 90064C

RePower TUNE-UP KIT
(Superseded to 90157)

Note: CANADA MODELS

$

$

Not available
