WP-1000 - Echo Water Pump (Type 1) Intake S/N: 001001 - 006207 Parts Diagram

Water Pump (Type 1)

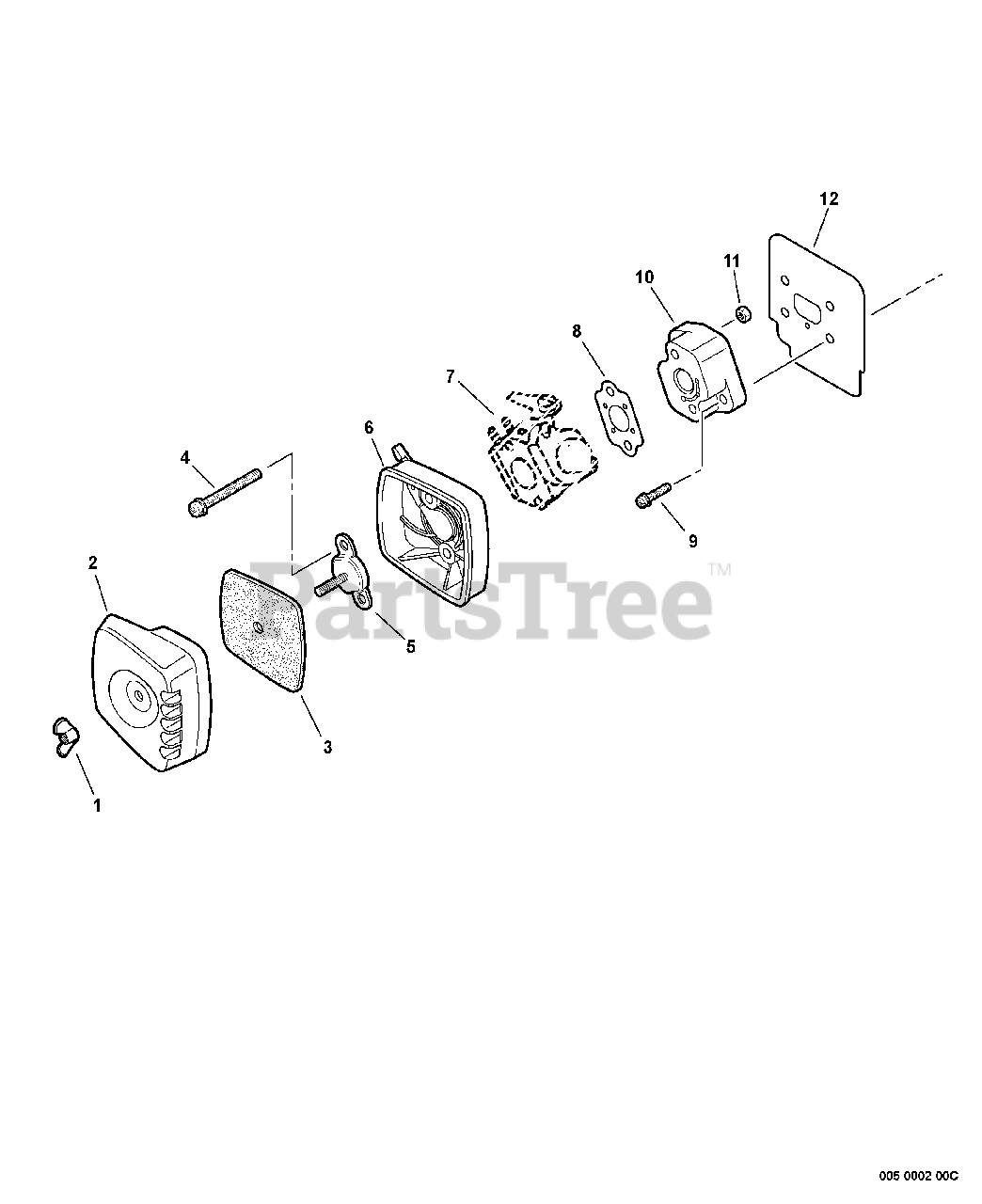

Intake S/N: 001001 - 006207 Parts Diagram

  • Title
1

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 15

0

2

Echo 13031305060

COVER, AIR FILTER - BLACK

$6.49

$

Usually ships in 2-4 days

0

3

Echo 13031004560

FILTER, AIR

$4.99

$

In Stock, Qty 20+

0

4

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

5

Echo 12901112620

PLATE, PREVENT

$7.49

$

Usually ships in 2-4 days

0

6

Echo 13030705361

AIR FILTER CASE KIT - BLACK
(Superseded to Discontinued)

$

$

Not available

7

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

8

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

9

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

10

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

Usually ships in 2-4 days

0

11

$0.99

$

In Stock, Qty 20+

0

12

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 11

0
