WP-1000 - Echo Water Pump (SN: W15204001001 - W15204999999) Fuel System S/N: W15204003802 - W15204999999 Parts Diagram

Water Pump

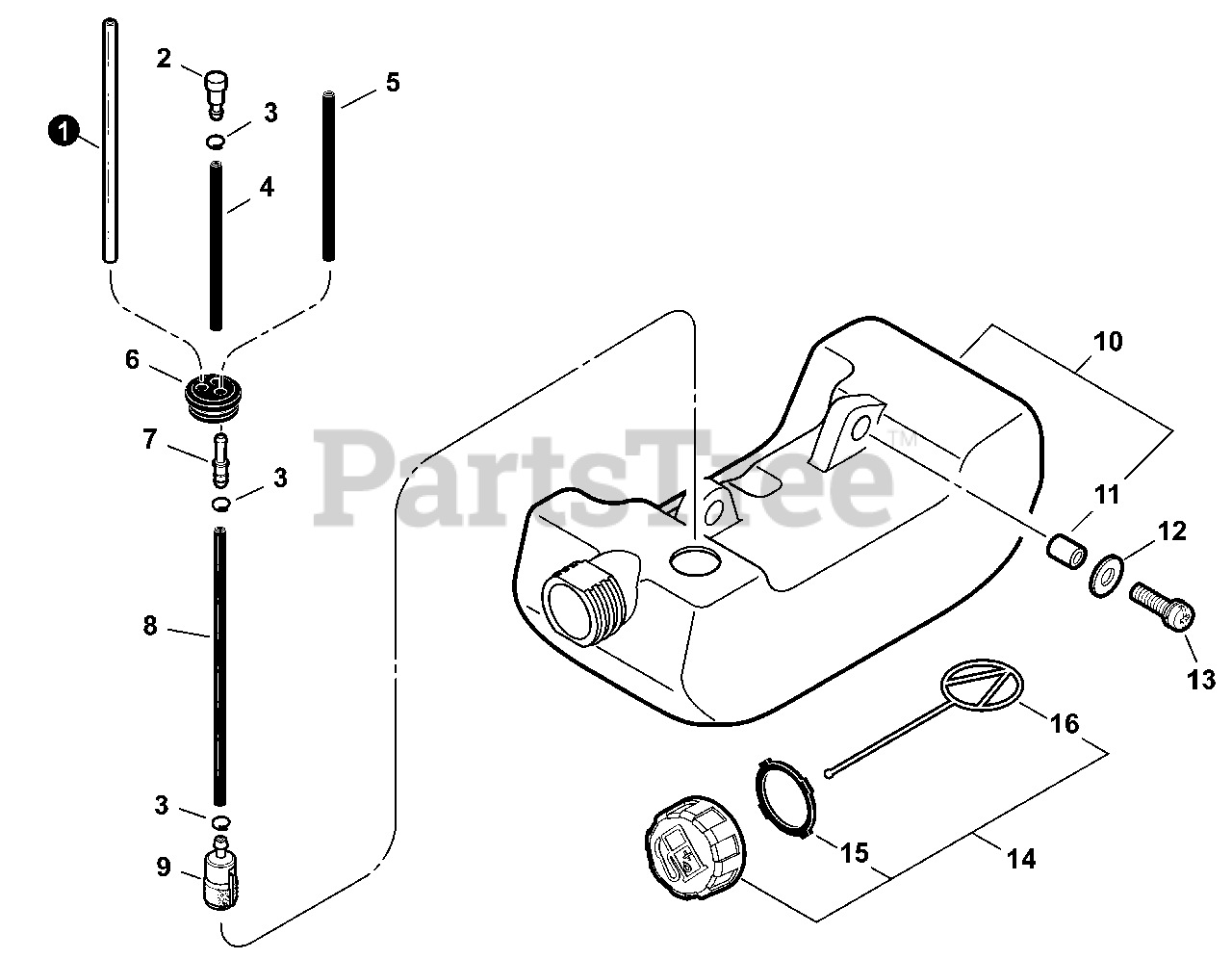

Fuel System S/N: W15204003802 - W15204999999 Parts Diagram

  • Title

1

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM

$2.99

$

In Stock, Qty 20+

0

2

Echo A356000031

VENT ASSY

$7.99

$

Usually ships in 2-4 days

0

3

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

4

Echo V471001200

PIPE, FUEL 3×5×70 BLACK
(Superseded to V471001201)

$1.99

$

In Stock, Qty 20+

0

5

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

$3.49

$

In Stock, only 1 left!

0

6

Echo 13211546730

GROMMET, FUEL Ø5

$1.99

$

In Stock, Qty 20+

0

7

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo 13201052830

PIPE 3×5×110
(Superseded to Discontinued)

$

$

Not available

9

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

10

Echo A350002080

TANK, FUEL

Note: Includes Item 11

$15.99

$

Usually ships in 2-4 days

0

11

Echo 13104528230

SPACER 6.2×7.8×6

$1.49

$

In Stock, Qty 20+

0

12

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

14

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 15-16

$5.99

$

In Stock, Qty 20+

0

15

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

16

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0
