WO1-180V (29471) - Snapper Engine, Made by Robin Subaru, 6.5hp Intake And Exhaust Group Parts Diagram

Engine, Made by Robin Subaru, 6.5hp

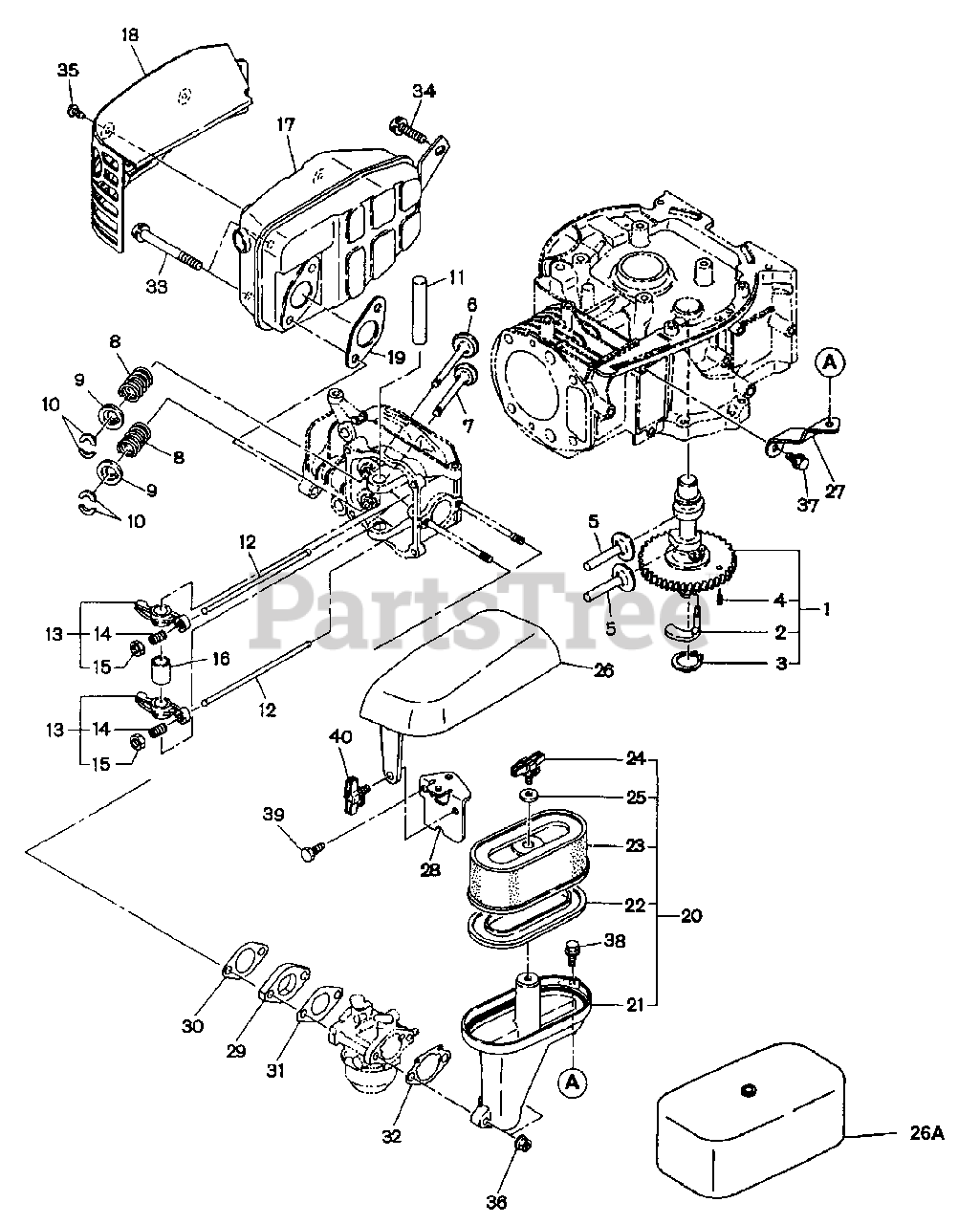

Intake And Exhaust Group Parts Diagram

  • Title
1

Snapper 261-31701-01

CAMSHAFT, compl.

Note: (Includes items 2 thru 4)

$

$

Not available

2

Snapper 227-36401-03

RELEASE LEVER

$

$

Not available

3

$

$

Currently unavailable

4

$

$

Currently unavailable

$

$

Not available

6

Snapper 261-33401-03

INTAKE VALVE

$

$

Not available

7

Snapper 261-33501-13

EXHAUST VALVE

Note: Was 261-33501-03

$

$

Not available

8

Snapper 237-33601-03

VALVE SPRING

$

$

Not available

$

$

Not available

$

$

Not available

11

Snapper 237-35001-03

ROCKER SHAFT

$

$

Not available

12

Snapper 261-35301-01

PUSH ROD, compl.

$

$

Not available

13

Snapper 253-36101-00

ROCKER ARM ASS'Y

Note: (Includes items 14 and 15)

$

$

Not available

14

Snapper 014-90800-21

ADJUSTING SCREW

$

$

Not available

$

$

Not available

$

$

Not available

17

Snapper 261-30101-01

MUFFLER, compl.

$

$

Not available

18

Snapper 261-34203-11

MUFFLER COVER, compl., yellow zinc

Note: Was 261-34203-01

$

$

Not available

18

Snapper 261-34201-01

MUFFLER COVER, compl., black

$

$

Not available

19

Snapper 214-35201-11

GASKET, exhaust., compl.

$

$

Not available

20

Snapper 261-32601-00

AIR CLEANER ASSY

Note: (Includes items 21 thru 25)

$

$

Not available

21

Snapper 261-32650-08

CASE, Air Cleaner

$

$

Not available

$

$

Not available

23

Snapper 261-32601-07

ELEMENT SET

$

$

Not available

24

$

$

Not available

$

$

Not available

26

Snapper 261-35101-01

AIR CLEANER COVER (Pro Poly)

Note: Was 261-35001-01

$

$

Not available

26A

Snapper 261-35101-01

AIR CLEANER COVER (Classic Steel)

$

$

Not available

27

Snapper 261-38001-01

BRACKET, air cleaner

$

$

Not available

28

Snapper 261-38002-01

BRACKET, air cleaner cover

$

$

Not available

29

$

$

Not available

30

Snapper 227-35904-03

GASKET, insulator

Note: Was 261-35904-03 or 227-35901-03

$

$

Not available

31

Snapper 227-35904-03

GASKET 2, insulator

$

$

Not available

32

Snapper 261-35901-13

GASKET, inner vent

Note: Was 261-35901-03

$

$

Not available

33

Snapper 013-00800-30

BOLT and WASHER ASS'Y

$

$

Not available

34

Snapper 001-10081-60

BOLT and WASHER ASS'Y

$

$

Not available

35

Snapper 015-20500-10

TAPPING SCREW

$

$

Not available

36

$

$

Not available

37

Snapper 011-00600-20

FLANGE BOLT

$

$

Not available

38

Snapper 011-00600-30

FLANGE BOLT

$

$

Not available

39

Snapper 015-20600-10

TAPPING BOLT

$

$

Not available

40

Snapper 246-32653-08

WING BOLT (Pro Poly)

$

$

Not available
