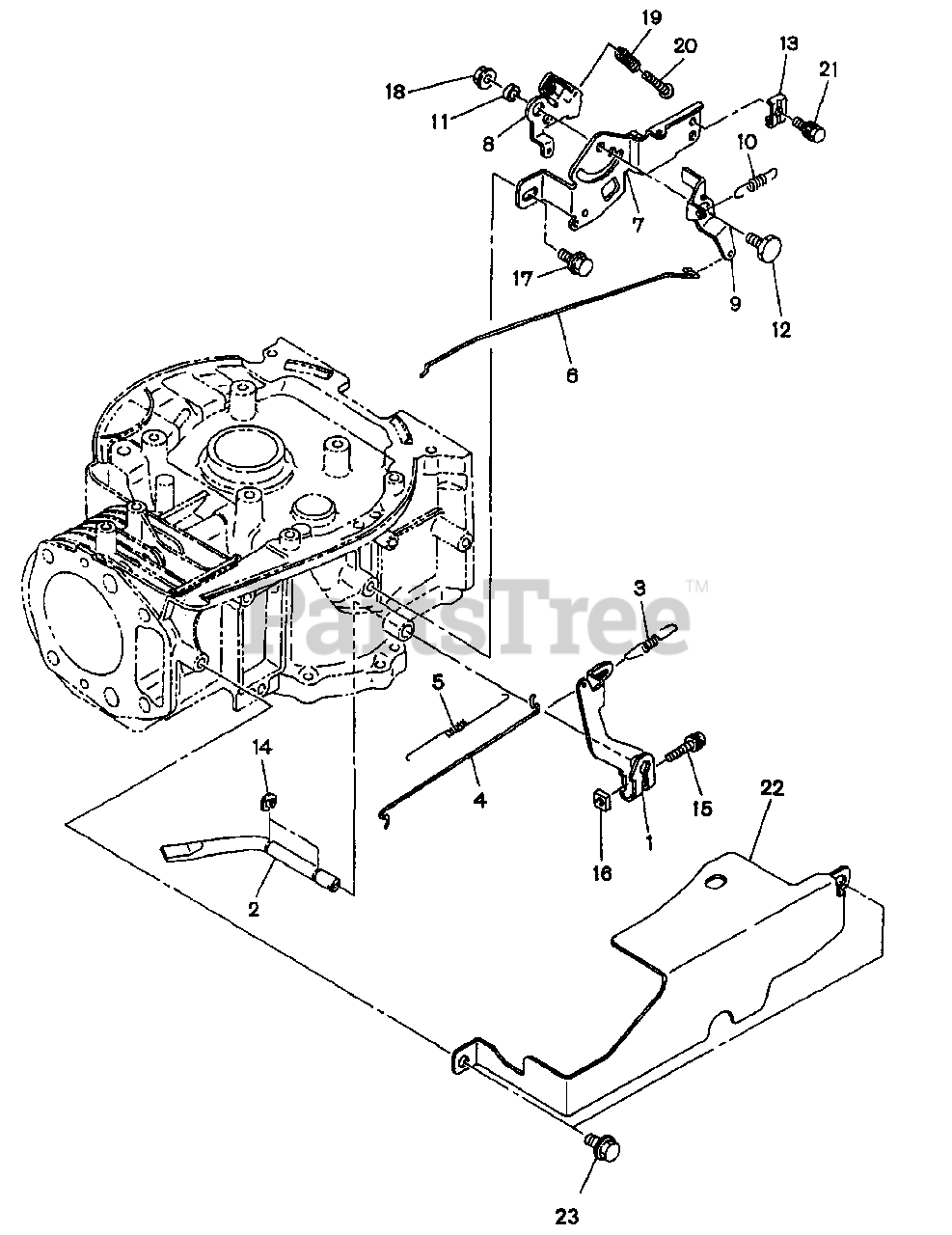

WO1-180V (29471) - Snapper Engine, Made by Robin Subaru, 6.5hp Governor, Operation Parts Diagram

Engine, Made by Robin Subaru, 6.5hp

Governor, Operation Parts Diagram

  • Title
1

Snapper 261-42301-03

GOVERNOR LEVER

$

$

Not available

2

Snapper 227-42201-03

GOVERNOR SHAFT

$

$

Not available

3

Snapper 261-42501-03

GOVERNOR SPRING

$

$

Not available

4

Snapper 261-42701-01

GOVERNOR ROD

$

$

Not available

5

$

$

Not available

6

$

$

Not available

$

$

Currently unavailable

8

Snapper 261-43301-03

SPEED CONTROL LEVER

$

$

Not available

9

Snapper 261-43801-03

CHOKE LEVER

$

$

Not available

10

Snapper 261-45201-03

RETURN SPRING

$

$

Not available

$

$

Not available

12

$

$

Not available

$

$

Not available

$

$

Currently unavailable

15

Snapper 001-14062-50

BOLT and WASHER ASS'Y

$

$

Not available

$

$

Currently unavailable

17

Snapper 011-00600-20

FLANGE BOLT

$

$

Not available

18

$

$

Not available

19

Snapper 237-45004-23

SPRING, adjust

$

$

Not available

20

Snapper 004-31052-00

SCREW, pan head

$

$

Not available

21

Snapper 001-17053-00

BOLT and WASHER ASS'Y

$

$

Not available

22

Snapper 261-46101-A3

SIDE GUARD (Classic Steel)

Note: Was 261-46101-03

$

$

Not available

23

Snapper 011-00600-20

FLANGE BOLT (Classic Steel)

$

$

Not available
