WMP20 X1 A1T (WAAA) - Honda Water Pump, Made in USA (SN: WAAA-1030001 - WAAA-1999999) FLYWHEEL Parts Diagram

Water Pump, Made in USA

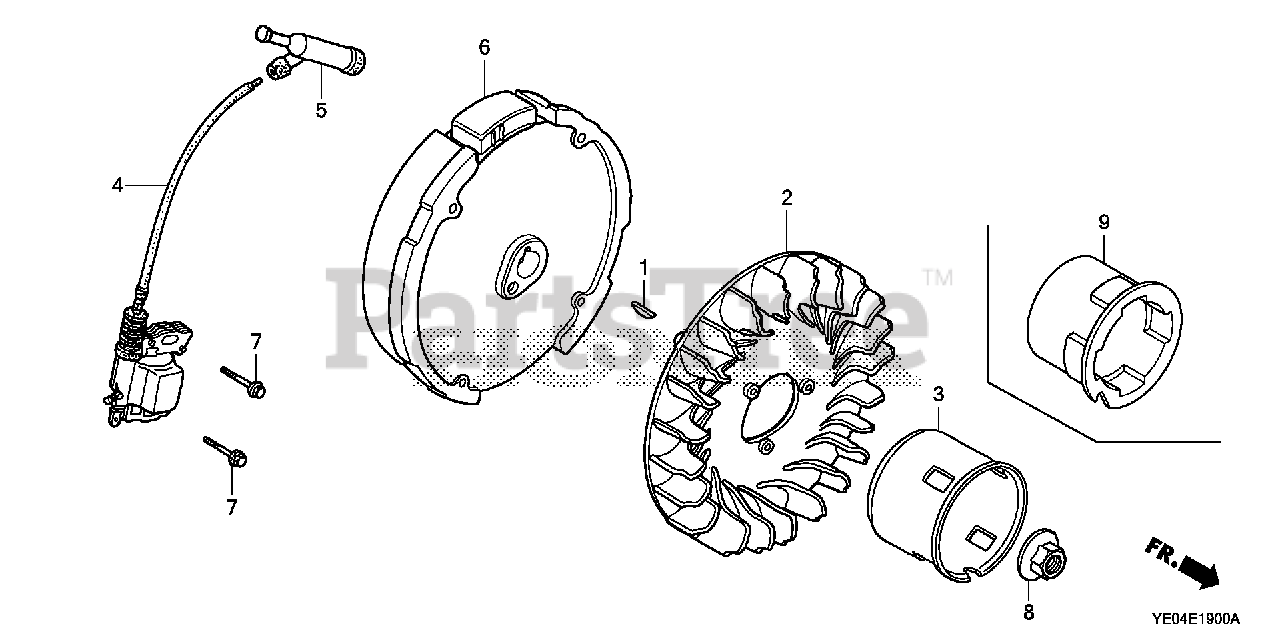

FLYWHEEL Parts Diagram

  • Title
1

Honda 13331-Z8B-900

KEY, SPECIAL WOODRUFF (25X18)

$6.49

$

In Stock, Qty 10

0

2

Honda 19511-ZE1-000

FAN, COOLING (Honda Code 1428051).

$31.99

$

Usually ships in 3-6 days

0

3

Honda 28451-ZH8-801

PULLEY, STARTER

Note: Use up to Engine SN 1916816.

$31.99

$

In Stock, only 1 left!

0

4

Honda 30500-Z0T-003

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (TEC)

$15.99

$

Usually ships in 3-6 days

0

5

Honda 30700-Z0T-821

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (TEC)

$6.99

$

In Stock, Qty 6

0

5

Honda 30700-Z0T-811

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR (NGK)
(Superseded to 30700-Z0T-821)

$6.99

$

In Stock, Qty 6

0

6

$339.99

$

Usually ships in 3-6 days

0

7

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

8

Honda 90201-Z0T-800

NUT, SPECIAL (14MM) (Honda Code 7348378).

$2.99

$

In Stock, only 1 left!

0

9

Honda 28451-Z4M-003

PULLEY, STARTER

Note: Use from Engine SN 1916817.

$4.99

$

Usually ships in 3-6 days

0
