WMP20 X1 A1T (WAAA) - Honda Water Pump, Made in USA (SN: WAAA-1030001 - WAAA-1999999) CAMSHAFT Parts Diagram

Water Pump, Made in USA

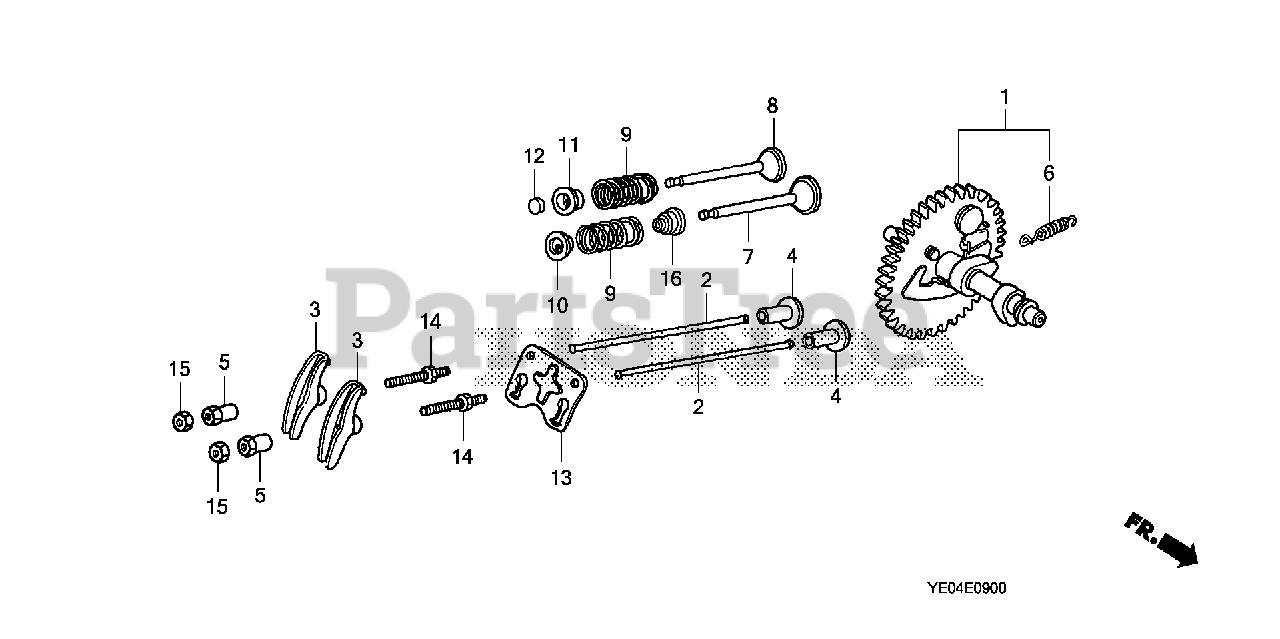

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-Z4M-000

CAMSHAFT ASSY.

$51.99

$

Usually ships in 3-6 days

0

2

Honda 14410-Z4M-000

ROD, PUSH

$6.49

$

Usually ships in 3-6 days

0

3

Honda 14431-ZE1-000

ARM, VALVE ROCKER (Honda Code 1426824).

$8.49

$

In Stock, Qty 12

0

4

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE (Honda Code 5181383).

$15.99

$

Usually ships in 3-6 days

0

5

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM (Honda Code 4300901).
(Superseded to 14451-Z4M-000)

Note: Use up to Engine SN 1604403.

$6.49

$

In Stock, Qty 12

0

5

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$6.49

$

In Stock, Qty 12

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN (Honda Code 1426907).

$3.99

$

In Stock, only 2 left!

0

7

Honda 14711-Z4M-000

VALVE, IN.

$26.99

$

In Stock, only 1 left!

0

8

Honda 14721-Z4M-000

VALVE, EX.

$19.99

$

In Stock, only 1 left!

0

9

Honda 14751-ZF1-000

SPRING, VALVE (Honda Code 3683489).

$4.99

$

In Stock, only 2 left!

0

10

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (Honda Code 1426980).
(Superseded to 14771-Z0T-900)

Note: Use up to Engine SN 1448791.

$1.49

$

In Stock, Qty 12

0

10

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, Qty 12

0

11

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (Honda Code 1426980).
(Superseded to 14771-Z0T-900)

Note: Use up to Engine SN 1448791.

$1.49

$

In Stock, Qty 12

0

11

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, Qty 12

0

13

Honda 14791-Z4M-000

PLATE, PUSH ROD GUIDE

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$9.49

$

In Stock, only 2 left!

0

15

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, Qty 12

0

16

Honda 12209-Z4M-801

SEAL, VALVE STEM

$10.99

$

In Stock, only 3 left!

0
