WMP20 X1 A1T (WAAA) - Honda Water Pump, Made in USA (SN: WAAA-1030001 - WAAA-1999999) AIR CLEANER Parts Diagram

Water Pump, Made in USA

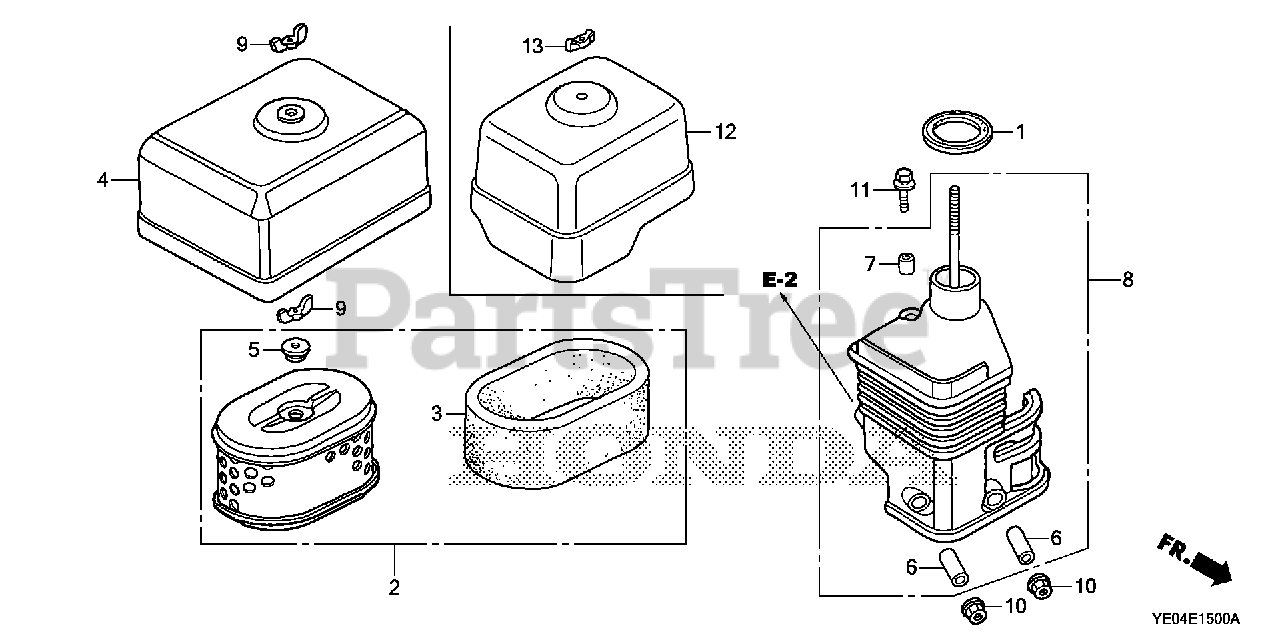

AIR CLEANER Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW (Honda Code 1427194).

$4.99

$

In Stock, Qty 9

0

2

Honda 17210-ZE1-517

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL) Use up to Engine SN 2115700.
(Superseded to 17210-Z4M-821)

Note: Use up to Engine SN 1724825.

$9.99

$

In Stock, Qty 20+

0

2

Honda 17210-ZE1-822

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER (DUAL) (Honda Code 2893881).
(Superseded to 17210-Z4M-821)

Note: Use up to Engine SN 1724825.

$9.99

$

In Stock, Qty 20+

0

2

Honda 17210-Z4M-821

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL)

$9.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE1-821

SEE PART DETAILS - SUP; FILTER (OUTER)

$11.99

$

In Stock, only 1 left!

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 15

0

6

Honda 17238-ZE7-010

COLLAR, AIR CLEANER Use from Engine SN 1786085.

$4.99

$

Usually ships in 3-6 days

0

7

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

8

Honda 17410-Z4M-010

ELBOW, AIR CLEANER

$9.49

$

In Stock, only 2 left!

0

9

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

10

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

11

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

$2.49

$

In Stock, Qty 6

0

12

Honda 17231-Z4M-010

COVER, AIR CLEANER

$2.99

$

In Stock, only 2 left!

0

13

Honda 90300-Z1V-000

NUT, AIR CLEANER

Note: Use up to Engine SN 1724825.

$5.99

$

In Stock, Qty 11

0

13

Honda 90300-Z4M-800

NUT, AIR CLEANER

Note: Use from Engine SN 1724826.

$1.49

$

In Stock, only 2 left!

0
