WMP20 X A1T (WAAA) - Honda Water Pump, Made in USA (SN: WAAA-1000001 - WAAA-1029999) PISTON + CRANKSHAFT Parts Diagram

Water Pump, Made in USA

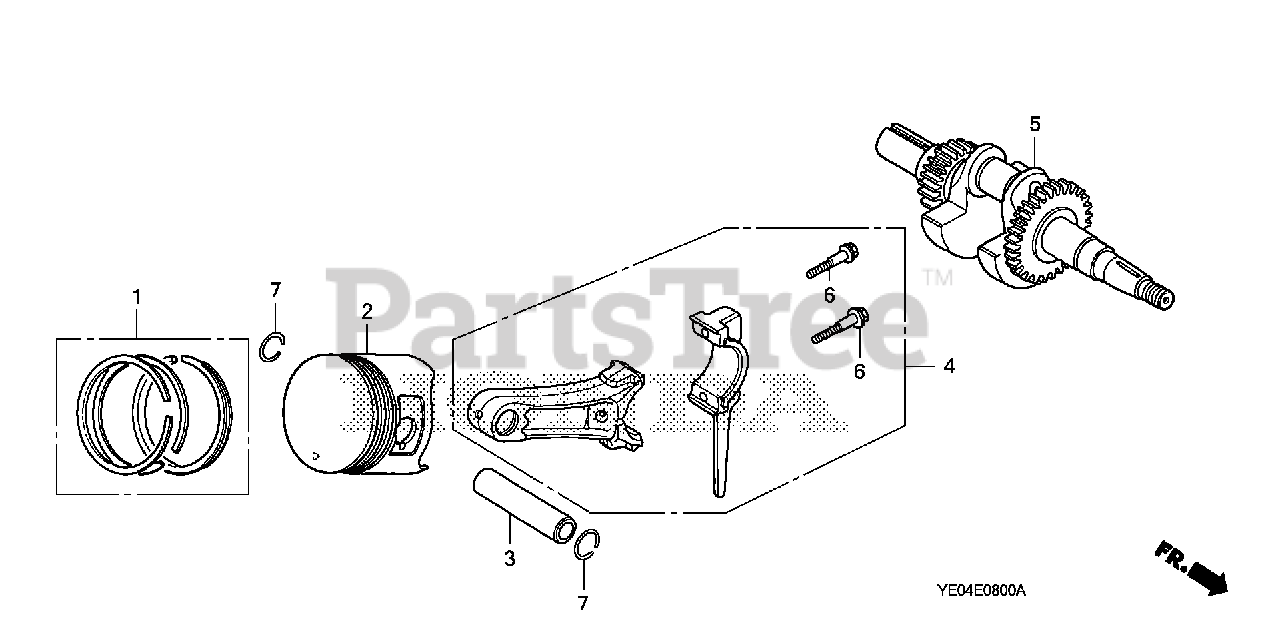

PISTON + CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TPR)

$32.99

$

In Stock, only 1 left!

0

1

Honda 13010-Z4M-003

RING SET, PISTON (STD) (RIKEN)

$40.99

$

Usually ships in 3-6 days

0

1

Honda 13013-Z4K-004

RING SET, PISTON (0.75) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z4M-003

RING SET, PISTON (0.75) (RIKEN)

Note: (Optional).

$

$

Not available

1

Honda 13011-Z4K-004

RING SET, PISTON (0.25) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13011-Z4M-003

RING SET, PISTON (0.25) (RIKEN)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z4K-004

RING SET, PISTON (0.50) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z4M-003

RING SET, PISTON (0.50) (RIKEN)
(Superseded to 13010-Z4M-003)

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZH8-020

PISTON (STD)

Note: Use up to Engine SN 4199741.

$41.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z4M-000

PISTON (STD)

Note: Use from Engine SN 4199742.

$18.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZH8-020

PISTON (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-ZH8-020

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZH8-020

PISTON (0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-ZE1-000

PIN, PISTON

$12.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z0T-800

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (TH)
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

5

Honda 13310-Z0T-800

CRANKSHAFT

$95.99

$

Usually ships in 3-6 days

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$3.99

$

In Stock, only 2 left!

0

7

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.49

$

In Stock, Qty 18

0
