WMP20 X A1 (WMP20X) - Honda Water Pump, Made in USA (SN: WMP20X-1000001 - WMP20X-9999999) CARBURETOR Parts Diagram

Water Pump, Made in USA

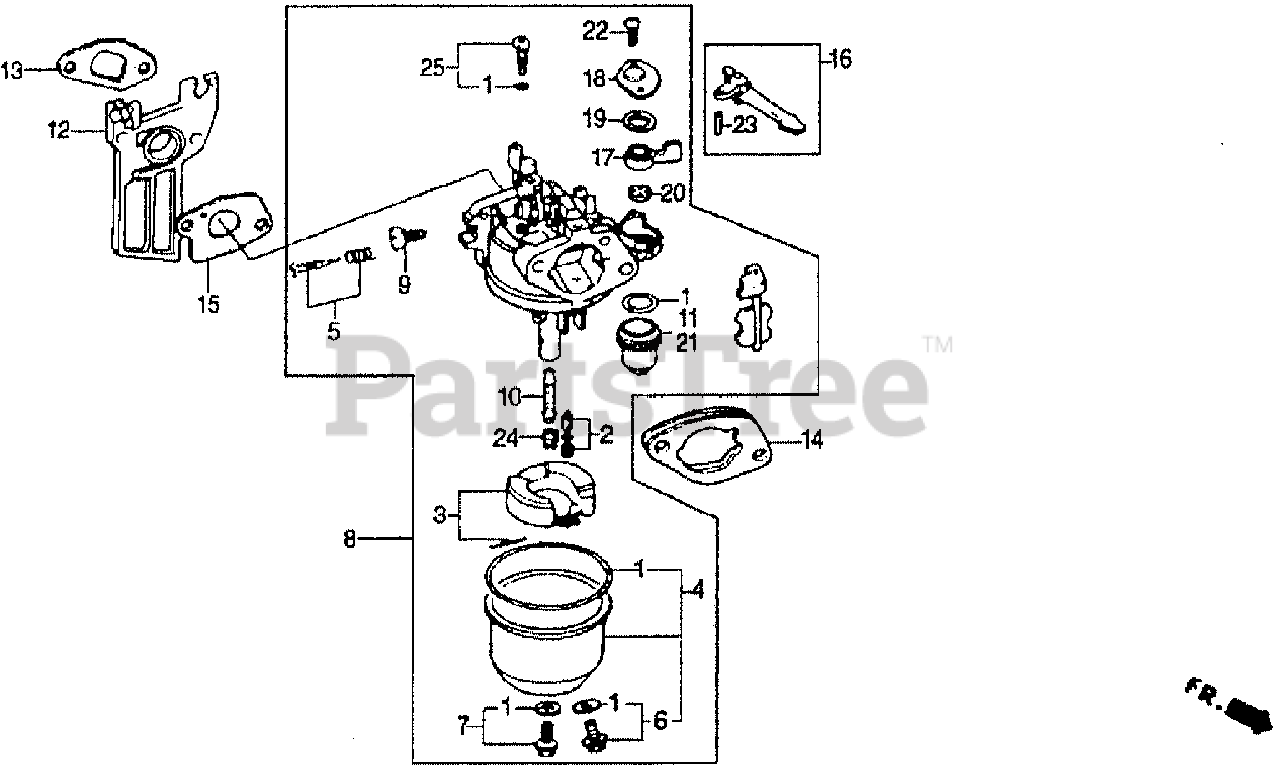

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET

$20.99

$

In Stock, Qty 7

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET

$31.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT
(Superseded to 16015-ZE0-831)

$38.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$15.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

8

Honda 16100-ZH8-W51

CARBURETOR ASSY. (BE65B B)

Note: Use from Engine SN 6276050.

$133.99

$

In Stock, only 3 left!

0

8

Honda 16100-ZH8-822

SEE PART DETAILS - PRI; CARBURETOR ASSY.
(Superseded to 16100-ZH8-W51)

Note: Use up to Engine SN 6276049.

$133.99

$

In Stock, only 3 left!

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

10

Honda 16166-ZH8-810

NOZZLE, MAIN

$26.99

$

Usually ships in 3-6 days

0

11

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 2 left!

0

12

Honda 16211-ZE1-000

INSULATOR, CARBURETOR

$25.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZH8-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

14

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$8.49

$

In Stock, Qty 19

0

15

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

16

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$11.99

$

In Stock, Qty 8

0

17

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE

$14.99

$

Usually ships in 3-6 days

0

18

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

19

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, VALVE LEVER

$4.49

$

Usually ships in 3-6 days

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE

$4.49

$

In Stock, Qty 20+

0

21

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$23.99

$

In Stock, only 3 left!

0

22

Honda 93500-03008-0G

SCREW, PAN (3X8)

$

$

Not available

23

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 4 left!

0

24

Honda 99101-ZF5-0680

SEE PART DETAILS - SUP; JET, MAIN (#68)

$

$

Currently unavailable

24

Honda 99101-ZF5-0700

SEE PART DETAILS - SUP; JET, MAIN (#70)

$

$

Currently unavailable

24

Honda 99101-ZF5-0720

SEE PART DETAILS - SUP; JET, MAIN (#72)
(Superseded to 99101-ZH8-0720)

$8.49

$

Usually ships in 3-6 days

0

25

Honda 99204-ZE0-0380

JET SET, PILOT (#38)

$23.99

$

In Stock, only 2 left!

0
