WLT 200H48IBV2 (84904) - Snapper 48" Lawn Tractor, 20hp 48" DECK SPINDLE ASSEMBLY- Series "I" Parts Diagram

48" Lawn Tractor, 20hp

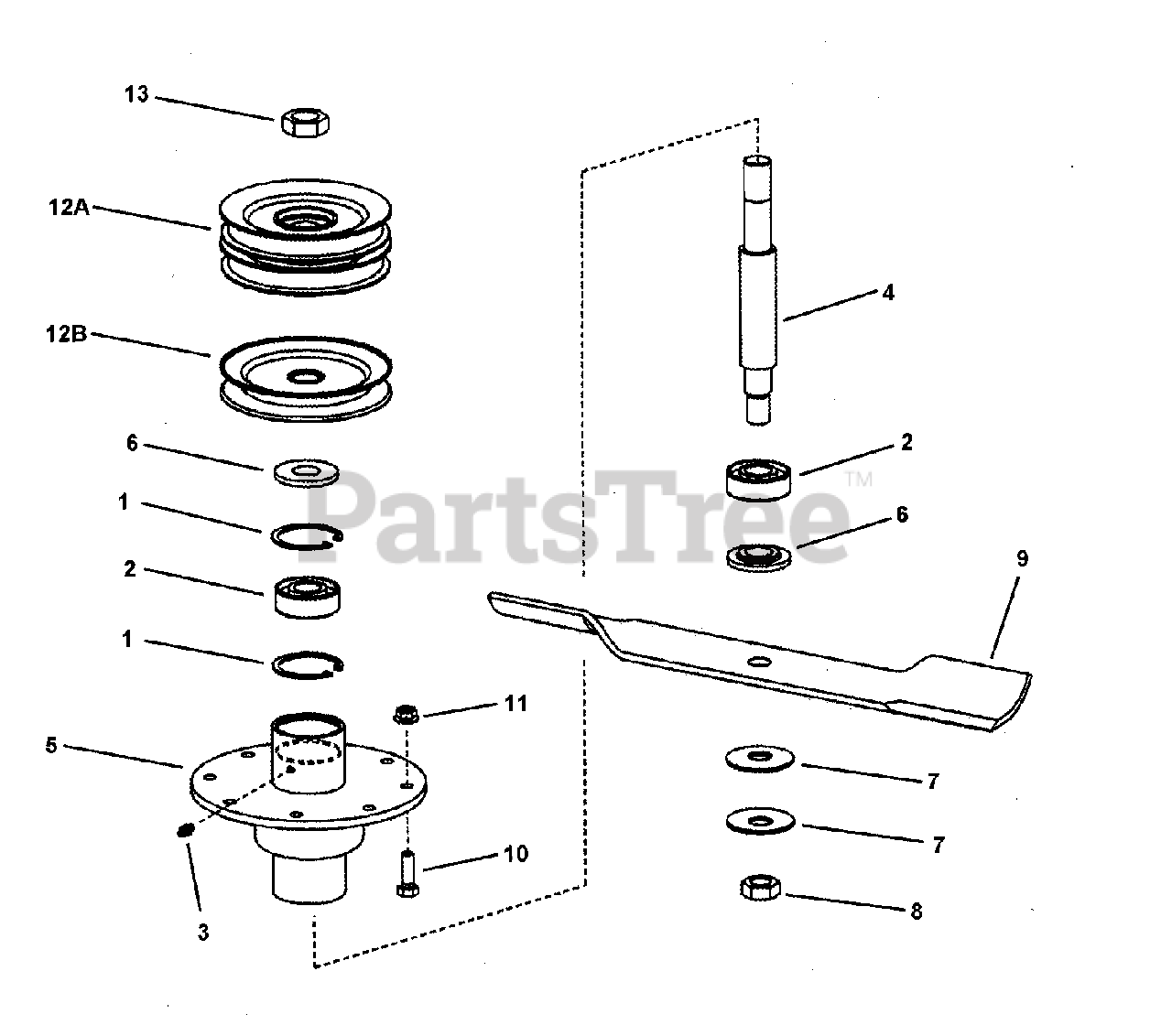

48" DECK SPINDLE ASSEMBLY- Series "I" Parts Diagram

  • Title

1

Snapper 7012491

RING, 1-3/4" Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 7013313

BALL BEARING, 3/4" I.D.
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

3

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7073405

SHAFT, 48" Spindle (7.8" long)
(Superseded to 7073405YP)

$56.99

$

In Stock, only 1 left!

0

5

Snapper 7044798

WELDMENT, Spindle Housing
(Superseded to 7044798YP)

$122.99

$

Usually ships in 2-12 days

0

6

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

7

Snapper 7016440

WASHER, Belleville
(Superseded to 7016440SM)

$7.99

$

In Stock, Qty 20+

0

8

Snapper 7090658

NUT, 5/8-18 Hex Jam
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

9

Snapper 7017043

BLADE, 16-1/2" High Lift
(Superseded to 7017043YP)

$28.99

$

In Stock, Qty 8

0

10

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR5
(Superseded to 703585)

Note: Was 90636

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

12A

Snapper 7073518

PULLEY, Deck/Drive- 48" (center spindle)
(Superseded to 7073518YP)

$125.99

$

In Stock, only 1 left!

0

12B

Snapper 7014544

PULLEY, 4-3/4" O.D. (outboard spindles)
(Superseded to 7014544SM)

$58.99

$

In Stock, only 1 left!

0

13

Snapper 7074467

NUT, 3/4-16 Hex Flange Jam, GR8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0
