WLT 200H48IBV2 (84904) - Snapper 48" Lawn Tractor, 20hp 48" CUTTING DECK ASSEMBLY (Series "I") PT.1 Parts Diagram

48" Lawn Tractor, 20hp

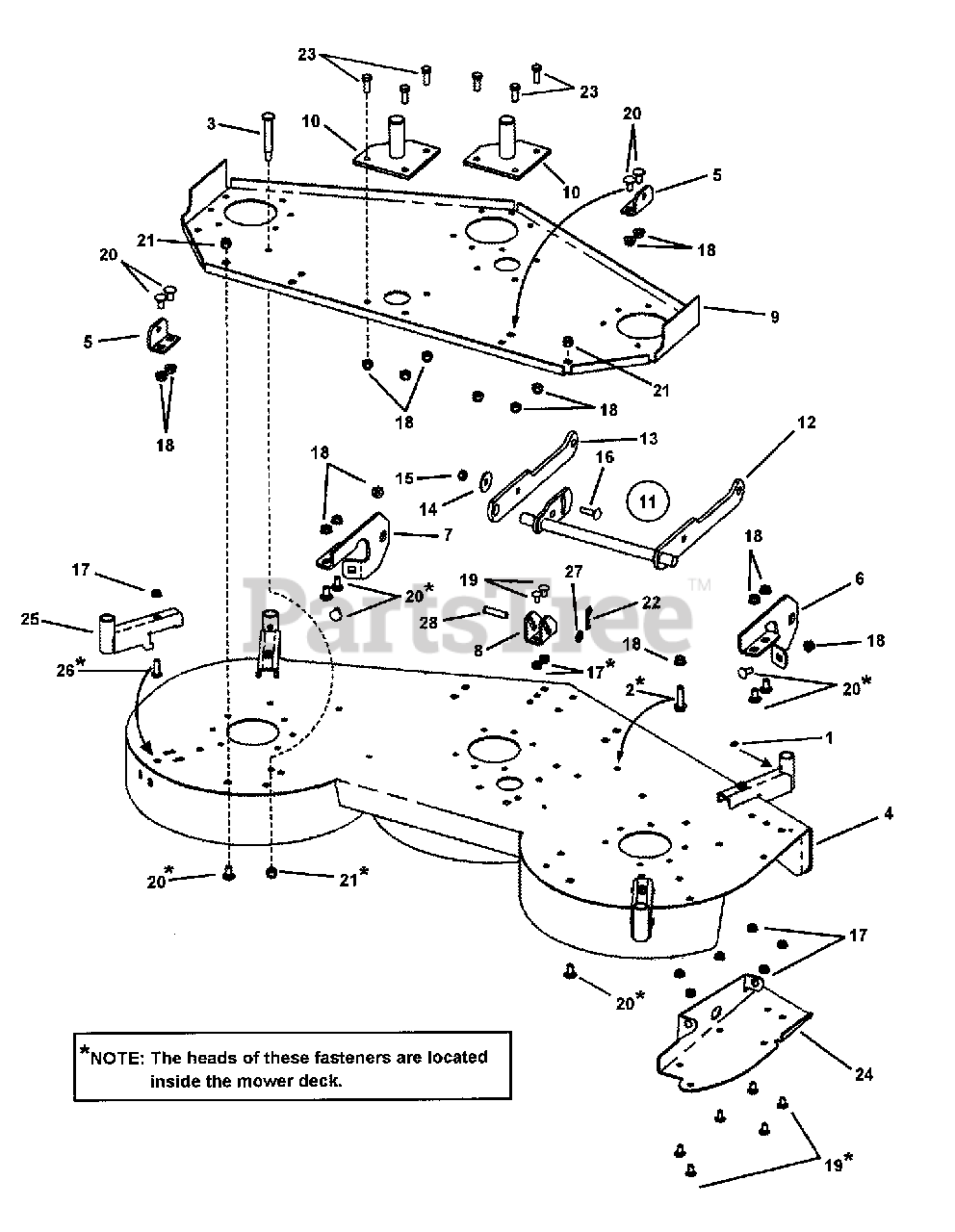

48" CUTTING DECK ASSEMBLY (Series "I") PT.1 Parts Diagram

  • Title

1

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

2

Snapper 7090614

BOLT, 3/8-16 x 1-1/2" Hex Flange Lock, GR5
(Superseded to 7090614YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7029265

SHOULDER BOLT, 3/8-16 thread
(Superseded to 7029265SM)

$10.99

$

In Stock, Qty 5

0

4

Snapper 7044799

WELDMENT, 48" Deck
(Superseded to 7044799YP)

$558.99

$

Usually ships in 2-12 days

0

5

Snapper 7046860

BRACKET, Rear Lift- 48" Deck

$

$

Not available

6

Snapper 7046864

BRACKET, Front Hanger- Right Hand
(Superseded to 7046864YP)

$31.99

$

Usually ships in 2-12 days

0

7

Snapper 7046965

BRACKET, Front Hanger Left Hand
(Superseded to 7046965YP)

$33.99

$

Usually ships in 2-12 days

0

8

Snapper 7046870

BRACKET, Front Hanger- 48" Deck

$

$

Not available

9

Snapper 7071614

STIFFNER, 48" Deck- LT

$

$

Not available

10

Snapper 7046947

WELDMENT, Idler Plate
(Superseded to 7046947YP)

$61.99

$

Usually ships in 2-12 days

0

11

Snapper 7054142

ASSEMBLY, Front Lift Arm (Includes items 12 thru 16)

$

$

Currently unavailable

12

Snapper 7046202

WELDMENT, Front Lift Arm
(Superseded to 7046202YP)

$19.99

$

Usually ships in 2-12 days

0

13

Snapper 7035603

ARM, Lift

$

$

Not available

14

Snapper 7012063

WASHER, Cone, 13/32 x 1-13/32" Diameter
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

15

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7091790

BOLT, 3/8-16 x 1-1/4" Square Neck Carriage, GR5
(Superseded to 703130)

Note: Was 91716

$3.99

$

In Stock, Qty 15

0

17

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

19

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, GR5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Neck Carriage, GR2
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7091299

NUT, 3/8-16-3B Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7091503

HAIR PIN, 3/32 x 1.5"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

24

Snapper 7074951

BRACKET, Hinge (48" Deck)
(Superseded to 7074951YP)

Note: used on Series "I" Models

$48.99

$

Usually ships in 2-12 days

0

25

Snapper 7044801

WELDMENT, Caster

$

$

Not available

26

Snapper 7091169

BOLT, 5/16-18 x 1-1/8" Short Neck Carriage, GR5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7046491

PIN, 3/8 x 1-5/8" Clevis

$

$

Not available
