WLT 180H48HBV2 (84729) - Snapper 48" Lawn Tractor, 18hp 48" CUTTING DECK ASSEMBLY (Series "H") PT.2 Parts Diagram

48" Lawn Tractor, 18hp

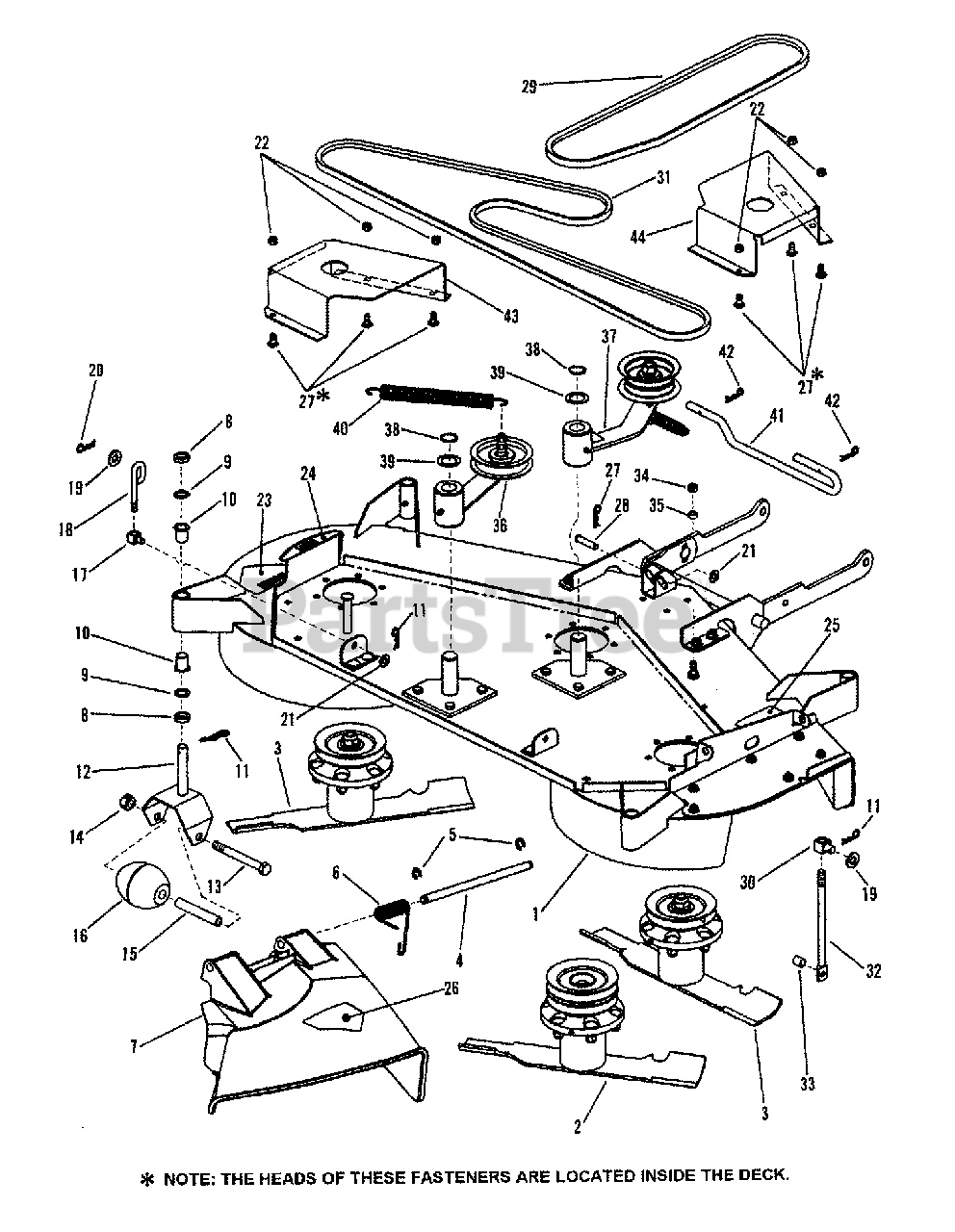

48" CUTTING DECK ASSEMBLY (Series "H") PT.2 Parts Diagram

  • Title

1

Snapper 7057821

ASSEMBLY, 48" Deck (see previous page)
(Superseded to 7063297YP)

$757.99

$

Usually ships in 2-12 days

0

2

Snapper 7057921

ASSEMBLY, 48" Drive Spindle

$

$

Currently unavailable

3

Snapper 7057920

ASSEMBLY, 48" L.H./R.H. Spindle

$

$

Currently unavailable

4

Snapper 7072044

PIN, Chute Hinge
(Superseded to 7072044YP)

$29.99

$

In Stock, only 1 left!

0

5

Snapper 7014341

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

6

Snapper 7035813

SPRING, Torsion (Side Chute)
(Superseded to 7035813SM)

$24.99

$

In Stock, only 1 left!

0

7

Snapper 7029425

CHUTE, Side Discharge
(Superseded to 7104733YP)

$87.99

$

In Stock, Qty 19

0

8

Snapper 7076436

SPACER, Blade
(Superseded to 7076436YP)

$7.49

$

In Stock, only 4 left!

0

9

Snapper 7091628

WASHER, .64 x .99 x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7043858

BEARING, 1/2 x 3/4" Plastic
(Superseded to 7043858YP)

Note: Was 46278

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091503

HAIR PIN, 3/32 x 1.5"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7046302

WELDMENT, Anti-Scalp Wheel
(Superseded to 7046302YP)

$75.99

$

Usually ships in 2-12 days

0

13

Snapper 7090993

SCREW, 1/2-20 x 4-1/2" Hex Head Cap, GR5
(Superseded to 7090993YP)

$5.49

$

In Stock, only 1 left!

0

14

Snapper 7090266

NUT, 1/2-20 Hex Center Lock, GR5 or B
(Superseded to 7090266YP)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7046301

SLEEVE, Wheel Caster
(Superseded to 7046301YP)

$14.99

$

In Stock, Qty 5

0

16

Snapper 7073142

ROLLER, Low Density Polyethylene
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 7

0

17

Snapper 7024607

SWIVEL, Brake Link
(Superseded to 7024607YP)

$8.49

$

In Stock, only 1 left!

0

18

Snapper 7046790

ROD, Rear Lift- 48" Deck
(Superseded to 7046790YP)

$27.99

$

Usually ships in 2-12 days

0

19

Snapper 7091587

WASHER, .531 x 1.062 x .121 Flat SAE
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

20

Snapper 7091594

COTTER PIN, 1/2" Self Lock
(Superseded to 7091594SM)

$2.99

$

In Stock, only 2 left!

0

21

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7091298

NUT, 5/16-18-3B Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7013010

DECAL, Danger, Cut Finger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

24

Snapper 7024431

DECAL, 48" Deck
(Superseded to 7024431YP)

$11.99

$

Usually ships in 2-12 days

0

25

Snapper 7046720

DECAL, Chute/Deflector
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

26

Snapper 7013010

DECAL, CPSC Heavy Adhesive
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 11

0

27

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

28

Snapper 7046491

PIN, 3/8 x 1-1/2" Clevis

Note: Was 91977

$

$

Not available

29

Snapper 7046926

BELT, HA Sect. 50.65" (Electric Clutch)
(Superseded to 7046926YP)

$47.99

$

In Stock, only 2 left!

0

30

Snapper 7026827

SWIVEL, Lift, 1/2-13 thread
(Superseded to 7026827YP)

$20.99

$

Usually ships in 2-12 days

0

31

Snapper 7028334

BELT, HA Sect., 94.50" effective length (TTK50 Traction Drive)
(Superseded to 7028334SM)

$64.99

$

Usually ships in 2-12 days

0

32

Snapper 7046873

ROD, Front Lift- 48" Deck

$

$

Not available

33

Snapper 7023478

SPACER

$

$

Not available

34

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

35

Snapper 7024180

SPACER, Tie Rod
(Superseded to 7024180YP)

$7.49

$

Usually ships in 2-12 days

0

36

Snapper 7057923

ASSEMBLY, Deck Idler

$

$

Currently unavailable

37

Snapper 7057950

ASSEMBLY, Drive Idler Arm

$

$

Currently unavailable

38

Snapper 7012709

RING, 1" External Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0

39

Snapper 7023747

BUSHING, 1" Machine
(Superseded to 7023747YP)

$5.49

$

In Stock, Qty 20+

0

40

Snapper 7029272

SPRING, Extension- Primary Idler
(Superseded to 7029272SM)

$14.99

$

In Stock, only 1 left!

0

41

Snapper 7027471

PIN, Deck Hanger Improved

$

$

Not available

42

Snapper 7091596

HAIRPIN, .148 x 2.62
(Superseded to 7091596YP)

$4.49

$

Usually ships in 2-12 days

0

43

Snapper 7047086

COVER, L.H. Spindle
(Superseded to 7047086YP)

$59.99

$

Usually ships in 2-12 days

0

44

Snapper 7047087

COVER, R.H. Spindle
(Superseded to 7047087YP)

$59.99

$

Usually ships in 2-12 days

0
