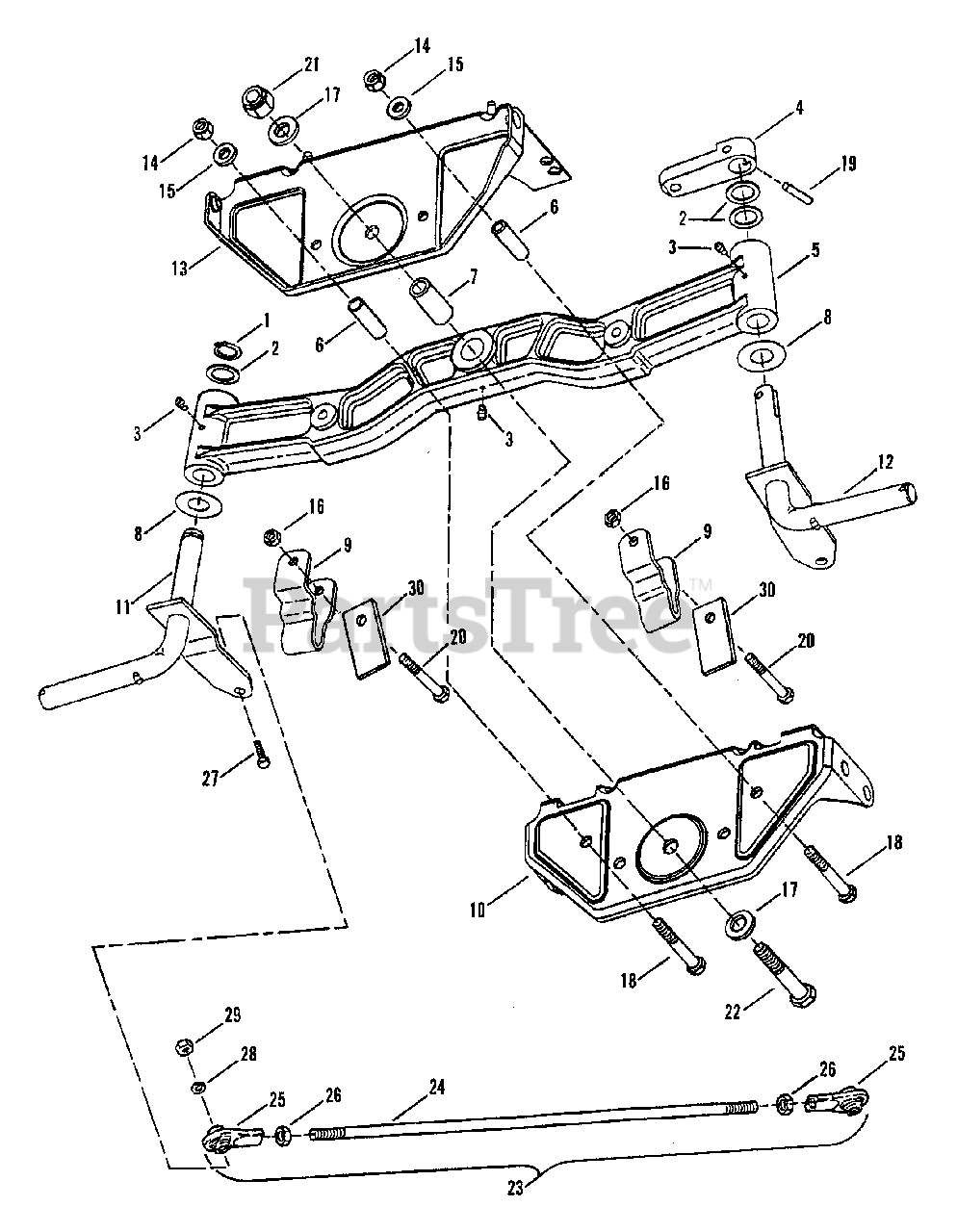

WLT 180H48GBV2 (84659) - Snapper 48" Lawn Tractor, 18hp Cast Front Axle Parts Diagram

48" Lawn Tractor, 18hp

Cast Front Axle Parts Diagram

  • Title

1

Snapper 7010746

RING, 5/8 External Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 7010935

WASHER, 49/64 x 1-1/8 x 1/16" Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7014669

FITTING, 3/16 Lube
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7019034

ARM, Steering
(Superseded to 7019034YP)

$

$

Not available

5

Snapper 7072411

AXLE, Cast
(Superseded to 7072411YP)

$276.99

$

Usually ships in 2-12 days

0

6

Snapper 7028666

SPACER, 25/64 x 1/2 x 1-13/16"

$

$

Not available

7

Snapper 7028689

SPACER, Center

$20.99

$

Usually ships in 2-12 days

0

Snapper 7012706

BEARING, Sleeve
(Superseded to 7012706SM)

Note: Bushing is not shown at the center hole of the cast axle that pivots around Ref# 7

$10.99

$

In Stock, only 4 left!

0

8

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7033383

BRACKET, Deck Hanger
(Superseded to 7033383YP)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 7074424

BRACKET, Cast Axle (Rear)
(Superseded to 7074424YP)

Note: Was 34740

$40.99

$

Usually ships in 2-12 days

0

11

Snapper 7041251

WELDMENT, Right Hand Spindle Wheel (Short)
(Superseded to 7041251YP)

$237.99

$

Usually ships in 2-12 days

0

12

Snapper 7041250

WELDMENT, Left Hand Spindle Wheel (Short)
(Superseded to 7041250BMYP)

$204.99

$

Usually ships in 2-12 days

0

13

Snapper 7053804

* BRACKET, Cast Axle Front
(Superseded to 7053804YP)

Note: (LT160HGBV2 & LT180H42GBV2)

$91.99

$

Usually ships in 2-12 days

0

13

Snapper 7054515

* BRACKET, Cast Axle Front
(Superseded to 7054515YP)

Note: (Model: LT160H42GBV Only)

$196.99

$

Usually ships in 2-12 days

0

14

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7090122

WASHER, 3/8 x 5/64" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 19

0

17

Snapper 7090250

WASHER, 1/2 x 3/32" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

18

Snapper 7091557

SCREW, 3/8-16 x 2-3/4" Hex Head Cap, Grade 2
(Superseded to 703133)

Note: Was 90795

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7090842

PIN, 1/4 x 1-1/4" Roll
(Superseded to 7090842YP)

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7090831

SCREW, 5/16-18 x 2-3/4" Hex Head Cap, Grade 5
(Superseded to 7090831YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7091121

NUT, 1/2-13 Hex Nyloc

$

$

Not available

22

Snapper 7091821

SCREW, 1/2-13 x 3" Hex Head Cap Grade 5
(Superseded to 7091821YP)

Note: Was 91694

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7053873

ASSEMBLY, Tie Rod

Note: (Includes items 24,25,& 26)

$

$

Not available

24

Snapper 7034777

ROD, Steering Connector
(Superseded to 7034777YP)

$11.99

$

In Stock, only 1 left!

0

25

Snapper 7027936

BALL JOINT, 3/8-24 thread
(Superseded to 7027936SM)

$17.99

$

In Stock, only 2 left!

0

26

Snapper 7090482

NUT, 3/8-24 Hex Jam
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

28

Snapper 7091320

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

29

Snapper 7091302

NUT, 3/8-16 Hex, Grade 5
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper 7035372

SPACER, Steering Stop
(Superseded to 7035372YP)

$6.49

$

Usually ships in 2-12 days

0
