WLT 170H38IBV (84925) - Snapper 38" Lawn Tractor, 17hp TRANSMISSION GROUP (Hydro Drive) Parts Diagram

38" Lawn Tractor, 17hp

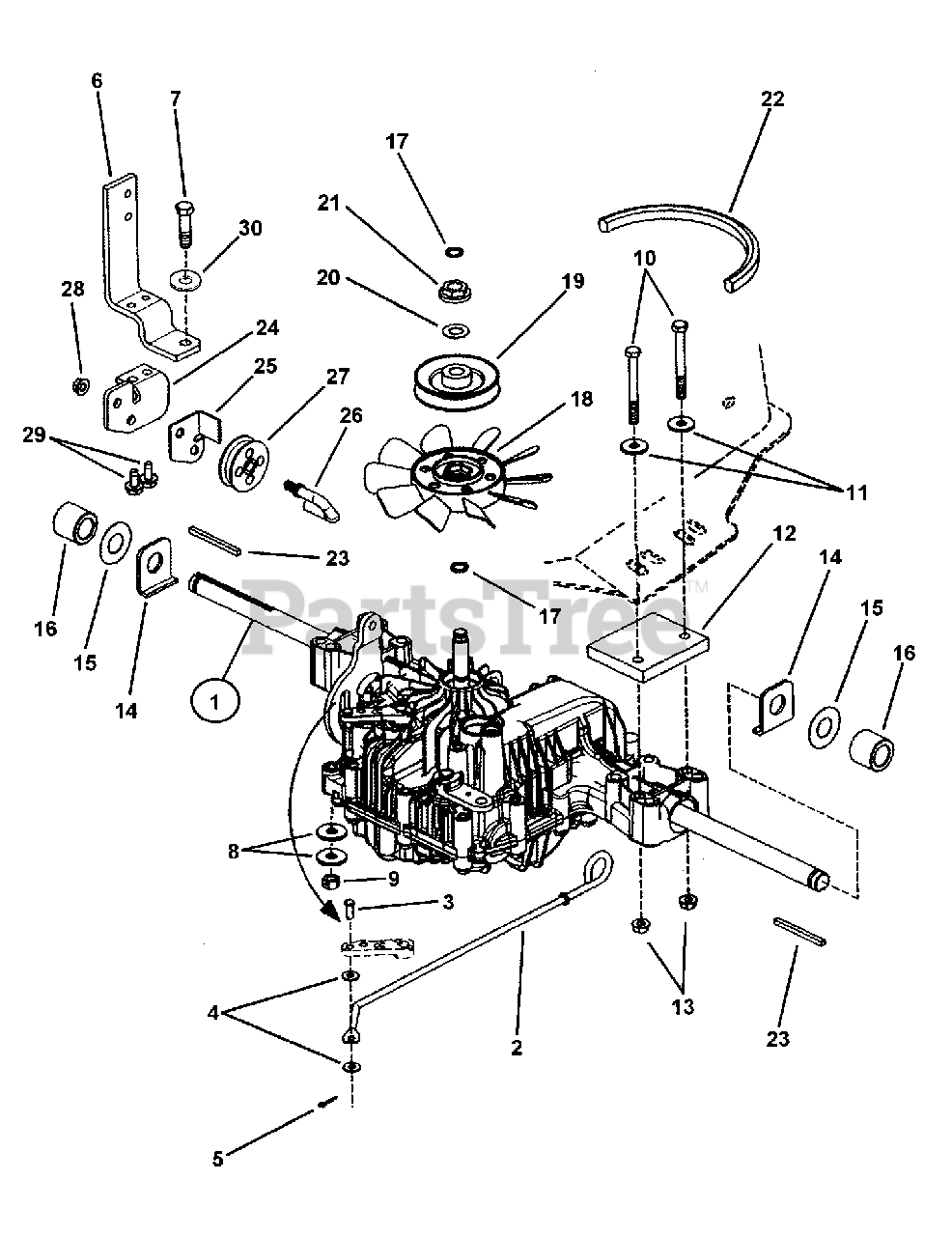

TRANSMISSION GROUP (Hydro Drive) Parts Diagram

  • Title

1

Snapper 7074398

ASSEMBLY, Transaxle-Tuff Torq, hand control K46 Hydro
(Superseded to 7074398YP)

$1481.99

$

Usually ships in 2-12 days

0

2

Snapper 7072387

ROD, Roll Release- K46
(Superseded to 7072387YP)

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 7091708

PIN, 1/4 x 5/8" Clevis
(Superseded to 7091708YP)

$5.99

$

Usually ships in 2-12 days

0

4

Snapper 7091294

WASHER, 1/4 x 5/8 x 1/16" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7091597

PIN, 3/32 x 1/2" Cotter
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7072601

BRACKET, Torque/Spool- TTK46
(Superseded to 7072601YP)

$45.99

$

Usually ships in 2-12 days

0

7

Snapper 7027174

SCREW, 5/16-18 x 2" Hex Head Cap, GR5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

8

Snapper 7090188

WASHER, 5/16 x 11/16 x 1/16" Flat, GR5
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7091298

NUT, 5/16-18-3B Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7091830

SCREW, 5/16-18 x 3" Hex Head Cap, GR5
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7091675

WASHER, .34 x 1.0 x .09 Flat
(Superseded to 7091675YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7073613

SPACER, Hydro Axle- Steel- K46

$

$

Not available

13

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7072884

WASHER, Axle- TT K46 Hydro
(Superseded to 7072884YP)

$8.49

$

Usually ships in 2-12 days

0

15

Snapper 7031036

THRUST WASHER
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7072385

SPACER, Axle- K46

$

$

Not available

17

Snapper 7073757

SNAP RING, Special (Kanzaki # 192154-89090) 1
(Superseded to 7073757YP)

$4.99

$

In Stock, Qty 6

0

18

Snapper 7073753

FAN (Vendor # 1A640-83050)
(Superseded to 7073753YP)

$53.99

$

In Stock, Qty 11

0

19

Snapper 7073800

PULLEY, 4" Diameter (Vendor # 1A6460-25333)
(Superseded to 7073800YP)

$75.99

$

In Stock, only 3 left!

0

19A

Snapper 7073748

PULLEY, C (Kanzaki P/N 1A6460-25333)
(Superseded to 7073748YP)

Note: used on ELT150H33IBV

$69.99

$

Usually ships in 2-12 days

0

20

Snapper 7073754

WASHER, Wave (Vendor # 1A6460-83060)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7073747

SPACER (Vendor # 1A6460-25300)
(Superseded to 7073747YP)

$13.99

$

In Stock, only 1 left!

0

22

Snapper 7072657

BELT, Traction Drive (HA Section, 97.881" Effective Length)
(Superseded to 7072657YP)

Note: used on Series "H" & ELT150H33IBV

$64.99

$

In Stock, only 3 left!

0

22

Snapper 7073834

BELT, Traction Drive (HA Section, 96.60" Effective Length)
(Superseded to 7073834YP)

Note: used on LT150H33IBV, LT150H38IBV and WLT150H38IBV Models

$64.99

$

Usually ships in 2-12 days

0

23

Snapper 7072386

KEY, 3/16" Square x 2-3/16" long
(Superseded to 7072386YP)

$5.49

$

In Stock, only 1 left!

0

24

Snapper 7072607

BRACKET, Spool

$

$

Not available

25

Snapper 7034399

GUIDE, Cable
(Superseded to 7034399YP)

$19.99

$

Usually ships in 2-12 days

0

26

Snapper 7029600

ROD, Spool Pivot
(Superseded to 7029600YP)

$16.99

$

Usually ships in 2-12 days

0

27

Snapper 7023182

SPOOL
(Superseded to 7023182YP)

$8.49

$

In Stock, only 1 left!

0

28

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

29

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

30

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0
