WLT 170H38IBV (84925) - Snapper 38" Lawn Tractor, 17hp 38" CUTTING DECK, BELTS, BRAKES PT.1 Parts Diagram

38" Lawn Tractor, 17hp

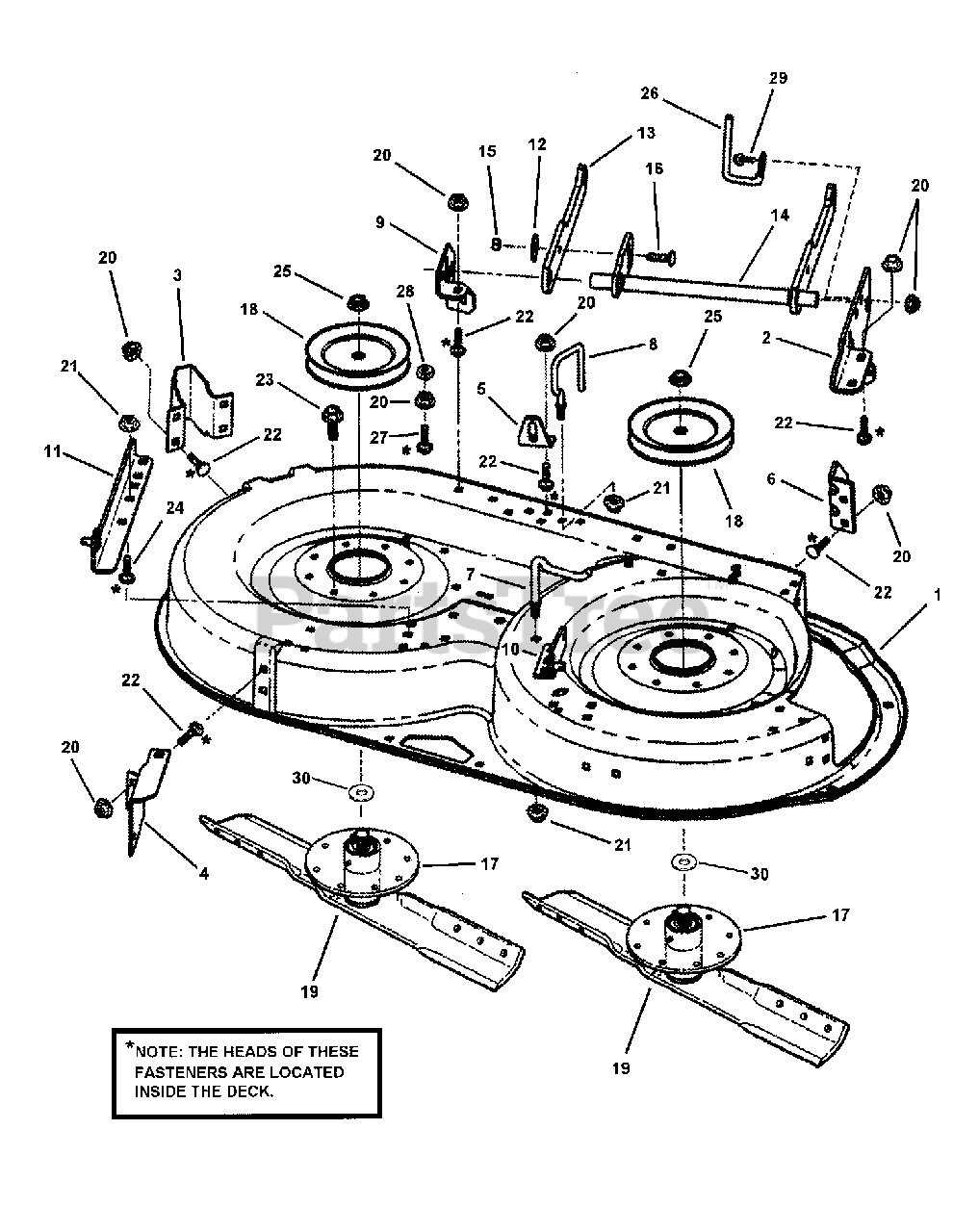

38" CUTTING DECK, BELTS, BRAKES PT.1 Parts Diagram

  • Title

1

Snapper 7061960

DECK, 38" Cutting

$

$

Not available

2

Snapper 7028365

BRACKET, Front Linkage
(Superseded to 7028365YP)

$27.99

$

In Stock, only 1 left!

0

3

Snapper 7033756

BRACKET, L.H. Front Gage Wheel
(Superseded to 7033756SM)

$19.99

$

In Stock, only 1 left!

0

4

Snapper 7033891

BRACKET, L.H. Rear Wheel
(Superseded to 7033891YP)

$21.99

$

Usually ships in 2-12 days

0

5

Snapper 7034875

ANGLE, Front
(Superseded to 7034875YP)

$20.99

$

Usually ships in 2-12 days

0

6

Snapper 7035494

BRACKET, R.H. Front Gage Wheel
(Superseded to 7035494BMYP)

$41.99

$

Usually ships in 2-12 days

0

7

Snapper 7035505

CRADLE, Spring

$

$

Not available

8

Snapper 7035506

GUIDE, Belt Dual Spindle Brake
(Superseded to 7035506YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7035577

BRACKET, Front Lift Arm- LS
(Superseded to 7035577YP)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 7042578

BRACKET, Sector Lift R.H. Rear

$

$

Not available

11

Snapper 7042606

BRACKET, Sector Lift L.H. Rear
(Superseded to 7042606YP)

$42.99

$

Usually ships in 2-12 days

0

12

Snapper 7012063

WASHER, Cone, 13/32 x 1-13/32" Diameter
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

13

Snapper 7035603

FRONT LIFT ARM, 38" Deck

$

$

Not available

14

Snapper 7042602

WELDMENT, Front Lift Arm
(Superseded to 7042602YP)

$83.99

$

Usually ships in 2-12 days

0

15

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7091169

BOLT, 5/16-18 x 1-1/8" Short Neck Carriage, GR5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7063198

ASSEMBLY, 38" Spindle
(Superseded to 7063198SM)

Note: Was 59377 or 58357

$286.99

$

Usually ships in 2-12 days

0

18

Snapper 7027792

PULLEY, 5-1/2" Dia. A/B V (Spindle)
(Superseded to 1732354SM)

$30.99

$

In Stock, only 1 left!

0

19

Snapper 7042998

BLADE, 38" Cutting Deck, 19.64" Long
(Superseded to 7042998BZYP)

Note: per spindle assembly

$27.99

$

In Stock, Qty 20+

0

20

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

21

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

22

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, GR5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7090815

BOLT, 3/8-16 x 3/4" Hex Washer Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

24

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Neck Carriage, GR5
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7091006

NUT, 5/8-18 Hex Nyloc
(Superseded to 7091006SM)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 7036563

GUIDE, Belt Side Rail
(Superseded to 7036563YP)

$15.99

$

Usually ships in 2-12 days

0

27

Snapper 7091169

BOLT, 5/16-18 x 1-1/8" Short Neck Carriage, GR5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR5 or B
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7072440

SPACER, Pulley, 1.755" OD, .655" ID, .280" Thick
(Superseded to 7072440SM)

$9.49

$

In Stock, Qty 19

0
