WLT 160H42HBV (84728) - Snapper 42" Lawn Tractor, 16hp ENGINE COMPONENTS, PT.1 (Model LT160H42HBV) Parts Diagram

42" Lawn Tractor, 16hp

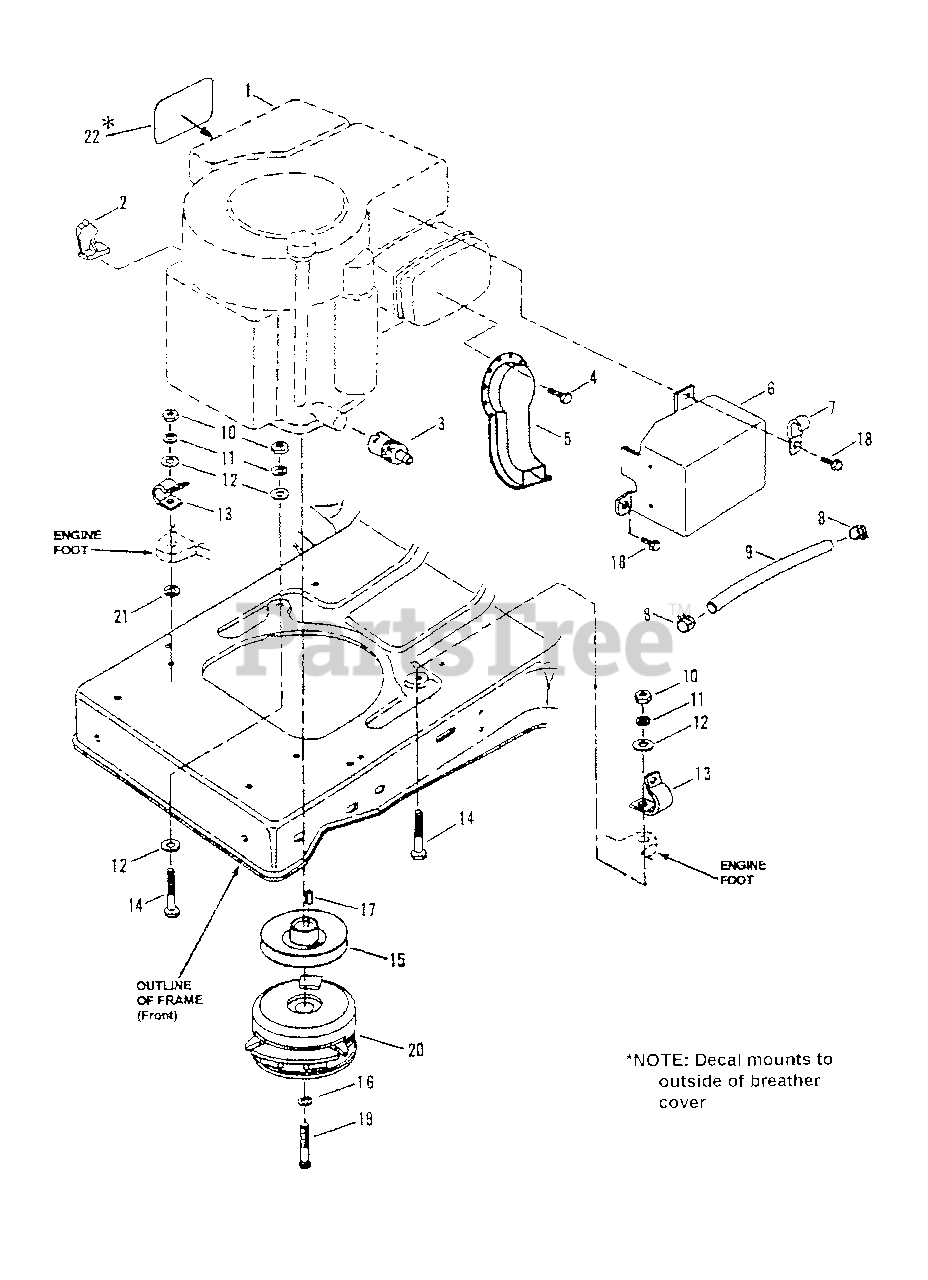

ENGINE COMPONENTS, PT.1 (Model LT160H42HBV) Parts Diagram

  • Title

1

* ENGINE, B&S 16 HP OHV, Mod. 28Q777-0679-E1

$

$

Not available

2

Snapper 7025079

CLIP, Speed (250 RPM Briggs)

$

$

Currently unavailable

3

Snapper 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 9

0

4

Snapper 7091581

SCREW, #8-18 x 1/2" Hex Head Sheet Metal
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7041537

WELDMENT, Muffler Deflrctor
(Superseded to 7041537YP)

$82.99

$

Usually ships in 2-12 days

0

6

Snapper 7041269

HEAT SHIELD, Muffler (weldment)

$

$

Not available

7

Snapper 7026482

CLIP, "J" Open Type .4 Bundle Dia., .281 Dia. Hole
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

8

Snapper 7029900

CLAMP, .490 x .31
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7029982

FUEL LINE, 14" long
(Superseded to 7029982SM)

Note: used on Series "H" Models

$7.49

$

Usually ships in 2-12 days

0

9

Snapper 7032956

FUEL LINE, 10" long
(Superseded to 7032956YP)

Note: used on Series "I" Models

$

$

Not available

10

Snapper 7091511

NUT, 5/16-18 Hex, GR5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7015861

HARNESS CLIP, Cushioned
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7090669

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR5
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

15

Snapper 7073799

PULLEY, Traction Drive
(Superseded to 7073799YP)

$98.99

$

Usually ships in 2-12 days

0

16

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7016755

KEY, 1/4 Square x 3/4"
(Superseded to 7016755YP)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7091579

SCREW, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7091579SM)

$3.99

$

In Stock, only 2 left!

0

19

Snapper 7091703

SCREW, 7/16-20 x 2-1/2" (Special), GR5
(Superseded to 7091703SM)

$7.99

$

Usually ships in 2-12 days

0

20

Snapper 7053740

CLUTCH/BRAKE

$

$

Not available

21

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7073231

DECAL, Warning-Speed Setting 14, 16, & 18 HP ENGINES

$

$

Not available
