WLT 150H38IBV (84902) - Snapper 38" Lawn Tractor, 15hp SPINDLE- 38" CUTTING DECK Parts Diagram
38" Lawn Tractor, 15hp

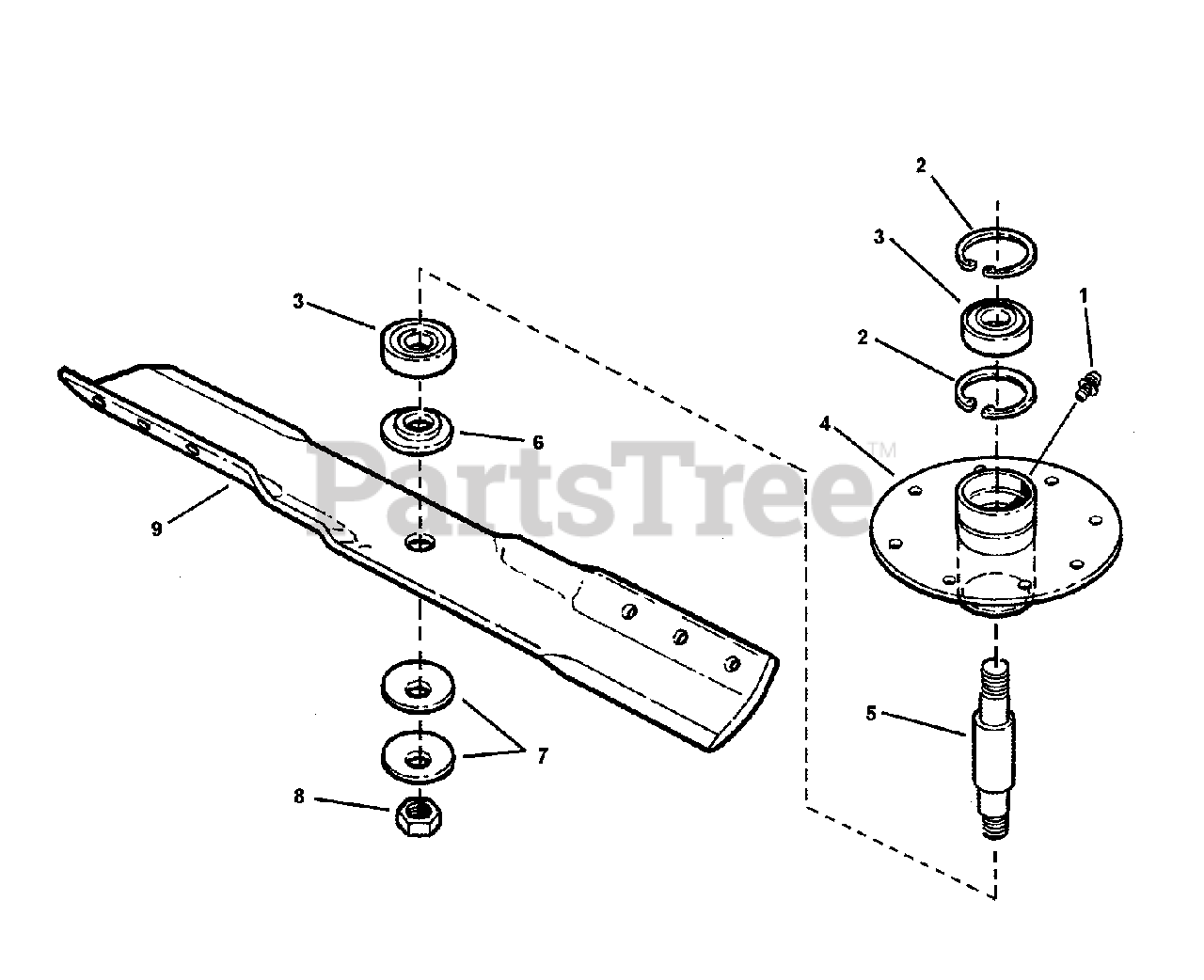

SPINDLE- 38" CUTTING DECK Parts Diagram
Snapper 7063198
ASSEMBLY, Spindle Housing, 38" Cutting Deck (Includes items 2 thru 9)
(Superseded to 7063198SM)
Note: Was 59377
$286.99
$
Usually ships in 2-12 days
Snapper 7010817
FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)
Note: per spindle assembly
$4.49
$
In Stock, Qty 20+
$4.49
$
In Stock, Qty 20+
$11.99
$
In Stock, Qty 20+
Snapper 7063199
WELDMENT, Spindle Housing
(Superseded to 7063199YP)
Note: Was 58356, per spindle assembly
$
$
Not available
$43.99
$
In Stock, Qty 20+
$5.99
$
In Stock, only 1 left!
Snapper 7024467
WASHER, Belleville, 19/32" I.D. x 1-3/4" O.D.
(Superseded to 7024467SM)
Note: per spindle assembly
$4.49
$
In Stock, Qty 20+
$4.99
$
In Stock, Qty 20+
$27.99
$
In Stock, Qty 20+
