WLT 150H38IBV (84902) - Snapper 38" Lawn Tractor, 15hp ENGINE COMPONENTS Parts Diagram

38" Lawn Tractor, 15hp

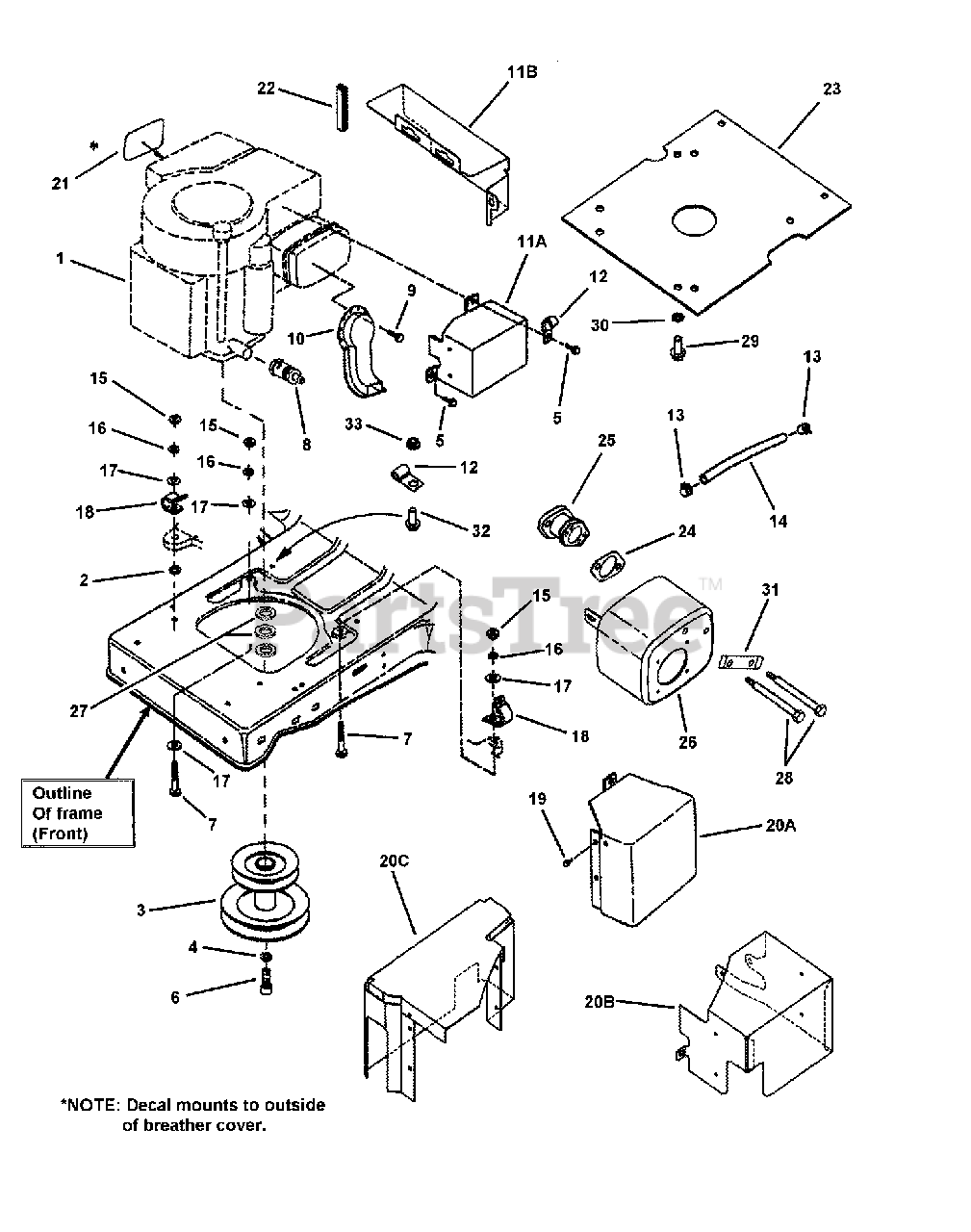

ENGINE COMPONENTS Parts Diagram

  • Title

1

* ENGINE, B&S, 14.5 HP Mod. 287707-1250-E1

$

$

Not available

1

* ENGINE, Kohler, 15 HP Mod. CVS15S-PS41603

$

$

Not available

1

* ENGINE, B&S, 15 HP Med. 281H07-0111-E1

$

$

Not available

1

* ENGINE, B&S, 17 HP Mod. 281H07-0112-E1

$

$

Not available

1

* ENGINE, B&S, 18 HP Mod. 31H777-0117-E1

$

$

Not available

1

* ENGINE, B&S, 18 HP Mod. 31H777-0120-E1

$

$

Not available

2

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7072905

ASSEMBLY, Engine Pulley
(Superseded to 7072905YP)

Note: used on 33" Deck Euro Models

$142.99

$

Usually ships in 2-12 days

0

3

Snapper 7073803

ASSEMBLY, Engine Pulley
(Superseded to 7073803YP)

Note: used on 33" Deck Domestic Models

$109.99

$

Usually ships in 2-12 days

0

3

Snapper 7073804

ASSEMBLY, Engine Pulley

Note: used on 38" Deck Models

$

$

Not available

4

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7091579

SCREW, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7091579SM)

$3.99

$

In Stock, only 2 left!

0

6

Snapper 7091531

SCREW, 7/16-20 x 1" Socket Head Cap

$

$

Not available

7

Snapper 7090669

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 9

0

9

Snapper 7091581

SCREW, #8-18 x 1/2" Hex Head Sheet Metal
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7041537

WELDMENT, Muffler Deflector
(Superseded to 7041537YP)

$82.99

$

Usually ships in 2-12 days

0

11A

Snapper 7041269

HEAT SHIELD, Muffler (weldment)

Note: used on Series "H" Models

$

$

Not available

11B

Snapper 7075065

HEAT SHIELD, Muffler
(Superseded to 7075065YP)

Note: used on Series "I" Models

$27.99

$

Usually ships in 2-12 days

0

12

Snapper 7026482

CLIP, "J" Open Type .4 Bundle Dia., .281 Dia. Hole
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

13

Snapper 7029900

CLAMP, .490 x .31
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7029982

FUEL LINE, 14" long
(Superseded to 7029982SM)

Note: used on Series "H" Models

$7.49

$

Usually ships in 2-12 days

0

14

Snapper 7032956

FUEL LINE, 10" long
(Superseded to 7032956YP)

Note: used on some Series "I" Models

$

$

Not available

14

Snapper 7075472

FUEL LINE, 29" long

Note: used on some Series "I" Models

$

$

Not available

15

Snapper 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

18

Snapper 7015861

HARNESS CLIP, Cushioned
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tap, GR 5
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

20A

Snapper 7041677

HEAT SHIELD, Muffler
(Superseded to 7041677YP)

Note: used on European Models

$103.99

$

Usually ships in 2-12 days

0

20B

Snapper 7041340

HEAT SHIELD, Muffler
(Superseded to 7041340YP)

Note: used on Domestic Models

$110.99

$

Usually ships in 2-12 days

0

20C

Snapper 7041639

HEAT SHIELD, Muffler
(Superseded to 7041639YP)

Note: used on 33" Deck Euro Models

$69.99

$

Usually ships in 2-12 days

0

21

Snapper 7073231

DECAL, Warning-Speed Setting 14, 16, & 18 HP ENGINES

$

$

Not available

22

Snapper 7075171

TRIM-Heat Shield 3" long

$

$

Currently unavailable

23

Snapper 7075070

PLATE, Engine- Briggs Engine
(Superseded to 7075070YP)

$34.99

$

Usually ships in 2-12 days

0

24

Snapper 7015352

GASKET, Exhaust (1.25" I.D.; 1.875" hole centers)
(Superseded to 7015352SM)

$5.49

$

In Stock, Qty 8

0

25

Snapper 7071756

ADAPTER, Muffler

$

$

Not available

26

Snapper 7074826

MUFFLER, 14.5HP Briggs Engine
(Superseded to 7074826YP)

$111.99

$

Usually ships in 2-12 days

0

27

Snapper 7091628

WASHER, .64 x .99 x .05 Flat
(Superseded to 7091628SM)

Note: used on Series "I" Models

$4.49

$

In Stock, only 3 left!

0

28

Snapper 7024161

SHOULDER BOLT, 5/16-18 thread x 4"
(Superseded to 691416)

$11.99

$

In Stock, Qty 14

0

29

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

30

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

31

Snapper 7024566

SCREW LOCK
(Superseded to 691178)

$5.49

$

In Stock, Qty 9

0

32

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 703823)

Note: Was 91510

$3.99

$

In Stock, Qty 5

0

33

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
