WLT 145H38GBV (84657) - Snapper 38" Lawn Tractor, 14.5hp Spindle - 38" Cutting Deck Parts Diagram

38" Lawn Tractor, 14.5hp

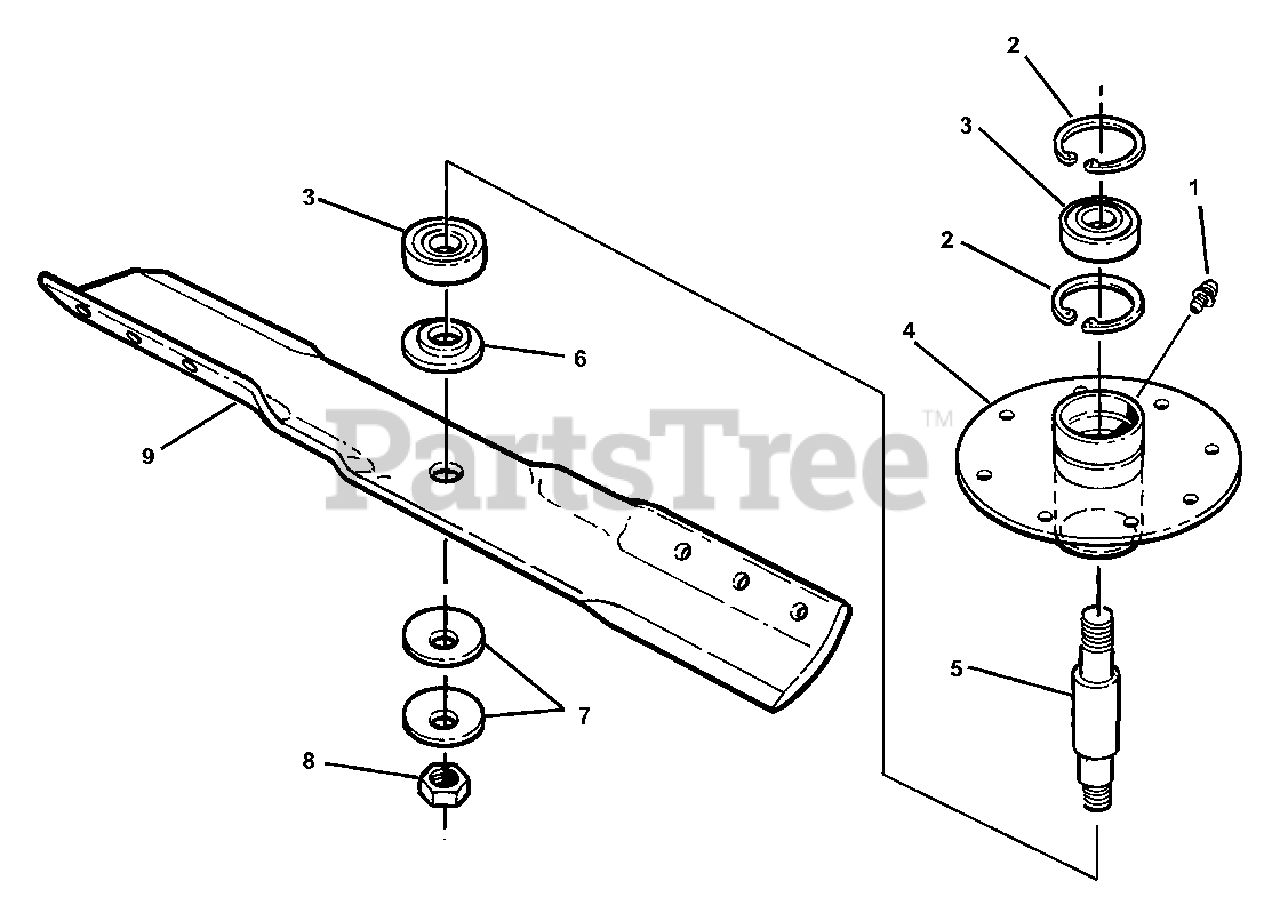

Spindle - 38" Cutting Deck Parts Diagram

  • Title

Snapper 7063198

ASSEMBLY, Spindle Housing, 38" Cutting Deck
(Superseded to 7063198SM)

Note: Was 58357 (Includes items 2 thru 9)

$286.99

$

Usually ships in 2-12 days

0

1

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7063199

HOUSING, Spindle
(Superseded to 7063199YP)

Note: Was 58356

$

$

Not available

5

Snapper 7072537

SHAFT, Spindle (7.181" overall length)
(Superseded to 7072537SM)

$43.99

$

In Stock, Qty 20+

0

6

Snapper 7072109

WASHER, Spindle
(Superseded to 7072109SM)

$5.99

$

In Stock, only 1 left!

0

7

Snapper 7024467

WASHER, Belleville, 19/32" I.D. x 1-3/4" O.D.
(Superseded to 7024467SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7091633

NUT, 9/16-18 Hex Jam
(Superseded to 7091633SM)

$4.99

$

In Stock, Qty 20+

0

9

Snapper 7042998

BLADE, 19"
(Superseded to 7042998BZYP)

$27.99

$

In Stock, Qty 20+

0
